Fitting Fusion tap
B
2
1
3
2
4

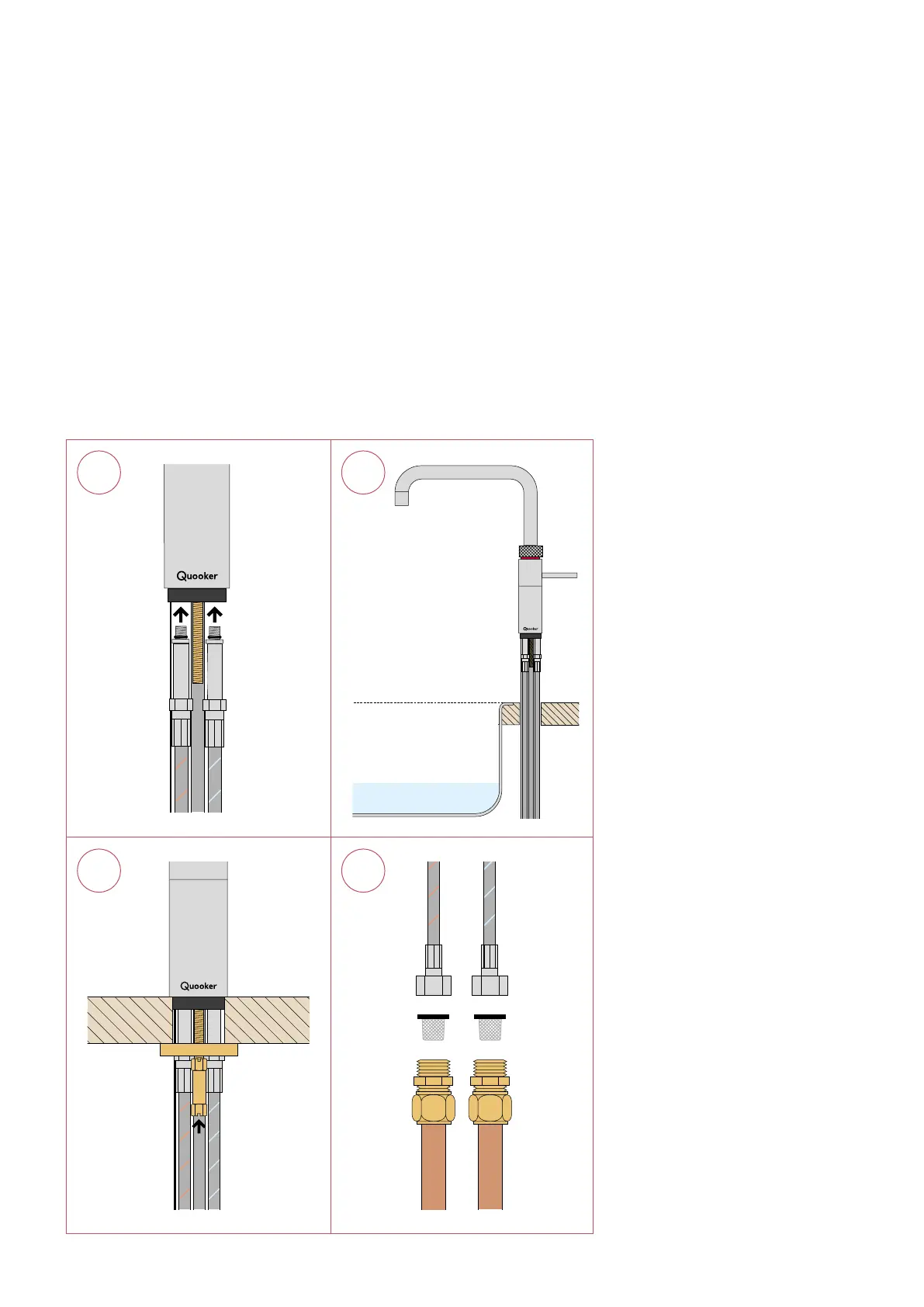

1. Mount the hoses
Mount the hot water and cold water hoses
on the tap.
2. Tap through work top
Push the tap through the hole in the
work top.
3. Securing tap
Position the brass xing plate around the
hoses. Screw the xing nut onto the tap
thread. Adjust the position of the tap to
ensure that the Quooker logo is facing
the user. When the handle is in the cold
position, it will be parallel to the edge of
the work top. Tighten the xing nut with a
pipe wrench, socket wrench or spanner.
4. Connecting hoses
Insert the inlet hose screens and connect
the hot and cold water inlet hoses to the
mains.
If necessary
When tting to a thin work top, use the
white tap support underneath the brass
xing plate.
