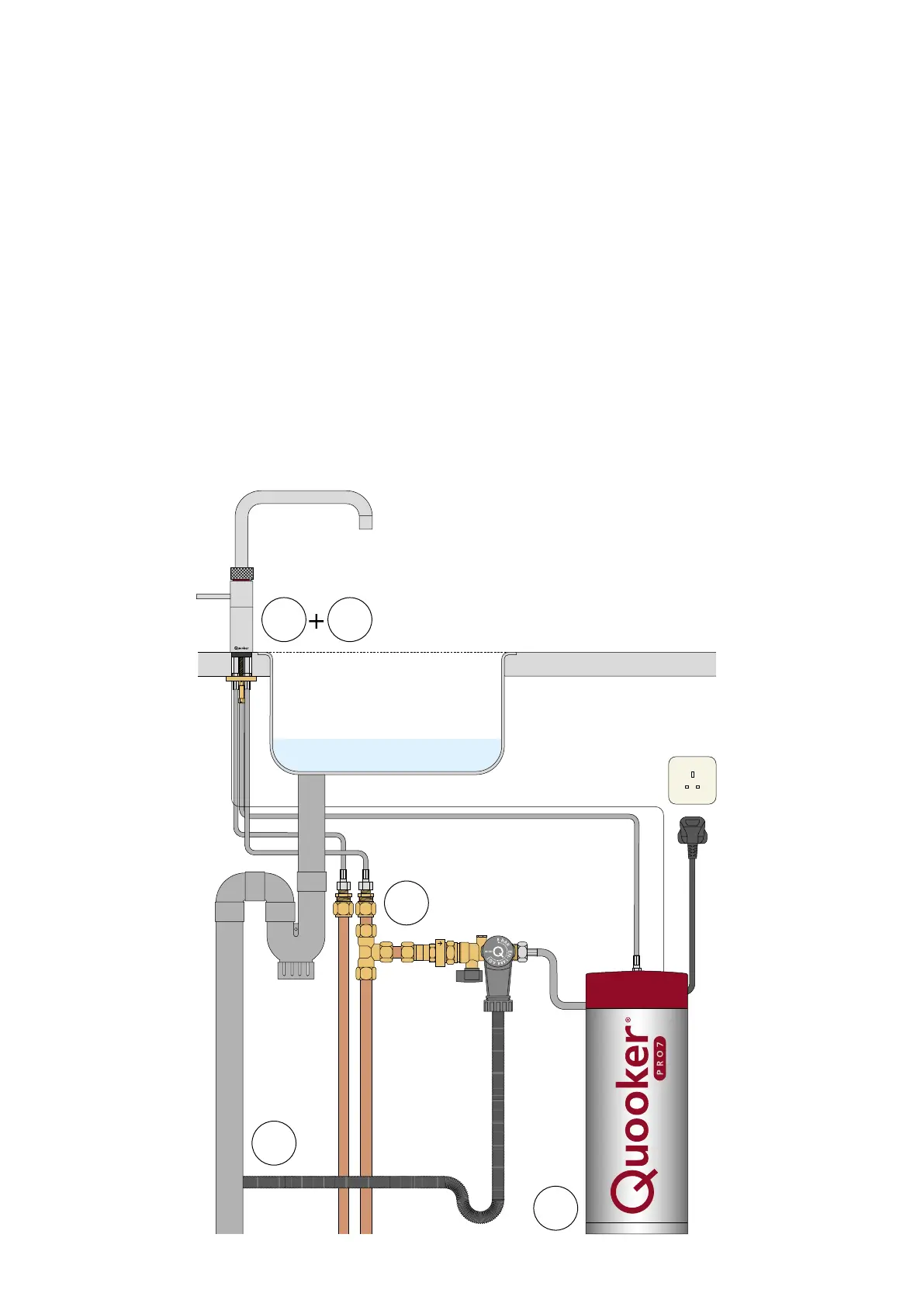

Overview of Fusion tap installation
It is recommended that you install the Quooker in the following order:
A. Drilling hole
B2. Fitting Fusion tap
C. Connecting water
D. Connecting waste
E. Connecting tank
Note: Bear in mind that the tank, inlet combination and socket must remain accessible for
servicing.
For an overview of the Flex tap installation, please refer to the next page.
