While multiple fixtures may be
wired to a single sensor,
multiple sensors should not be
wired together, as problems
become difficult to troubleshoot.
Single sensors that control
their own lights will give a more
accurate location of movement
and trouble-free operation.
To handle loads greater than
1,000 watts, a qualified
electrician should install a relay.
Multiple Fixtures
Power Quality
It is not recommended to install sensors on a circuit that also feeds motor
loads such as HVAC equipment, kitchen appliances, or garage door openers.
The Gotcha circuit is surge and transient protected to IEC specifications.
However, if voltage varies significantly from 120 volts, sensor will malfunction.
Basic Kit Wiring

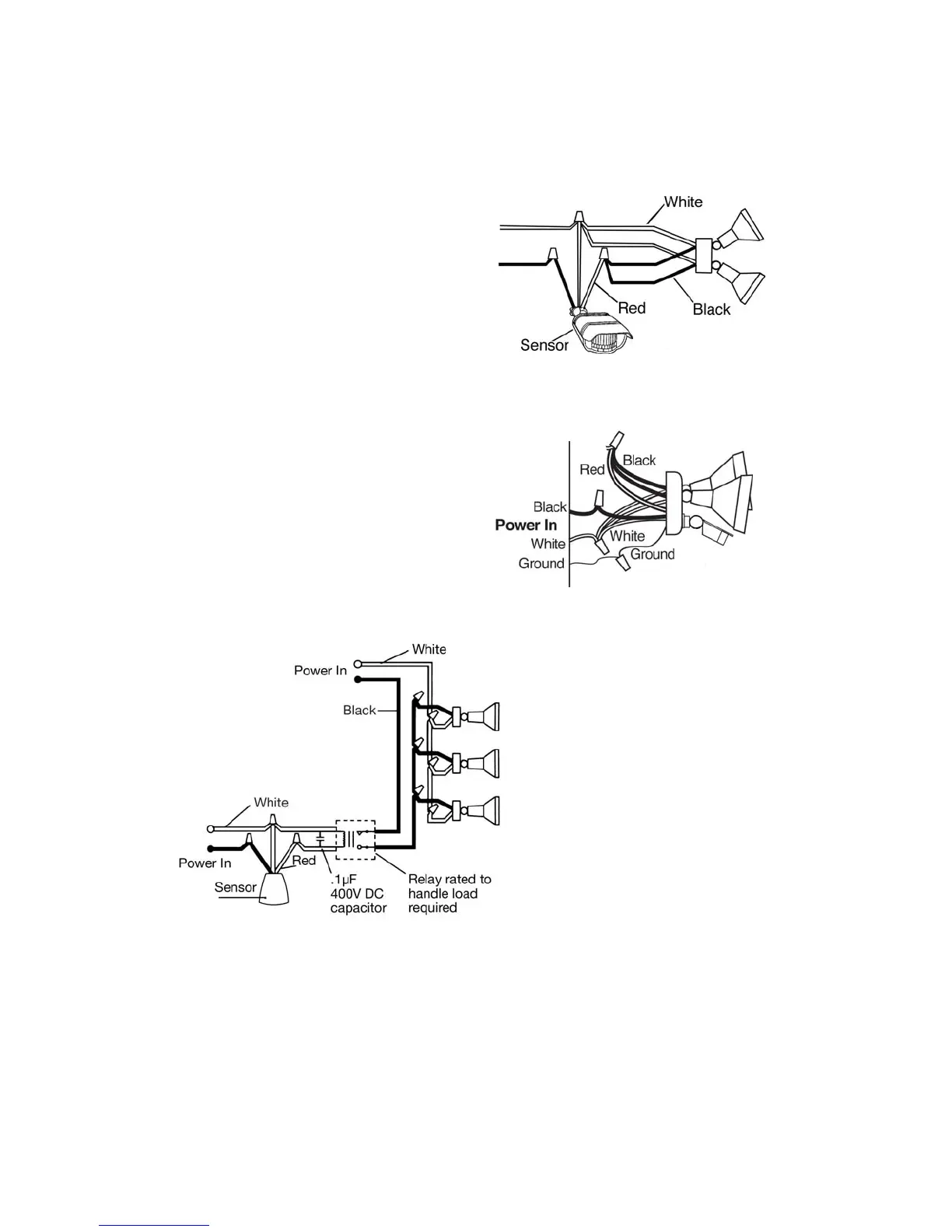

Basic Wiring Diagram
Wiring Diagrams
