3. USE
USER

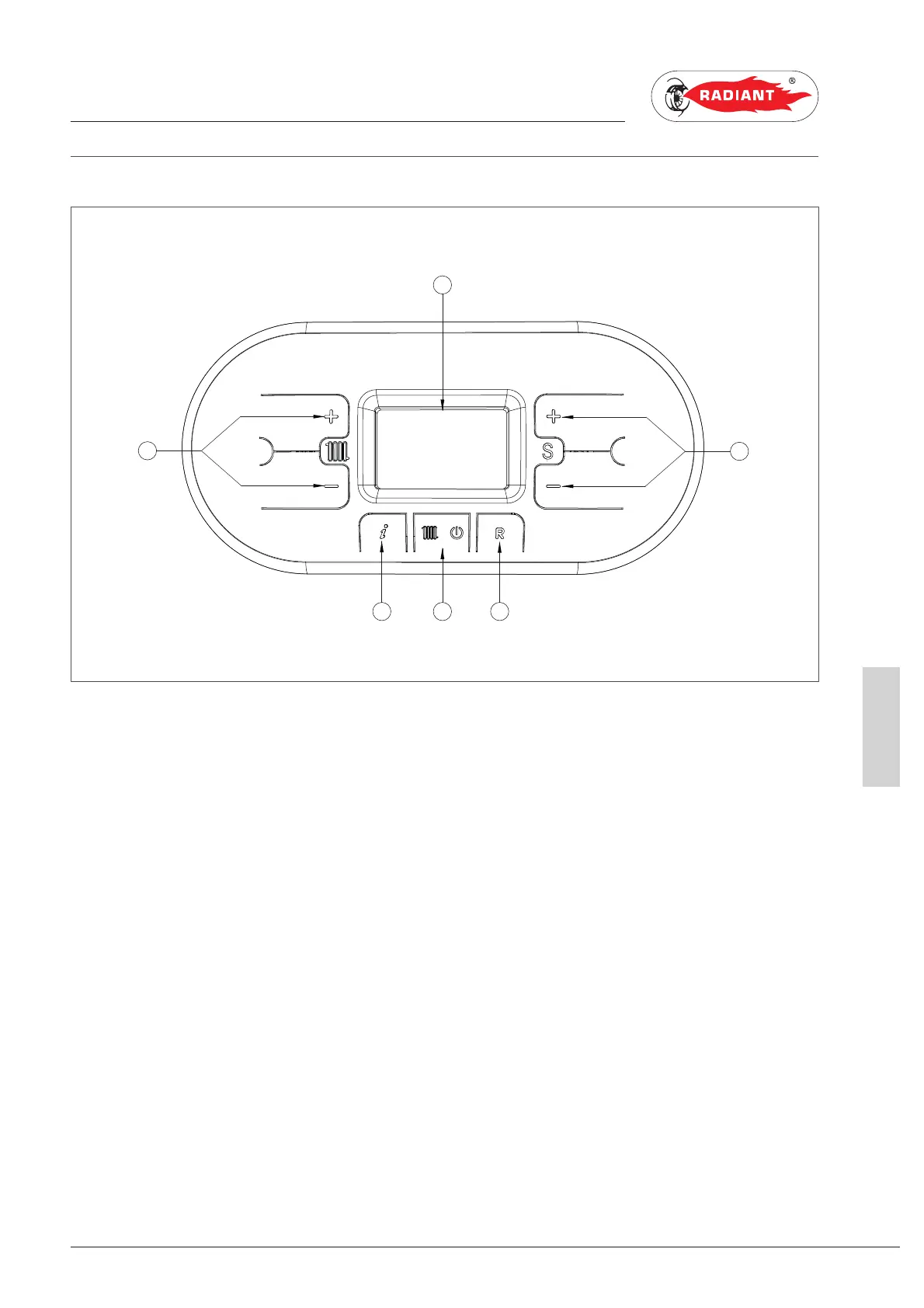

1.1.2. CONTROL PANEL
KEY
1. HEATING TEMPERATURE ADJUSTMENT KEYS
2. INFO KEY: PRESS ONCE TO VIEW THE
TEMPERATURES AND OTHER INFORMATION
(see chapter ‘INFO MENU DISPLAY) - HOLD
FOR 5 SECONDS, IN OFF OPERATING MODE,
TO VIEW THE LAST 5 FAULTS
3. OPERATING MODE SELECTION KEY: ONLY
HEATING / OFF
4. RESET KEY: FAULTS RESET - CHIMNEY
SWEEP FUNCTION ACTIVATION (HOLD FOR 7
SECONDS)
5. VALUE OF THE PARAMETERS ADJUSTMENT
KEY / HOLD THE KEYS AT THE SAME TIME
FOR 5 SECONDS TO ACTIVATE DISPLAY BACK
LIGHT FOR 10 MINUTES
6. DISPLAY
5
1
6
2 3 4
