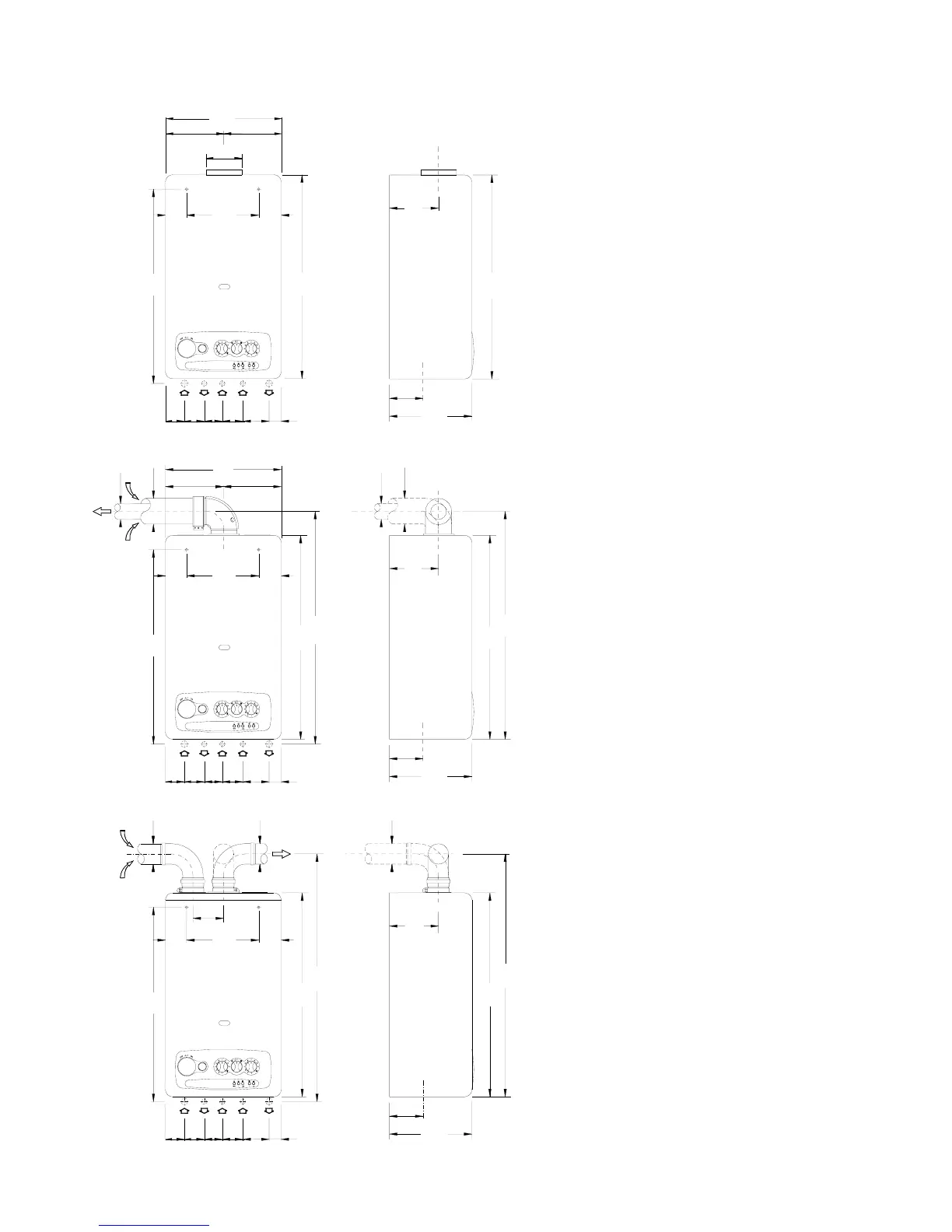

OVERALL DIMENSIONS - EXHAUST FLUE SYSTEM
TYPE C WALL-MOUNTED BOILERS
SEALED COMBUSTION CIRCUIT:
Kit A.
Horizontal coaxial exhaust flue system with 360°
rotation.
It allows the flue exhaust and the air intake directly to
an external wall. .
N.B.: To insert a bend in the flue, reduce total flue
length by 0.8 m.
Kit B.
Double exhaust/emission twin flue system with
360° rotation.
It allows the flue exhaust into a flue duct and the air
intake directly from an external wall.
N.B.: To insert a bend in the flue, reduce total flue
length by 1.5 m.
R RETURN ¾”
C HOT WATER 1/2"
G GAS 1/2"
F COLD WATER 1/2"
A HEATING FLOW ¾”
NOTE: USE ORIGINAL RADIANT APPROVED FLUE KIT
SYSTEMS, FLUE ACCESSORIES AND FLUE
DIAPHRAGMS ONLY. APPROVED RADIANT FLUE
DIAPHRAGMS AND ADJUSTMENT TABLES ARE
SUPPLIED WITH RADIANT ORIGINAL FLUE KIT
SYSTEMS.
