INSTALLATION INSTRUCTIONS
22

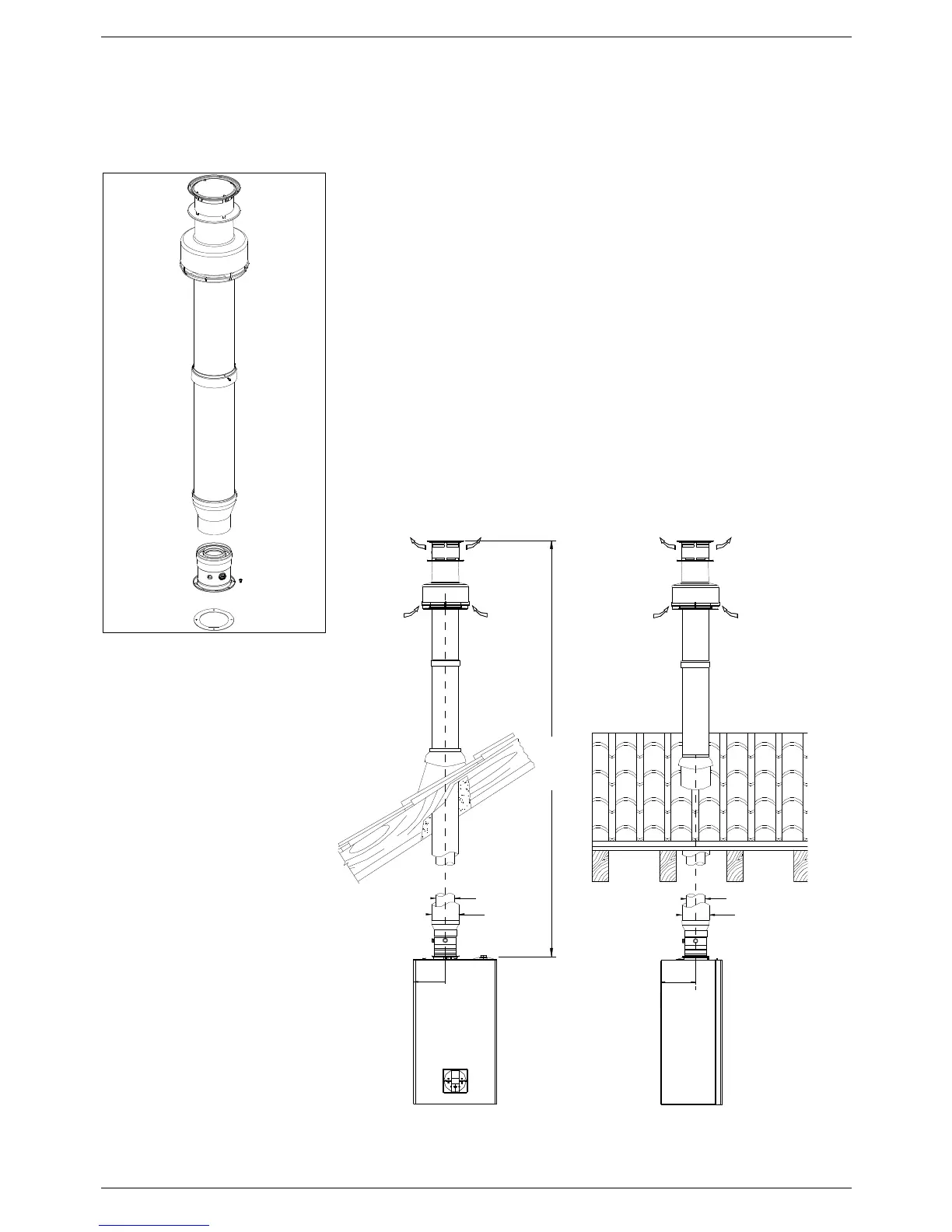

Flue type - kit C2
Vertical concentric flue kit Ø80/125.
Discharges exhaust fumes and draws air directly from high Level.
Discharges exhaust gases and draws combustion air at roof level by means of two
concentric ducts. The external Ø125 duct draws the combustion air while the Ø80 duct
discharges the exhaust fumes.
MAXIMUM FLUE LENGTH: 6 m
The
maximum
flue length (linear equivalent) is obtained by summing the length
of linear pipe and the equivalent lengths of each bend fitted.
The linear equivalent is intended as being the total length of the duct from the
connection with the combustion chamber of the appliance, excluding the first bend.
The linear equivalent of additional bends is as follows:
Ø80/ 125 x 90° = 0.8 m
Ø80/125 x 45° = 0.5 m
N.B.
: USE ONLY RADIANT TYPE-APPROVED FLUE SYSTEMS FOR DISCHARGING
EXHAUST GASES AND DRAWING COMBUSTION AIR.
Ø125
Ø80
max. 3 m
Ø80
Ø125
190
187
