INSTALLATION INSTRUCTIONS
23
Adjustable Flue Diaphragms
•
Coaxial flue kit system (horizontal-coaxial or vertical-coaxial)
Adjustable flue diaphragms have to be installed on the top of boiler.

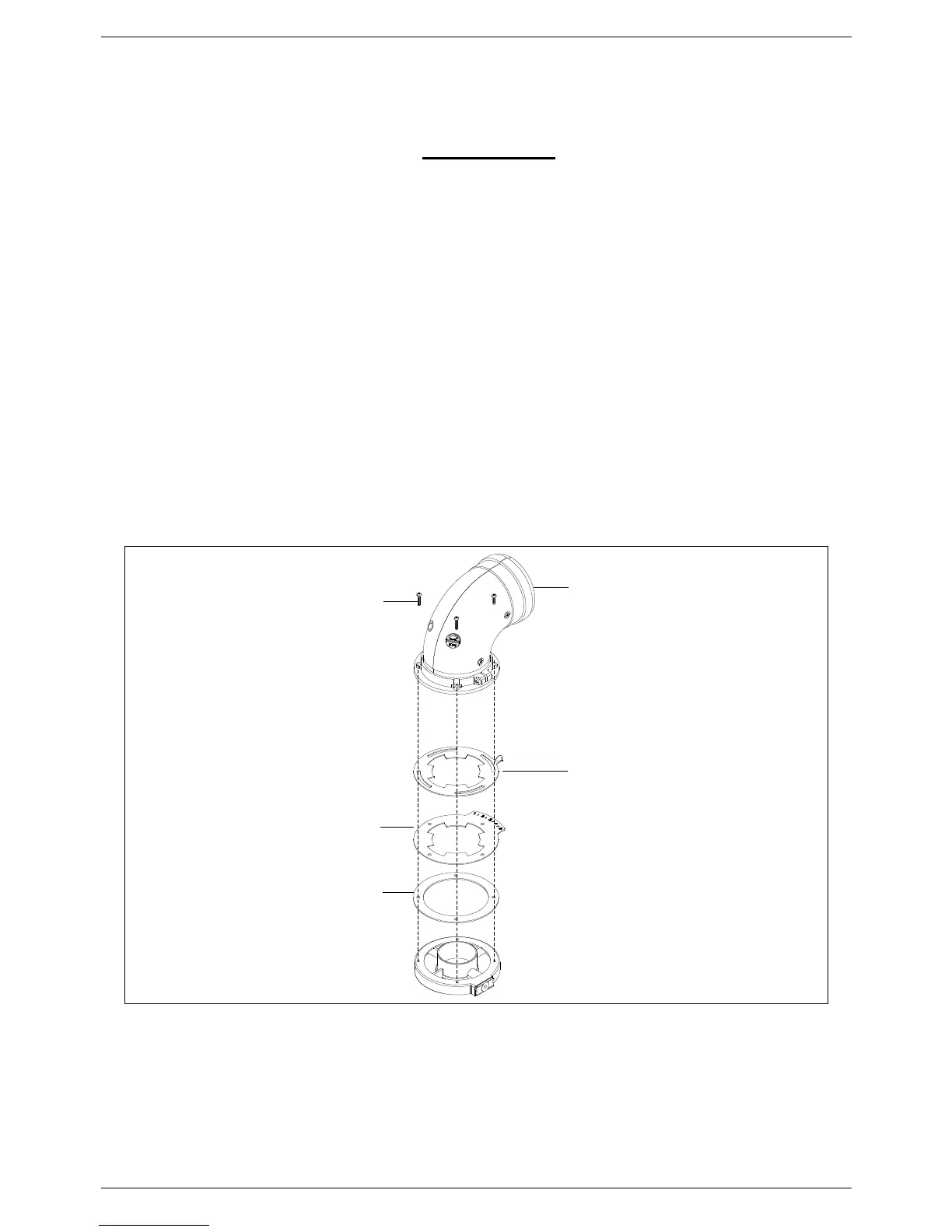

Installation Instructions: (see fig. 1):
−
Clean the inspection collar surface;
−
Stick the neoprene washer paying attention to centre holes of the washer with those on the inspection collar;
−
Position flue diaphragms respecting this order: lower disc first with graduated numbers then the upper disc;
−
Fix the flange to the flue elbow using the screw and nut provided with the flue kit;
−
Install the Ø60 aluminium collar onto the flue elbow and when it is fully assembled (i.e. flange+ aluminium
collar), install it on the flue outlet. Do not push it too strongly to avoid the elbow flange sliding up.
−
Fix the system with self tapping screws provided with the flue kit;
−
Complete the flue kit installation;
Important! Make the final tightening of screws only after the diaphragms have been set.
UPPER DISK FOR ADJUSTMENT
LOWER DISK FOR ADJUSTMENT
NEOPRENE SEALING
GASKET
90° FLUE BEND
FIXING SCREW
Fig. 1
