Radiant RSA 24 /8 User Manual

MAINTENANCE INSTRUCTIONS
42

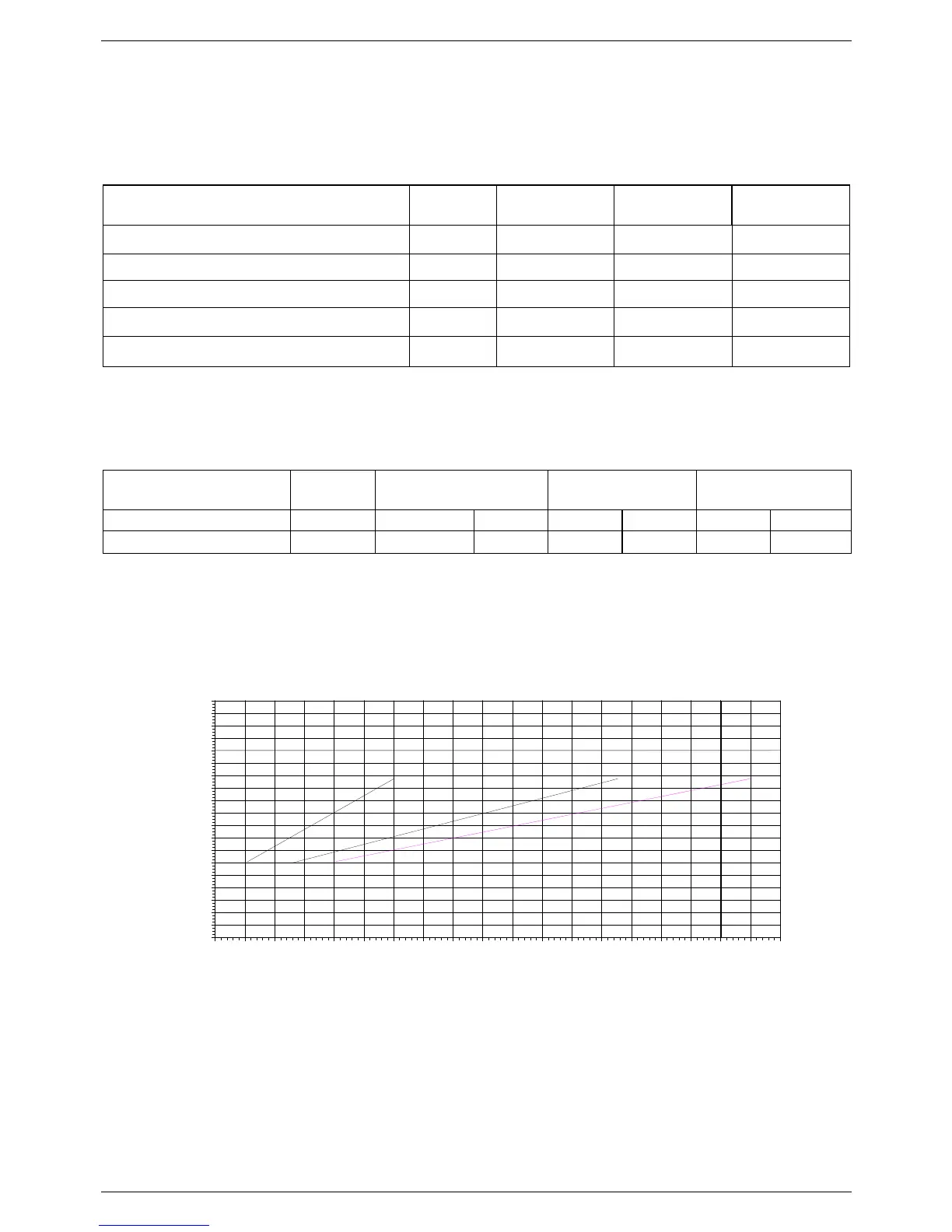

5.5 Gas Data
Technical data tables
Natural Gas
G20
Liquid Butane
Gas G30
Liquid Propane
Gas G31
Lower Wobbe index (15°C; 1013 mbar) MJ/Nm
3
45.67 80.58 70.69
Nominal supply pressure mbar 20 30 37
Main burner jets:
n° x Ø (mm)
11 x 1.30 15 x 0.78 15 x 0.78
Consumption
(15°C; 1013 mbar)
m
3
/h 2.71 - -
Consumption
(15°C; 1013 mbar)
kg/h - 2.02 1.99
Gas pressure adjustment table
5.6 Heating output maximum pressure diagram
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 35 36
G 20
G 30
G 31
Gas pressure in mbar
Output capacity in kW
Natural Gas G20
Liquid Butane Gas
G30
Liquid Propane Gas
G31
min max min max min max
Boiler Power Rating
mbar 2.3 12.1 5.3 27.1 8 35

Radiant RSA 24 /8 Specifications

General

Brand	Radiant
Model	RSA 24 /8
Category	Boiler
Language	English
