Installation Manual
Floor standing storage boiler – Cod. 99949NA – November 2002
25

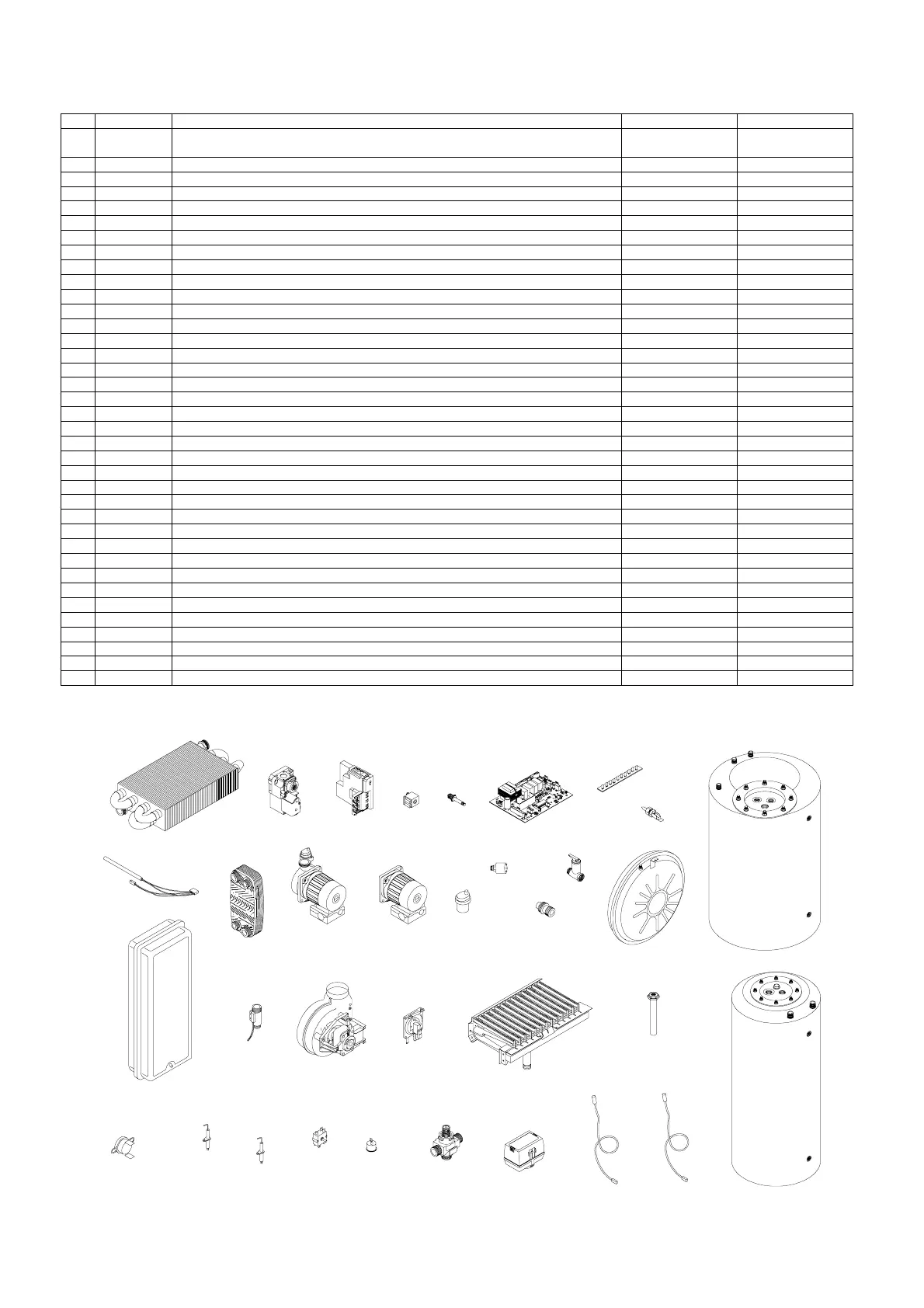

SPARE PARTS SHORT LIST
n° CODE DESCRIPTION RBA CS 24 E RBA CS 100 E
Electronic
Ignition
Electronic
Ignition
1 58007LP MAIN HEAT EXCHANGER mod. 24.000
2 36064LA ELECTRONIC GAS VALVE VK4105 A 1035B
3 76616LA ELECTRONIC IGNITION BOARD S4565 A 2019B
4 18003LA MODULATING COIL
5 97007LA MODULATING UNIT
6 76623LA PRINTED CIRCUIT BOARD RAMIRE 3 SM 20012
7 76622LA INDICATORS P.C.B. RAVI 2 CE
8 73507LA D.H.WATER – HEATING 1/8” SENSOR
9 31011LA D.H.W. – HEATING SENSOR WIRE
10 20038LA FLAT PLATE TYPE EXCHANGER
11 24027LA CIRCULATING PUMP GOLD 50V1 SHUL CLF6 W/ AIR VENT
12 24028LA CIRCULATING PUMP MOTOR 15/5
24029LA CIRCULATING PUMP MOTOR 15/6
13 96030LA AUTOMATIC AIR VENT VALVE 5020 3/8’’
14 59010LA WATER PRESSURE SWITCH 1/8’’
15 96008LA 3 BAR PRESSURE RELIEF VALVE 1/2’’
16 96009LA D.H.W. CYLINDER TEMP. (90°)+PRESS. (7BAR) SAFETY VALVE
17 95011LA 8 LT. EXPANSION TANK
18 95006LA 10 LT. EXPANSION TANK
19 20031LA INSULATED 45 LT. STORAGE CYLINDER
20 20022LA INSULATED 100 LT. STORAGE CYLINDER
21 96007LA ELECTRONIC FLOWSWITCH - 1/2’’ CONNECTIONS
22 37008LA EXHAUST FAN 230V
23 59006LB AIR PRESSURE SWITCH CE C6065AH1095
24 21001LA GAS BURNER 13 R. 1.25 NATURAL GAS
21004LA GAS BURNER 13 R. 0.77 L.P.G.
25 20025LA ANODE
26 86006LA SAFETY THERMOSTAT 95°C WATER
27 35007LA IGNITION ELECTRODE x ELECTRONIC
28 35009LA IONISATION ELECTRODE
29 47021LA 3 POSITION COMMUTATOR SWITCH R11C2X401
30 47014LA LOCK-OUT INDICATOR 60118C00
31 96023LA DIVERTER VALVE BODY VCZMG6000E
32 96022LA DIVERTER VALVE VC6012 MOTOR
33 31054LA IGNITION ELECTRODE CABLE x ELECTRONIC
34 31055LA IONISATION ELECTRODE CABLE
13
31
21
26
27
18
28
29
30
AB
B
A
22
23
10
9
1
11
12
32
4
5
33 34
H
32
24
25
20
19
15
14
16
17
6
7
8
