Installation Manual
Floor standing storage boiler – Cod. 99949NA – November 2002
3

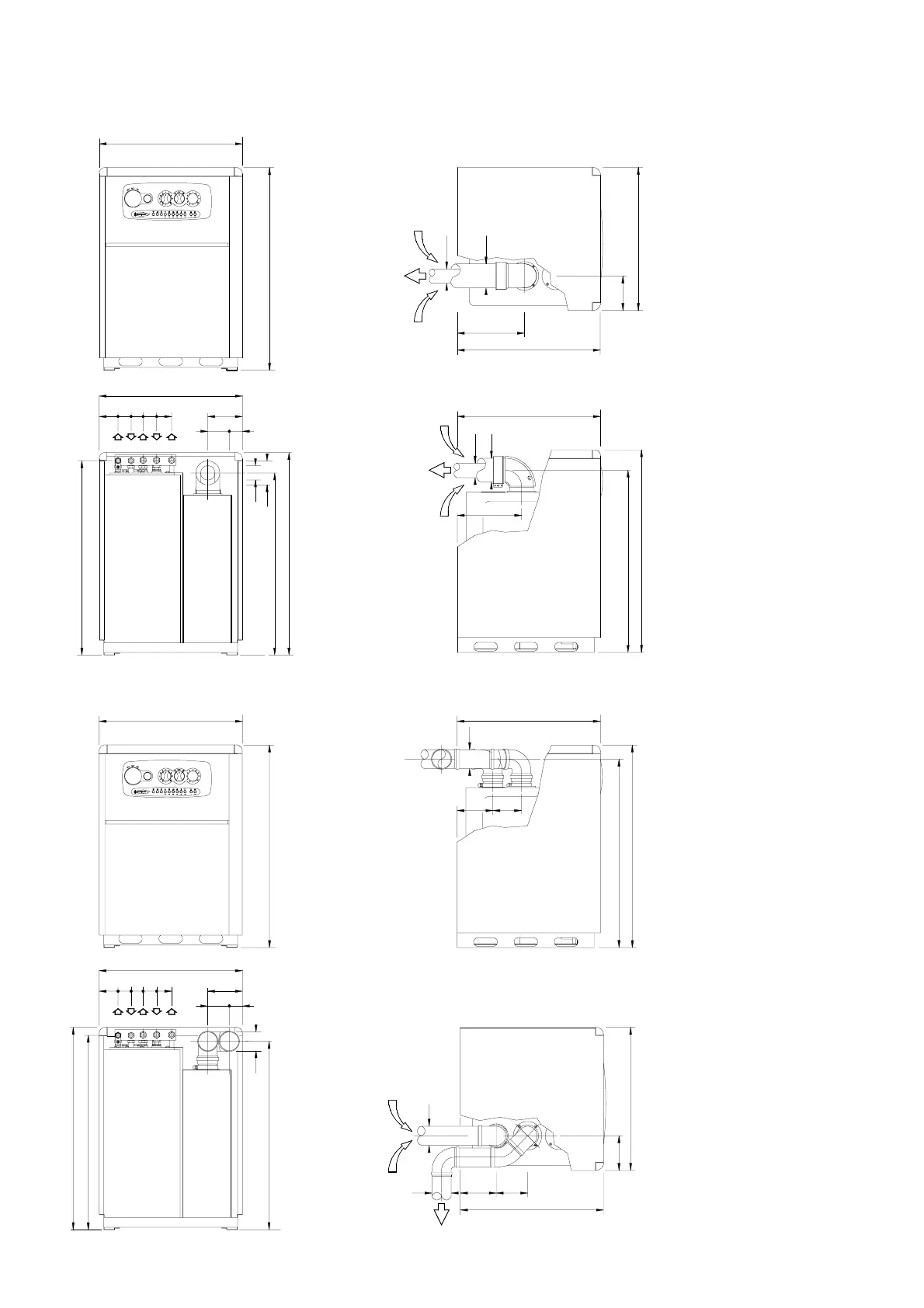

OVERALL DIMENSION - TYPE C BOILERS
Kit A
Horizontal coaxial exhaust flue
system with 360° rotation.
It allows the flue exhaust and
the air intake directly to an
external wall. .
To insert a bend, reduce total
flue length by 0.8 m.
Kit D
Double exhaust/emission twin
flue system with 360° rotation.
It allows the flue exhaust into
a flue duct and the air intake
directly from an external wall.
To insert a bend, reduce total
flue length by 1.5 m.
R RETURN ¾”
G GAS ½”
C HOT WATER OUTLET ½”
F COLD WATER INLET ½”
A HEATING FLOW ¾”
NOTE: USE ORIGINAL RADIANT
APPROVED FLUE KIT SYSTEMS,
FLUE ACCESSORIES AND FLUE
DIAPHRAGMS ONLY.
APPROVED RADIANT FLUE
DIAPHRAGMS AND
ADJUSTMENT TABLES ARE
SUPPLIED WITH RADIANT
ORIGINAL FLUE KIT SYSTEMS.
258
600
100
60
100
60
763 850
813
60
100
141
600
5190
GF ARC
6373 56
600
56
141
73
763
850
258
850
600
600
600
850
813
80
138
120
141
80
782
600
73
GARC
80
F
51
5663 56
600
90
141
73
120138
850 850
782
600 600
80
Fig. 1
Fig. 2
