Installation Manual
Floor standing storage boiler – Cod. 99949NA – November 2002
4
785
78 77 102 110102
GC AFR
1640
1755
1640
1755
222
570
80
80
570
==
80
785 910
1695
1695
102 78 77 102 110
1640
GC AFR
1640
222
100
60
60
100
570
570
= =

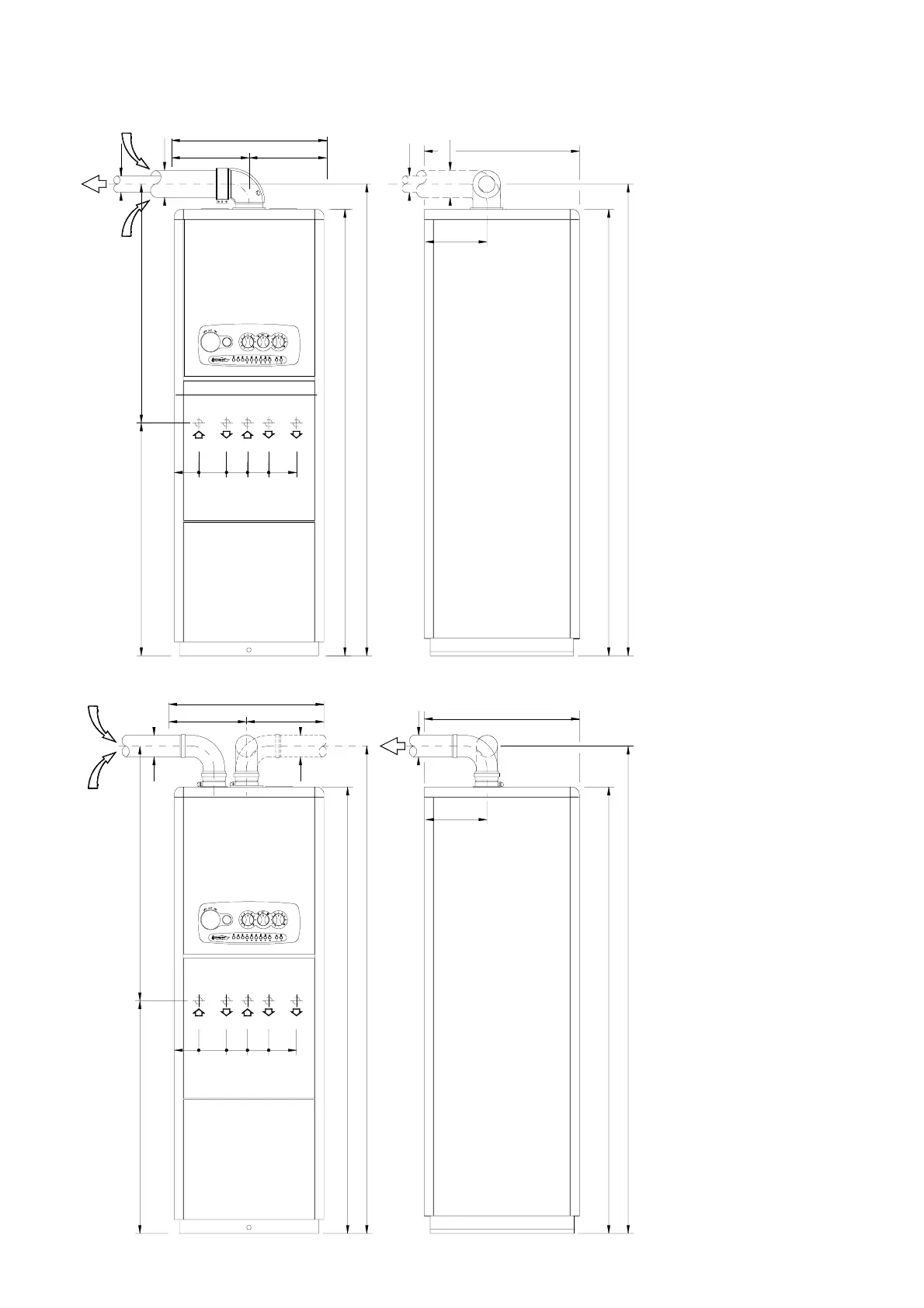

OVERALL DIMENSION - TYPE C BOILERS
Kit A
Horizontal coaxial exhaust flue
system with 360° rotation.
It allows the flue exhaust and
the air intake directly to an
external wall. .
To insert a bend, reduce total
flue length by 0.8 m.
NOTE: USE ORIGINAL RADIANT
APPROVED FLUE KIT
SYSTEMS, FLUE ACCESSORIES
AND FLUE DIAPHRAGMS ONLY.
APPROVED RADIANT FLUE
DIAPHRAGMS AND
ADJUSTMENT TABLES ARE
SUPPLIED WITH RADIANT
ORIGINAL FLUE KIT SYSTEMS.
Kit B
Double exhaust/emission twin
flue system with 360° rotation.
It allows the flue exhaust into
a flue duct and the air intake
directly from an external
wall.
To insert a bend, reduce total
flue length by 1.5 m.
R RETURN ¾”
G GAS ½”
C HOT WATER OUTLET ½”
F COLD WATER INLET ½”
A HEATING FLOW ¾”
Fig. 2
Fig. 1
