Simple • Capable • Safe
CHARGE COMPLETE
DONE T=0:01:23
CHARGE COMPLETE
FINAL V: 6.600
CHARGE COMPLETE
PEAK V: 6.615
CHARGE COMPLETE
MAH(IN): 6000
CHARGE COMPLETE
CHARGE T=1:23:45
CHECKING BATT
FOR LIPO CHARGE
V: 6.70 C1:3.45V
C2:3.45 C3:0.00V
CV TIME: 1:23:45
V:6.600 A:0.6
CC TIME: 1:23:45
MAH(IN): 5432
DV: 3MV
Peak V:8.76
DV TIME: 1:23:45
V:8.765 A:6.0
CC TIME: 1:23:45
MAH(IN): 5432
V: 7.60 C1:3.80V
C2:3.80 C3:0.00V
CV TIME: 1:23:45
V:7.600 A:0.6
CC TIME: 1:23:45
V:7.600 A:6.0
3
1
BACK/CANCEL
CHANGES WITH UP/DOWN SCROLLU
SCROLL DOWN
SCROLL UP
ENTER/CONFIRM
BACK/CANCEL UNAVAILABLE
SCROLL DOWN UNAVAILABLE
SCROLL UP UNAVAILABLE
ENTER/CONFIRM UNAVAILABLE
PRESS AND HOLD FOR 3 SECONDS
NODE/JUNCTION

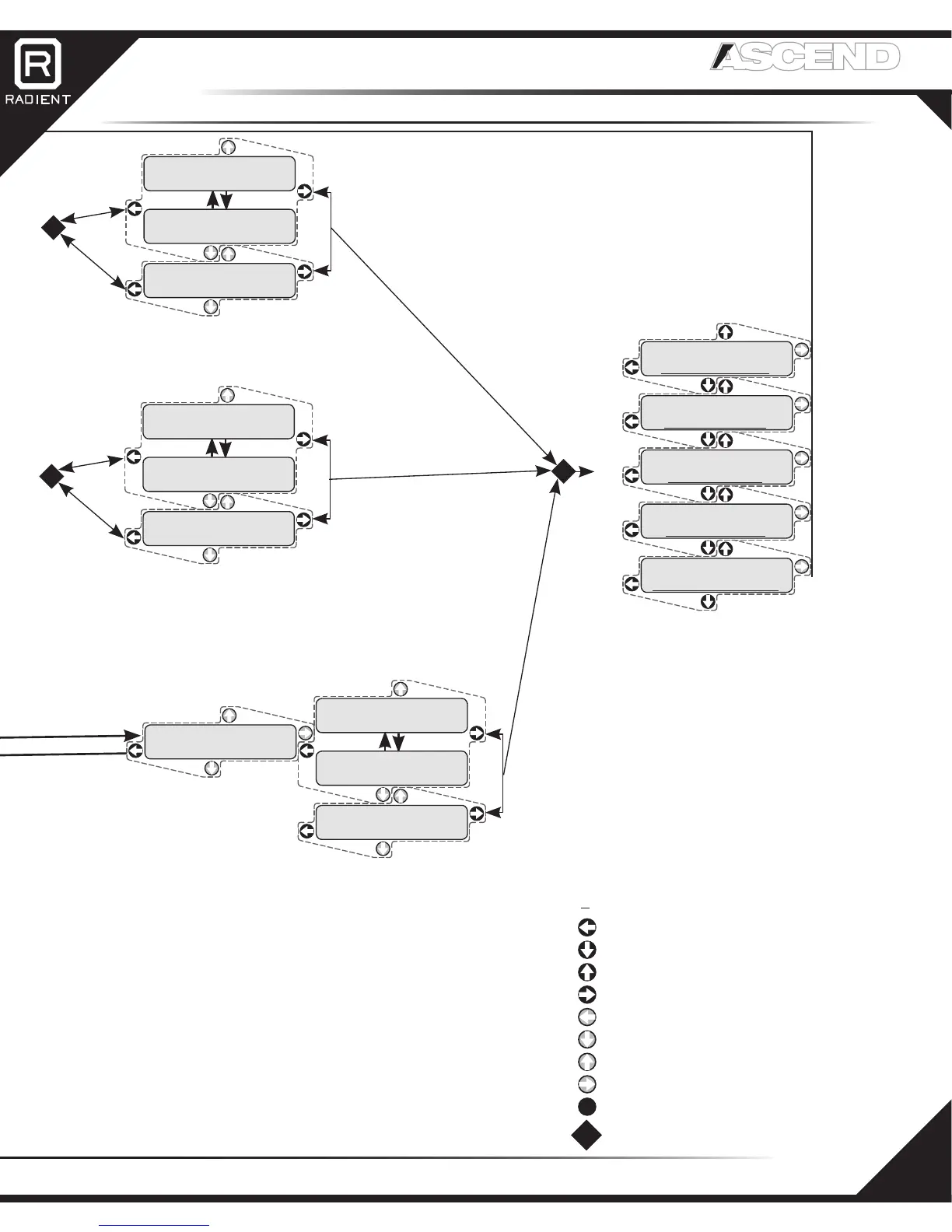

This menu flow chart is useful to help you find a particular feature or func-
tion of your charger. Use the Key on the right of this paragraph to understand
the symbols seen in the diagram above. The purpose is not to show an
actual charge cycle, only illustrate how the displays might look when you
see them.
*Note: Due to ongoing research and development some items may change
without notice
1
2
To Next Page
