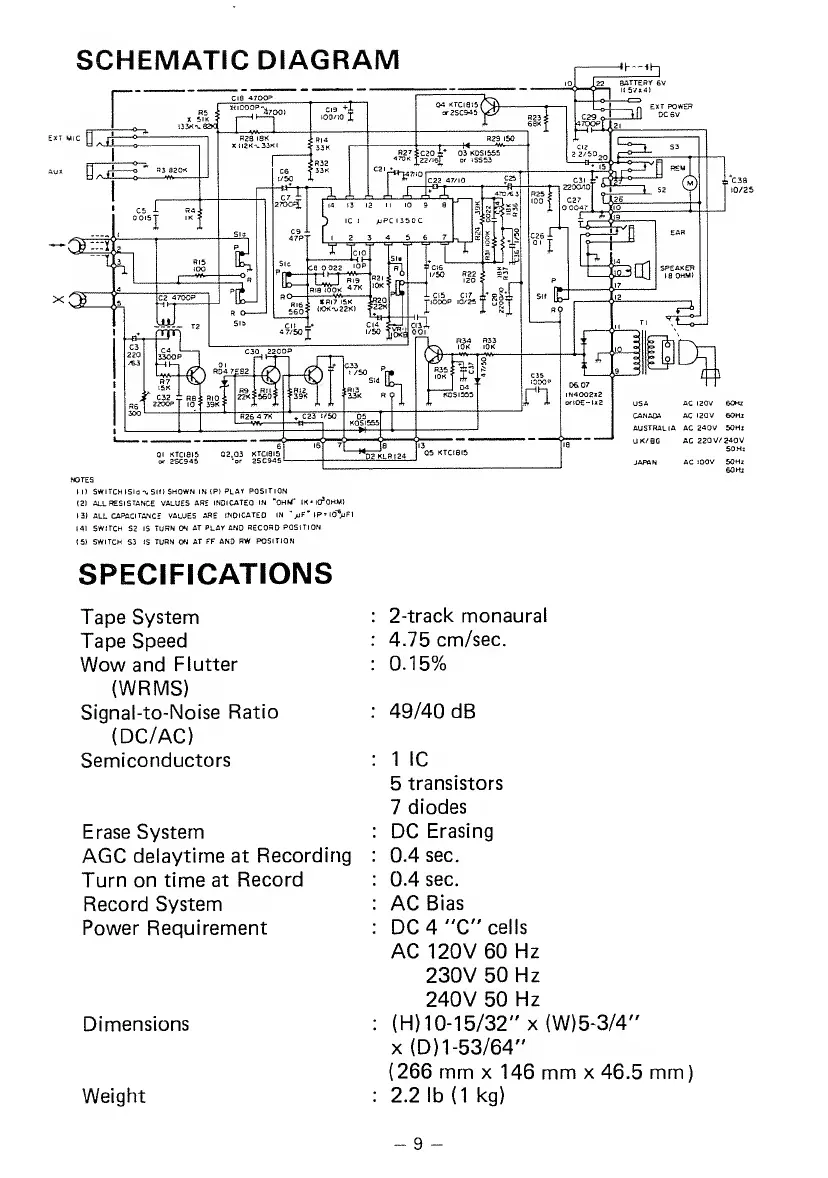

Radio Shack 26-1145 Instruction Manual

SCHEMATIC
DIAGRAM
USA
AC 120V
60M*
CANADA AC 130 V 6OH1
AUSTRALIA AC 240V 50Hl
UK/BG AC
220 V/ 240 V
50M;
JAPAN AC
IQOV 50Hi
60 Mi
NOTES
[ I)
SWlTCHtSla-v-SIU SHOWN IN IP)
PLAT POSITION
(2) AU. RESISTANCE VALUES
ARE INDICATED
IN "OHM"
tK'IC^Ol
131 ALL CAPACITANCE VALUES
ARE
INDICATED IN
j
/jF*(P*I'
(41 SWITCH
S2
IS TURN ON
AT PLAY AND
RECOHD
POSITION
1
SWITCH
S3
IS TURN
C
r FF AND RW
POSITION
SPECIFICATIONS
Tape System
Tape
Speed
Wow and
Flutter
(WRMS)
Signal-to-Noise
Ratio
(DC/AC)
Semiconductors
Erase System
AGC
delaytime at
Recording
Turn on time at
Record
Record System
Power Requirement
Dimensions
Weight
2-track
monaural
4.75
cm/sec
0.15%
49/40
dB
1 IC
5
transistors
7
diodes
DC
Erasing
0.4 sec.
0.4 sec.
AC
Bias
DC 4 "C"
cells
AC 120V 60 Hz
230V 50
Hz
240V 50
Hz
(H)10-15/32"x(W)5-3/4"
x(D)
1-53/64"
(
266 mm
x 1
46
mm x 46.5 mm
)
2.2 lb
(1
kg)
-
9

Radio Shack 26-1145 Specifications

General

Brand	Radio Shack
Model	26-1145
Category	Desktop
Language	English
