Radio Shack 26-1145 - Rs-232-Ccable

P/O TRS-80
EXPANSION INTER-
FACE CARD
EDGE CONNECTOR
P/O
RS-232-C
25 PIN
SERIAL
CONNECTOR
16
18
22
36
32
40
20
30
34
38
20
22
PGND
TD
RD
RTS
CTS
DSR
SGND
CD
DTR

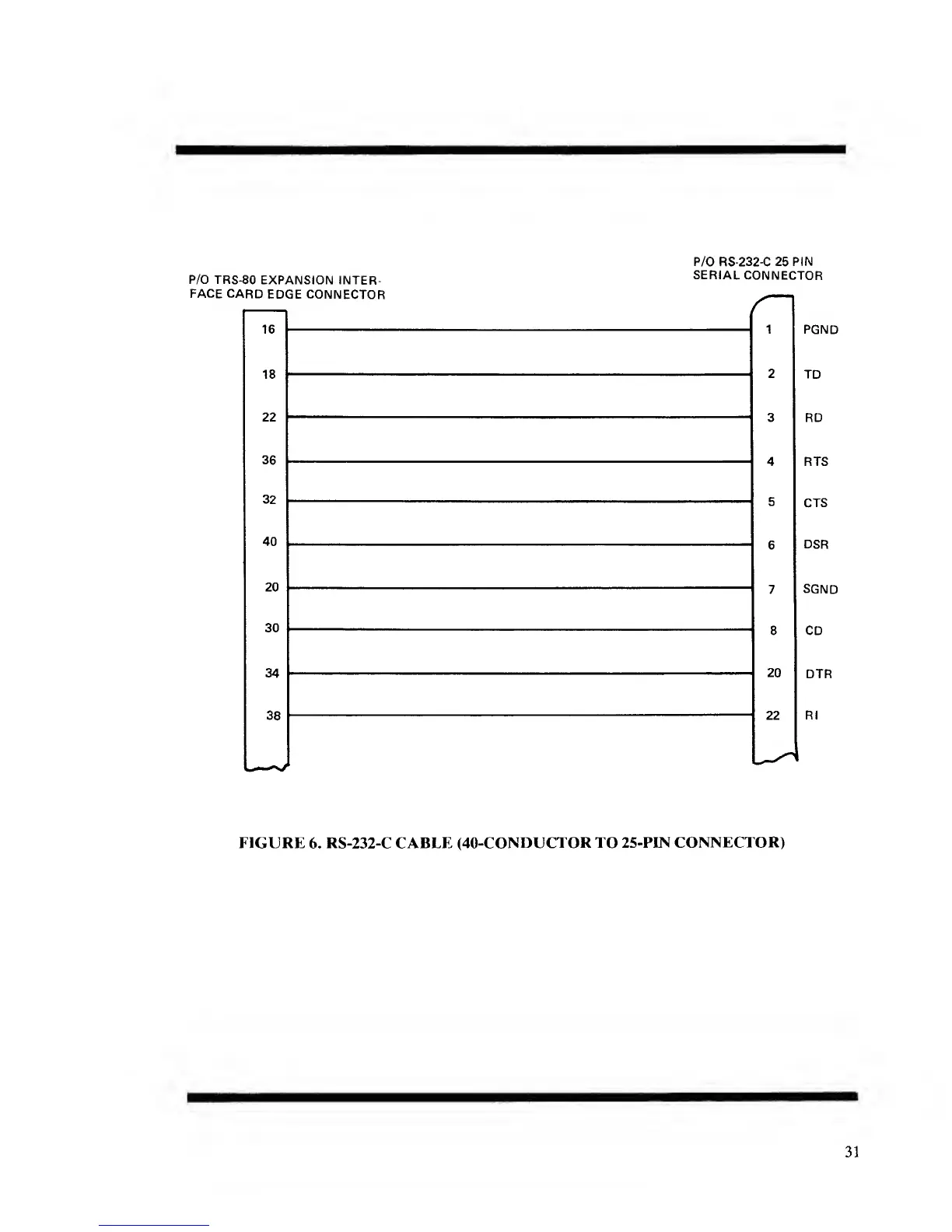

FIGURE 6. RS-232-C CABLE (40-CONDUCTOR
TO 25-PIN
CONNECTOR)
