Radio Shack CCR-81 Technical Service Data

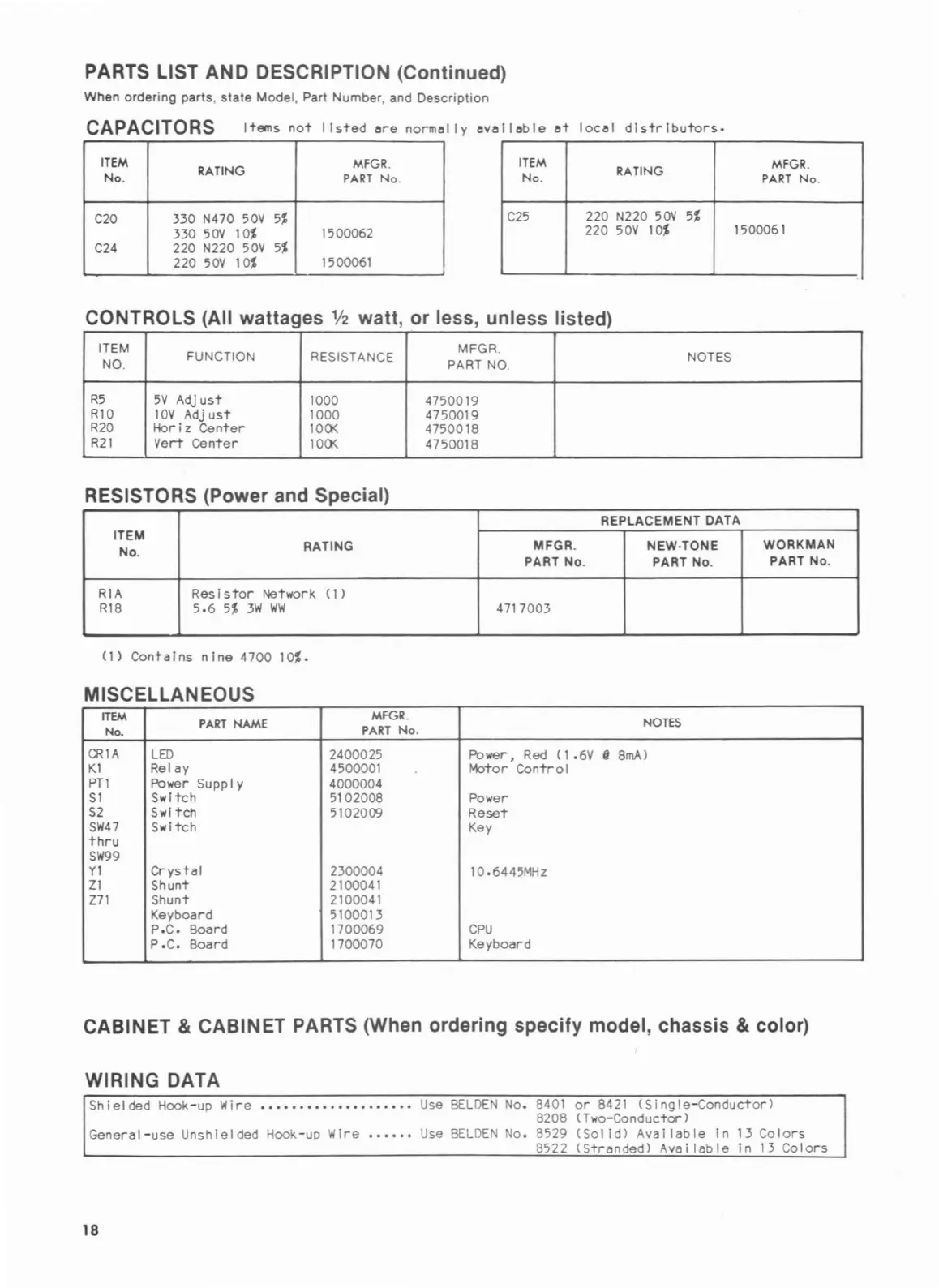

PARTS LIST AND DESCRIPTION (Continued)
When ordering parts, state Model, Part Number, and Description
CAPACITORS
Items not listed ~re norm~1 Iy ~v~ll~ble ~t 10c~1 distributors.
ITEM
RATING
MFGR.
No.
PART No.
C20 330 N470 50V
5%
330 50V 10%
1500062
C24
220 N220 50V 5%
220 50V 10%
1500061
ITEM
RATING
MFGR.
No.
PART No.
C25
220 N220 50V 5%
220 50V 10%
1500061
CONTROLS (All wattages Y2 watt, or less, unless listed)
ITEM
FUNCTION
RESISTANCE
MFGR.
NOTES
NO.
PART NO.
R5
5V Adj ust
1000
4750019
Rl0
10V Adj ust
1000 4750019
R20
Horiz Center
lOa< 4750018
R21
Vert Center
lOa<
4750018
RESISTORS (Power and Special)
REPLACEMENT DATA
ITEM
WORKMAN
No.
RATING
MFGR.
NEW·TONE
PART No.
PART No.
PART No.
R1A Res I stor Network
(ll
R18 5.6 5% 3W WW 4717003
(1) Contains nine 4700 10%.
MISCELLANEOUS
ITEM
PART NAME
MFGR.
NOTES
No.
PART No.
CR1A
LED
2400025 Power, Red (1 .6V 118mA)
Kl
Rei
ay
4500001 Motor Control
PTl
Power Supp I y
4000004
Sl Switch
5102008 Power
S2
Swl tch
5102009 Reset
SW47 Switch
Key
thru
SW99
Yl
Crystal
2300004
10.6445MHz
Zl Shunt 2100041
Z71 Shunt 2100041
Keyboard
5100013
P.C. Board
1700069 CPU
P.C. Board 1700070
Keyboard
CABINET & CABINET PARTS (When ordering specify model, chassis & color)
WIRING DATA
General-use Unshielded Hook-up Wire •••••• Use BELDE
Shielded Hook-up Wire
Use BELDEN No. 8401 or 8421 (Single-Conductor)
8208 (Two-Conductor)
o. 8529 (Sol id) Avai lable in 13 Colors
8522 (Stranded) Avai lable in 13 Colors
18
