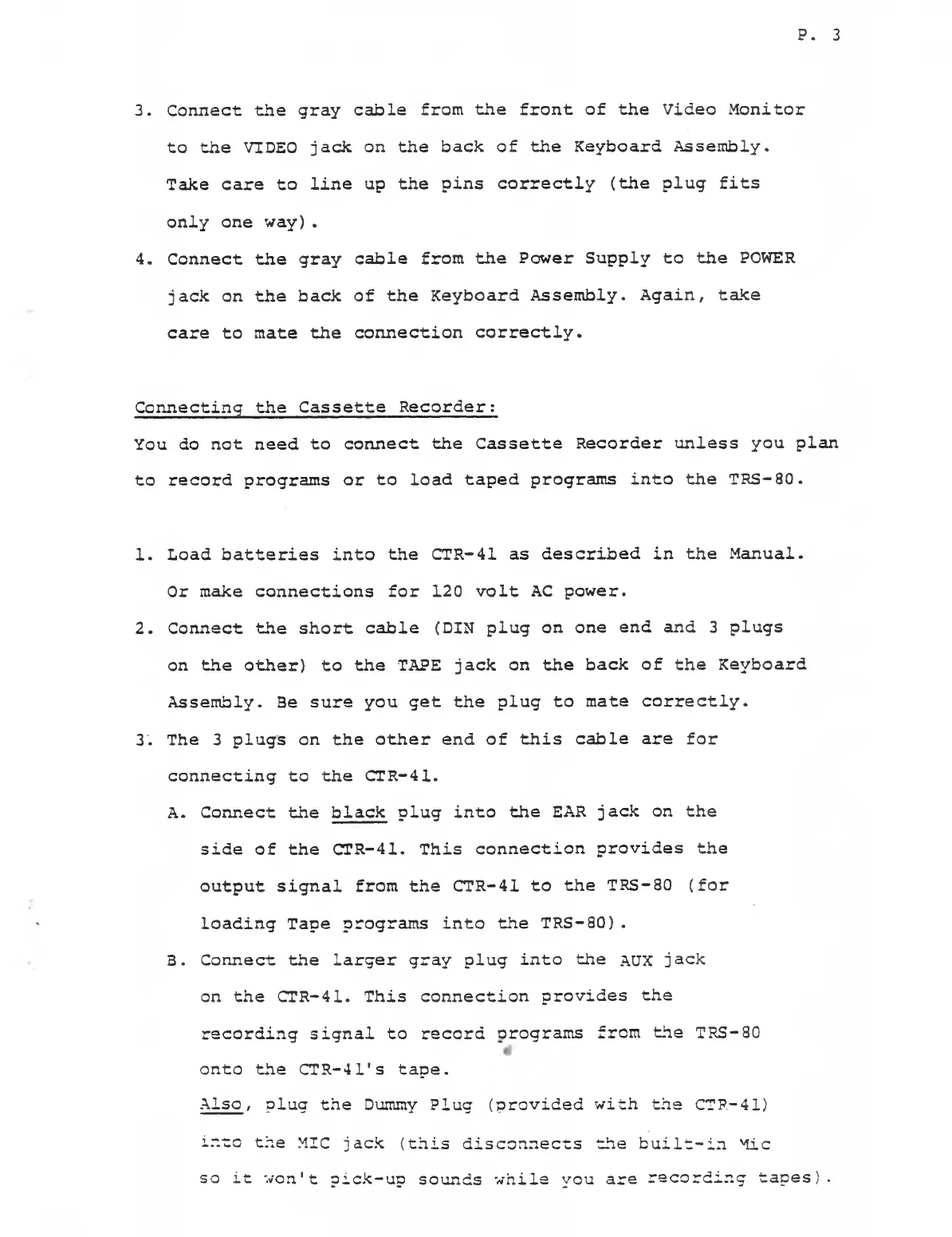

P. 3
3. Connect the gray cable from the front of the Video Monitor
to the VIDEO jack on the back of the Keyboard Assembly.
Take care to line up the pins correctly (the plug fits
only one way).
4. Connect the gray cable from the Power Supply to the POWER
jack on the back of the Keyboard Assembly. Again, take
care to mate the connection correctly.
Connecting the Cassette Recorder:
You do not need to connect the Cassette Recorder unless you plan
to record programs or to load taped programs into the TRS-80.
1. Load batteries into the CTR-41 as described in the Manual.
Or make connections for 120 volt AC power.
2. Connect the short cable (DIN plug on one end and 3 plugs
on the other) to the TAPE jack on the back of the Keyboard
Assembly. Be sure you get the plug to mate correctly.
3. The 3 plugs on the other end of this cable are for
connecting to the CTR-41.
A. Connect the black plug into the EAR jack on the
side of the CTR-41. This connection provides the
output signal from the CTR-41 to the TRS-80 (for
loading Tape programs into the TRS-80).
3. Connect the larger gray plug into the AUX jack
on the CTR-41. This connection provides the
recording signal to record orograms from the TRS-80
onto the CTR-41's tape.
Also, plug the Dummy Plug (provided with the CTR-41)
into the MIC jack (this disconnects the built-in Mic
so it won't pick-up sounds while you are recording tapes).
