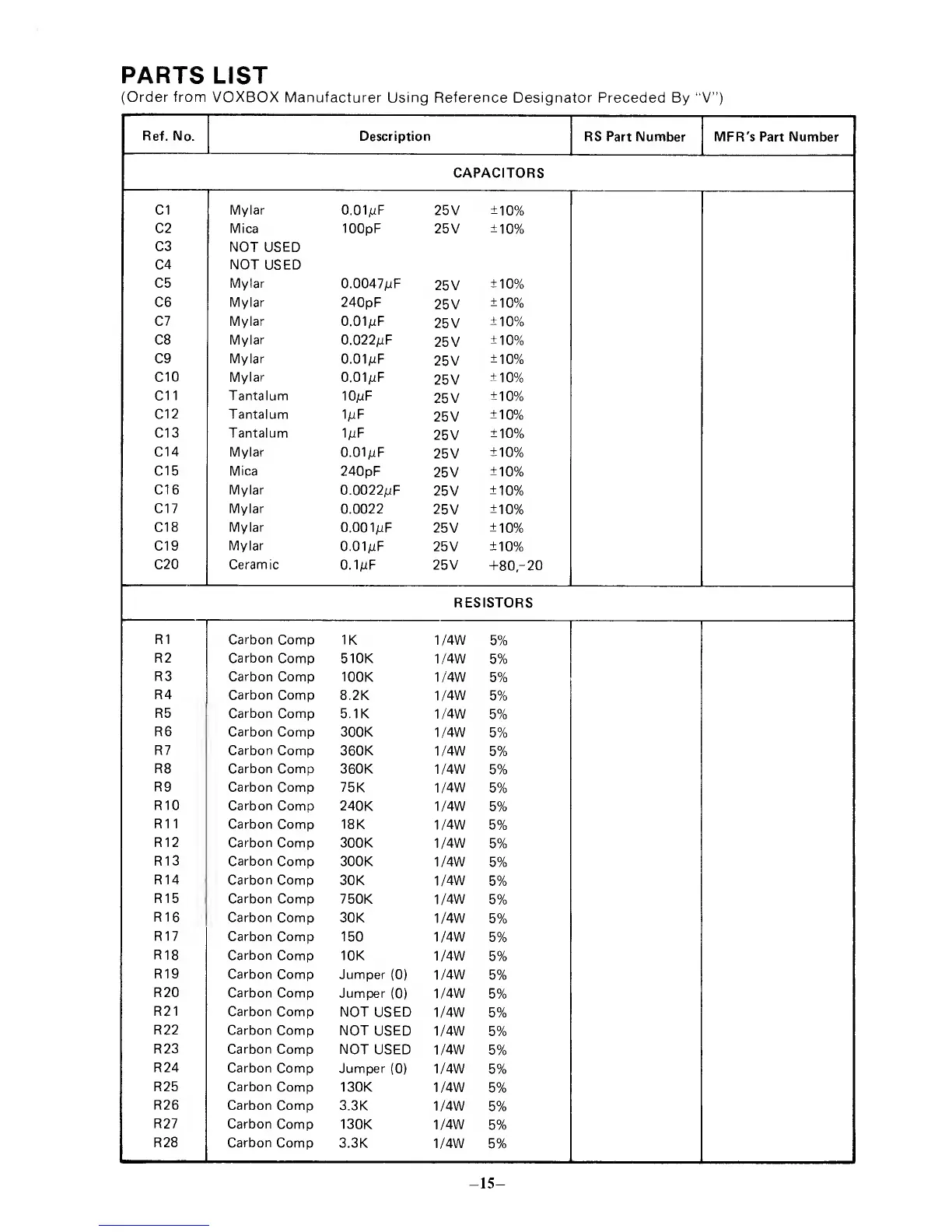

PARTS LIST
(Order from VOXBOX
Manufacturer Using Reference Designator
Preceded By
"
V")
Ref.
No. Description
RS Part Number
MFR's Part
Number
CAPACITORS
C1 Mylar 0.01,uF
25V ±10%
C2 Mica 100pF
25V ±10%
C3
NOT USED
C4 NOT USED
C5 Mylar
0.0047^F
25
V
±10%
C6 Mylar
240pF
25V
±10%
C7 Mylar O.OIjuF
25V
±10%
C8
Mylar
0.022;uF
25
V
±10%
C9 Mylar
0.01/iF
25V
±10%
C10
Mylar
0.01/iF
25V
±10%
C11
Tantalum
10juF
25
V
±10%
C12 Tantalum 1juF
25V
±10%
C13 Tantalum 1;uF
25V
±10%
C14 Mylar
0.01 ^F
25
V
±10%
C15
Mica
240pF
25V
±10%
C16 Mylar
0.0O22iiF
25 V
±10%
C17 Mylar
0.0022
25
V
±10%
C18
Mylar
0.00 IjuF
25 V
±10%
C19
Mylar
0.01/xF
25V
±10%
C20
Ceramic
0.1|UF 25V
+80,-20
RESISTORS
R1 Carbon
Comp
1 K 1 /4W 5%
R2 Carbon
Comp 510K
1/4W 5%
R3 Carbon
Comp
100K 1/4W 5%
R4
Carbon Comp
8.2K 1/4W 5%
R5 Carbon Comp
5.1K
1/4W 5%
R6 Carbon
Comp 300K
1 /4W 5%
R7 Carbon
Comp
360
K
1/4W 5%
R8 Carbon Comp
360 K
1/4W 5%
R9
Carbon Comp 75
K 1/4W 5%
R10 Carbon
Comp
240K 1/4W 5%
R11
Carbon Comp
18K
1/4W 5%
R12 Carbon
Comp 300 K
1/4W 5%
R13 Carbon Comp
300K
1/4W 5%
R14 Carbon
Comp
30 K 1/4W 5%
R15 Carbon
Comp
750K 1/4W 5%
R16
Carbon Comp
30K
1/4W 5%
R17 Carbon
Comp
150 1/4W 5%
R18
Carbon
Comp 10K
1/4W 5%
R19 Carbon
Comp Jumper
(0)
1/4W 5%
R20 Carbon
Comp
Jumper
(0)
1/4W
5%
R21
Carbon Comp
NOT USED
1/4W 5%
R22
Carbon Comp
NOT USED
1/4W 5%
R23 Carbon
Comp NOT
USED 1/4W 5%
R24
Carbon Comp
Jumper
(0)
1/4W 5%
R25 Carbon
Comp 130K
1/4W 5%
R26
Carbon Comp
3.3K
1/4W 5%
R27
Carbon
Comp
130K 1/4W 5%
R28 Carbon
Comp
3.3K
1/4W 5%
15-
