2. TCM3

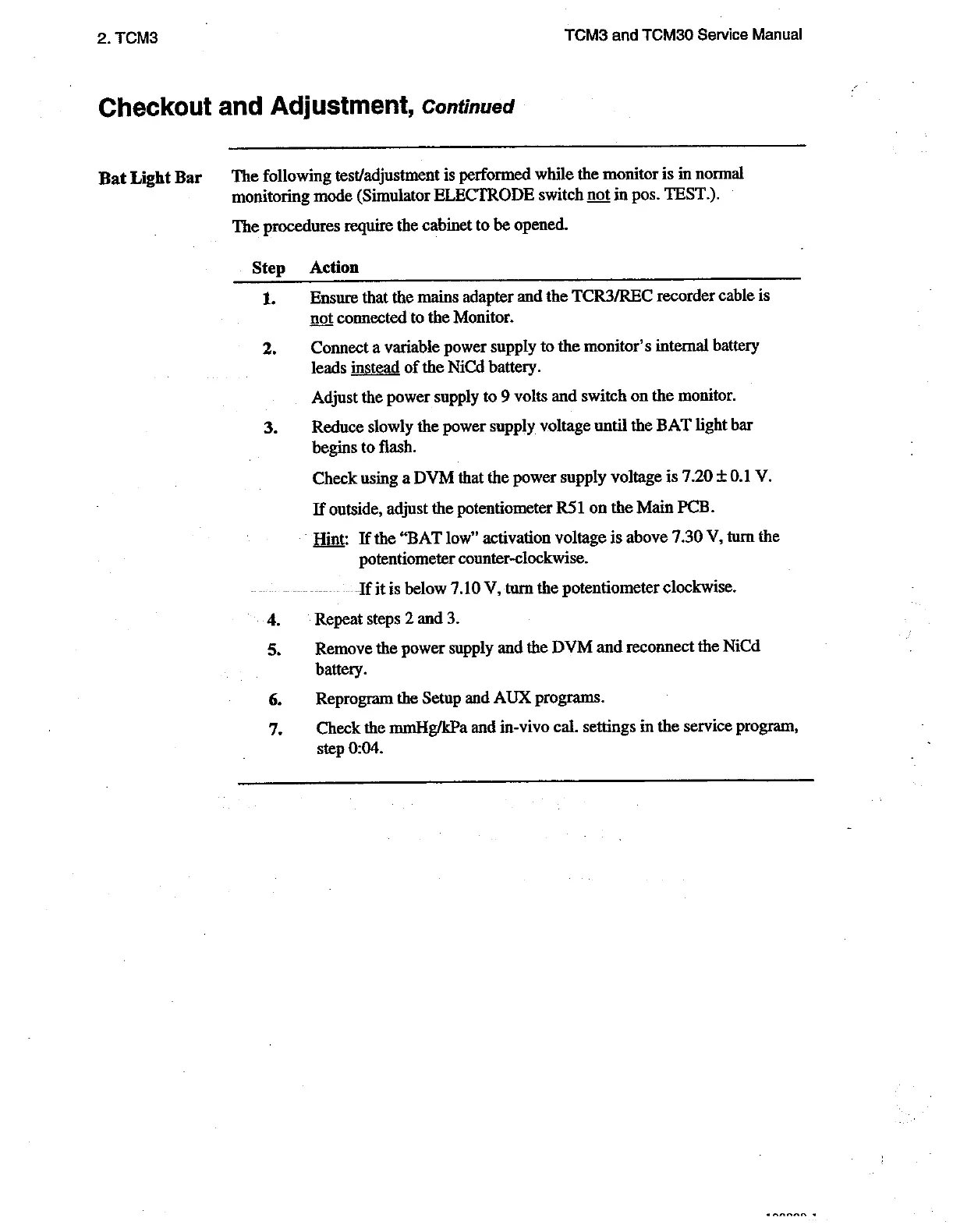

TCM3 and TCM30 Service Manual
Checkout
and
Adjustment,
Continued
Bat
Light
Bar
The
following
test/adjustment
is
performed
while
the
monitor
is
in
normal
monitoring
mode
(Simulator
ELECTRODE
switch
not
in
pos.
TEST.).
The procedures require the cabinet to be opened.
Step
1.
2.
6.
7.
Action
Ensure that the mains adapter and the TCR3/REC recorder cable is
not connected to the Monitor.
Connect a variable power supply to the monitor's internal battery
leads instead of the NiCd battery.
Adjust the power supply to 9 volts and switch on the monitor.
Reduce slowly the power supply voltage until the BAT light bar
begins to flash.
Check using a DVM that the power supply voltage is 7.20 + 0.1 V.
If outside, adjust the potentiometer R51 on the Main PCB.
Hint: If the “BAT low” activation voltage is above 7.30 V, tum the
potentiometer counter-clockwise.
If itis below 7.10 V, turn the potentiometer clockwise.
Repeat steps 2 and 3.
Remove the power supply and the DVM and reconnect the NiCd
battery.
Reprogram the Setup and AUX programs.
Check the mmHg/kPa and in-vivo cal. settings in the service program,
step 0:04.
