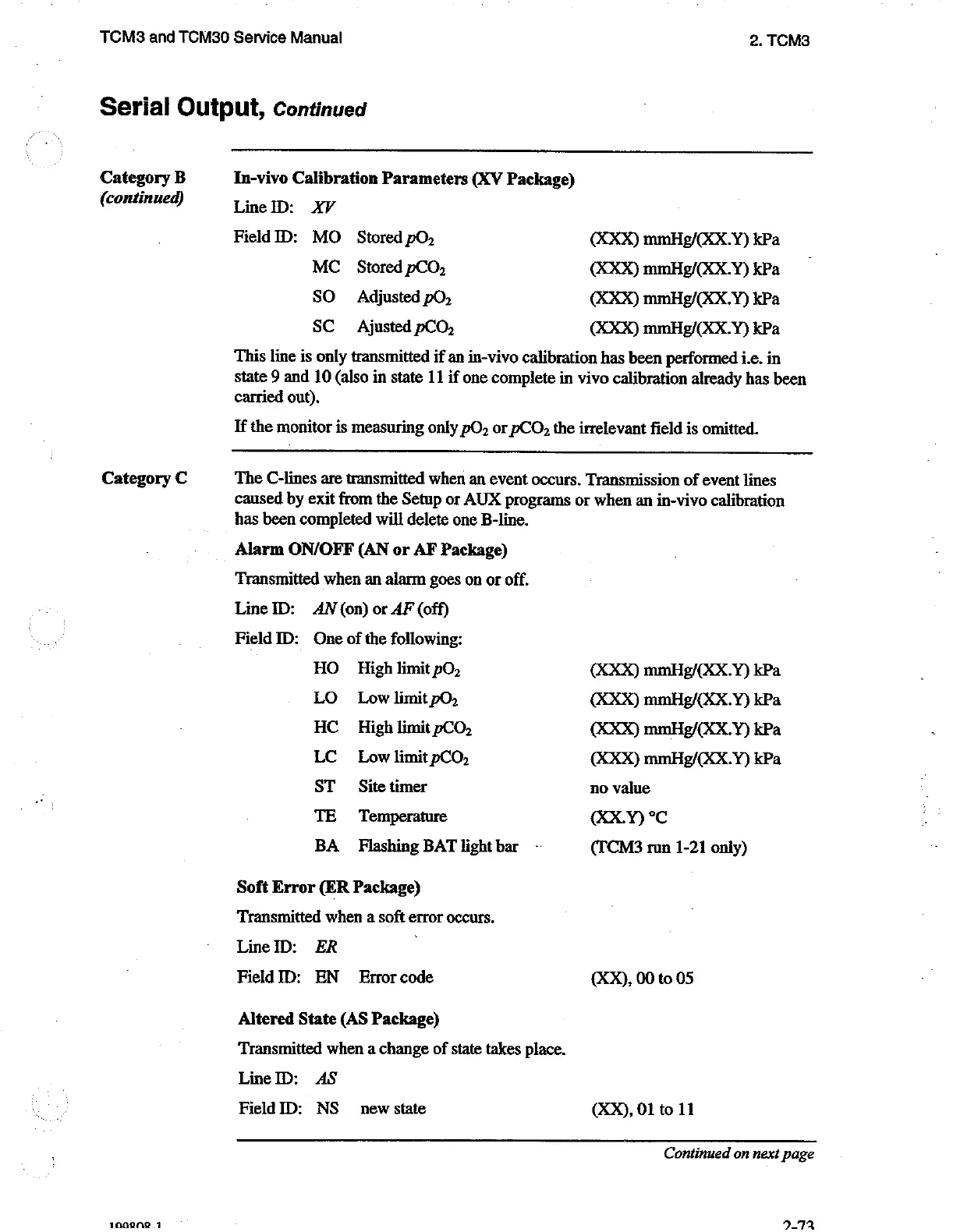

2.
TCM3
Serial Output, Continued
Category B
(continued)
Category C
1000N2.1
In-vivo Calibration Parameters (XV Package)
Line ID: XV
Field ID: MO Stored pO, (XXX) mmHg/(XX.Y) kPa
MC Stored pCO, (XXX) mmHg/(XX.Y) kPa
SO Adjusted pO, (XXX) mmHg/(XX.Y) kPa
SC Ajusted pCO, (XXX) mmHg/(XX.Y) kPa
This line is only transmitted if an in-vivo calibration has been performed i.e. in
state 9 and 10 (also in state 11 if one complete in vivo calibration already has been
carried out).
If the monitor is measuring only pO, or pCO, the irrelevant field is omitted.
The C-lines are transmitted when an event occurs. Transmission of event lines
caused by exit from the Setup or AUX programs or when an in-vivo calibration
has been completed will delete one B-line.
Alarm ON/OFF (AN or AF Package)
Transmitted when an alarm goes on or off.
Line ID: „AN (on) or AF (off)
Field ID: One of the following:
HO High limit pO (XXX) mmHg/(XX.Y) kPa
LO Low limit pO, (XXX) mmHg/(XX.Y) kPa
HC High limit PCO, (XXX) mmHg/(XX.Y) kPa
LC Low limit pCO, (XXX) mmHg/(XX.Y) kPa
ST | Site timer no value
TE Temperature (KX.Y) °C
BA Flashing BAT light bar - (TCM3 run 1-21 only)
Soft Error (ER Package)
Transmitted when a soft error occurs.
LineID: ER '
Field ID: EN Error code (XX), 00 to 05
Altered State (AS Package)
Transmitted when a change of state takes place.
Line ID: AS
Field ID: NS new state (XX), 01 to 11
Continued on next page
