RADIOMETER TCM3 - Page 91

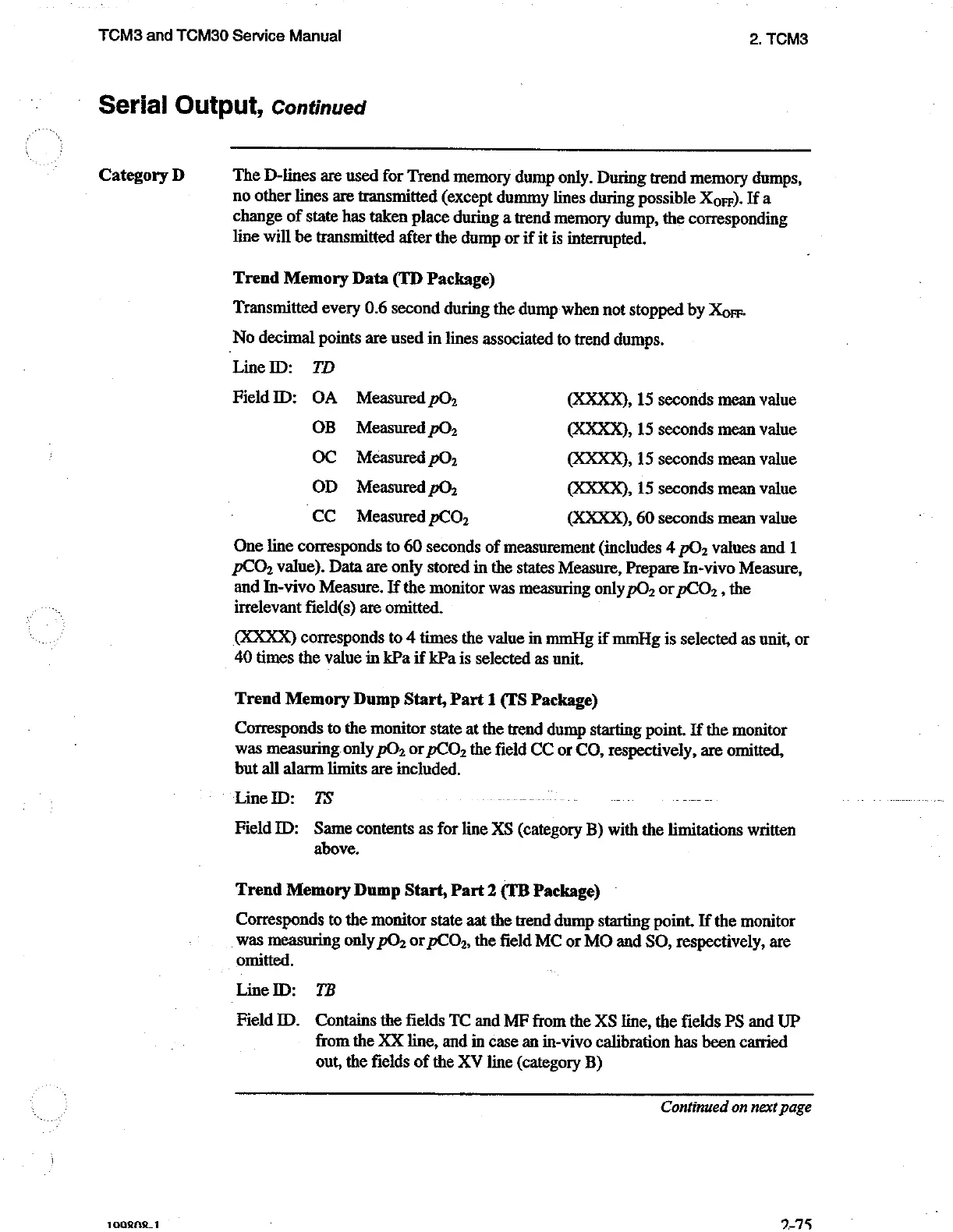

TCM3
and
TCM30
Service
Manual
2.
TCM3
Serial Output, Continued
Category D
1008081
The
D-lines
are
used
for
Trend
memory
dump
only.
During
trend
memory
dumps,
no
other
lines
are
transmitted
(except
dummy
lines
during
possible
X
opr).
If
a
change
of state
has
taken
place
during
a
trend
memory
dump,
the
corresponding
line
will
be
transmitted
after
the
dump
or
if it
is interrupted.
Trend Memory Data (TD Package)
Transmitted every 0.6 second during the dump when not stopped by Xorp.
No decimal points are used in lines associated to trend dumps.
Line ID: TD
Field ID: OA Measured pO, (XXXX), 15 seconds mean value
OB Measured pO, (XXXX), 15 seconds mean value
OC Measured pO, (XXXX), 15 seconds mean value
OD Measured pO, (XXXX), 15 seconds mean value
CC Measured pCO, (XXXX), 60 seconds mean value
One line corresponds to 60 seconds of measurement (includes 4 pO. values and 1
pCO, value). Data are only stored in the states Measure, Prepare In-vivo Measure,
and In-vivo Measure. If the monitor was measuring only pO. or pCO; , the
irrelevant field(s) are omitted.
(XXXX) corresponds to 4 times the value in mmHg if mmHg is selected as unit, or
40 times the value in kPa if kPa is selected as unit.
Trend Memory Dump Start, Part 1 (TS Package)
Corresponds to the monitor state at the trend dump starting point. If the monitor
was measuring only pO, or pCO, the field CC or CO, respectively, are omitted,
but all alarm limits are included.
Line ID: TS ーーーーーー ーー ーーーーー
Field ID: Same contents as for line XS (category B) with the limitations written
above.
Trend Memory Dump Start, Part 2 (FB Package) -
Corresponds to the monitor state aat the trend dump starting point. If the monitor
was measuring only pO2 or pCO), the field MC or MO and SO, respectively, are
omitted,
Line ID: TB
Field ID. Contains the fields TC and MF from the XS line, the fields PS and UP
from the XX line, and in case an in-vivo calibration has been carried
out, the fields of the XV line (category B)
Continued on next page
2-75
