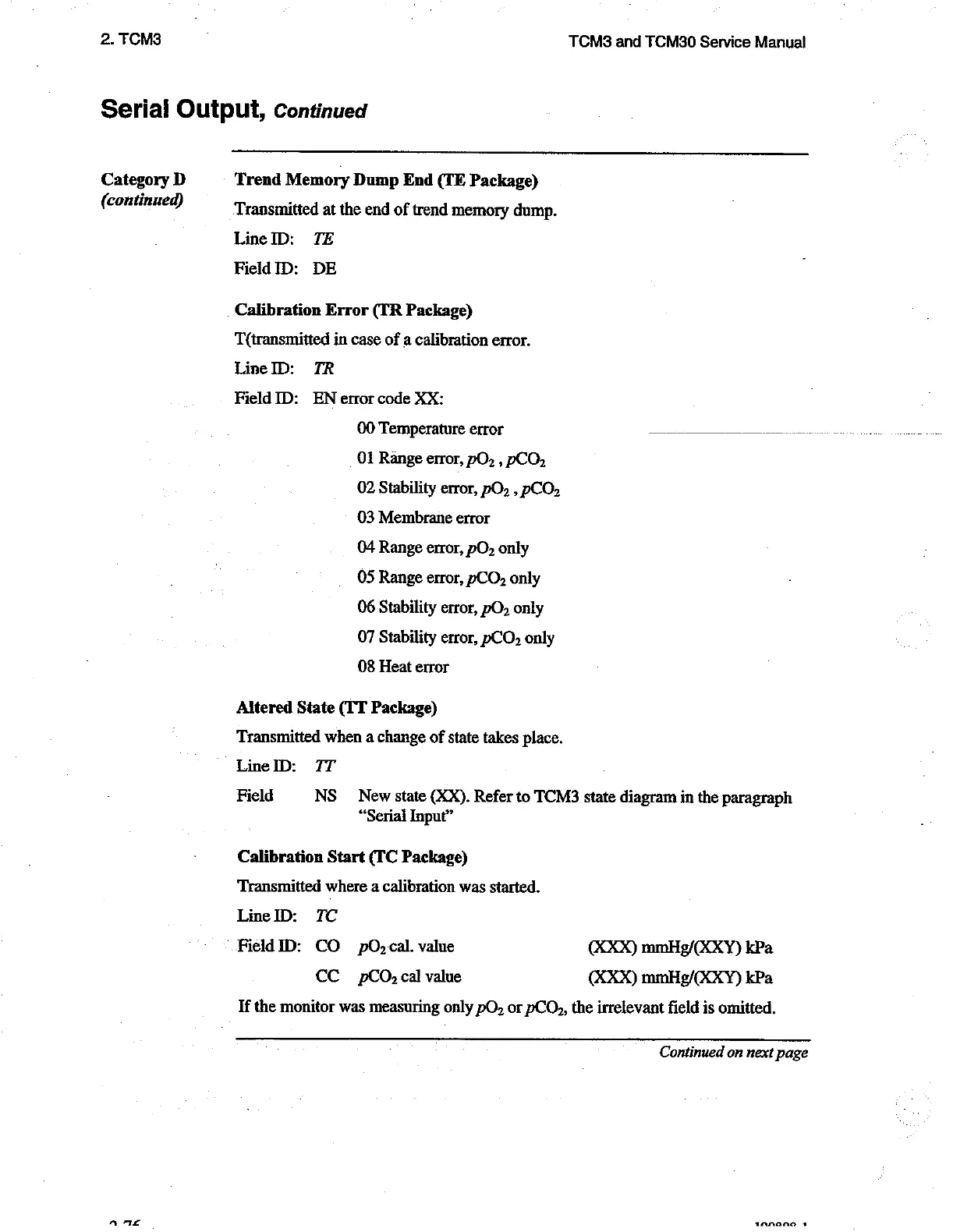

Serial Output, Continued
Category D Trend Memory Dump End (TE Package)
(continued) Transmitted at the end of trend memory dump.
Line ID: ΤΕ
Field ID: DE
Calibration Error (TR Package)
T(transmitted in case of a calibration error.
Line ID: TR
Field ID: EN error code XX:
00 Temperature error — ---
O1 Range error, pO, , pCO»
02 Stability error, pO. , pCO.
03 Membrane error
04 Range error, pO, only
05 Range error, pCO, only
06 Stability error, pO. only
07 Stability error, pCO, only
08 Heat error
Altered State (TT Package)
Transmitted when a change of state takes place.
Line ID: ΤΤ
Field NS New state (XX). Refer to TCM3 state diagram in the paragraph
“Serial Input”
Calibration Start (TC Package)
Transmitted where a calibration was started.
Line ID: TC
Field ID: CO pO, cal. value (XXX) mmHg/(XXY) kPa
CC pCO, cal value (XXX) mmH¢/CXXY) kPa
If the monitor was measuring only pO, or pCO,, the irrelevant field is omitted.
Continued on next page
