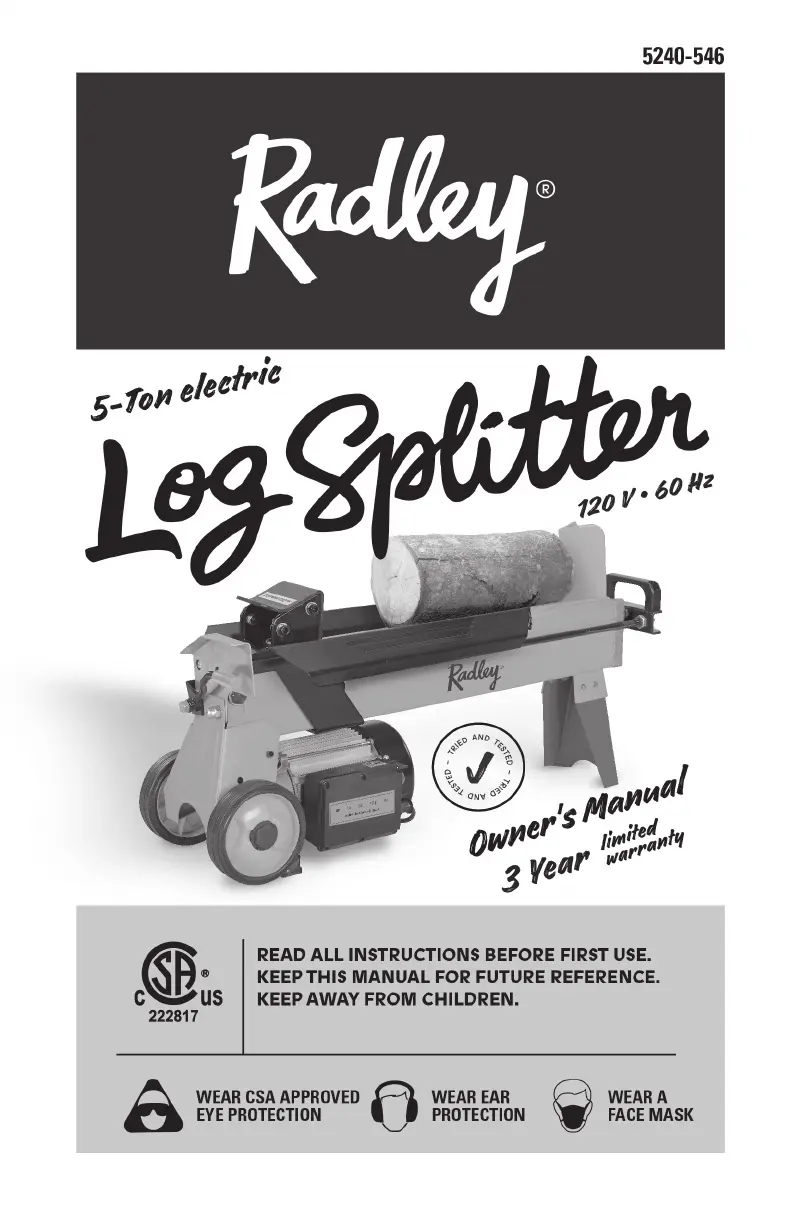

RADLEY WS5T - User Manual

Questions and Answers

E
erin46Aug 5, 2025
Why does my RADLEY WS5T Log Splitter fail to split logs?
- S
  Shelia DonaldsonAug 5, 2025
  If your RADLEY Log Splitter fails to split logs, several factors could be at play. First, ensure the log is correctly positioned according to the "Log Splitter Operation" section. If the log's size or hardness exceeds the machine's capacity, reduce the log size. A blunt wedge cutting edge may also be the cause, requiring you to refer to the "Sharpening Wedge" section. Oil leaks or unauthorized adjustments to the Max. Pressure Screw, resulting in a lower maximum pressure rating, could also be reasons. In these cases of oil leaks or unauthorized adjustments, contact the dealer.
N
nparsonsAug 15, 2025
What to do if RADLEY Log Splitter has oil leaks around cylinder ram?
- M
  Mrs. Morgan RobinsonAug 15, 2025
  If you notice oil leaks around the cylinder ram or from other points in your RADLEY Log Splitter, it could be due to several reasons. One potential cause is air sealed in the hydraulic system during operation; to resolve this, loosen the Bleed Screw by 3~4 rotations before operating the log splitter. Another cause could be that the Bleed Screw was not tightened before moving the log splitter; in this case, tighten the Bleed Screw before moving it. Additionally, check if the Oil Drain Bolt with Dipstick is tight, and tighten it if necessary. If the Hydraulic Control Valve Assembly and/or seal(s) are worn, it is recommended to contact the dealer.
T
Timothy FoleyAug 26, 2025
Why is RADLEY WS5T Log Splitter log pusher moving jerkily?
- T
  Tonya WilsonAug 26, 2025
  If the log pusher in your RADLEY Log Splitter moves jerkily, accompanied by unfamiliar noises or excessive vibration, it may be due to a lack of hydraulic oil or excessive air in the hydraulic system. Check the oil level and refill if necessary. It is also recommended to contact the dealer.

Summary

Product Specifications

Safety Warnings & Cautions

Understand Your Log Splitter

Read manual and labels to learn applications, limitations, and hazards.

Drugs, Alcohol, and Medication

Do not operate under influence of substances affecting ability.

Avoid Dangerous Conditions

Use on stable, flat, level bench; keep area clean, dry, well-lit.

Inspect Your Log Splitter

Check guards, remove tools, replace damaged parts before use.

Dress Properly

Avoid loose clothing/jewelry; wear protective gloves and footwear.

Protect Your Eyes and Face

Always wear safety goggles; avoid operating on the ground.

Extension Cords

Use correct, short extension cords (max 10m, 2.5mm²) for efficient operation.

Avoid Electrical Shock

Ensure proper circuit protection, grounding, and RCD use. Avoid touching plug prongs.

Keep Visitors and Children Away

Operate alone; maintain safe distance for bystanders.

Inspect Your Log

Ensure logs are free of foreign objects and cut square.

Dont Overreach

Maintain footing and balance; never stand on the splitter.

Avoid Injury from Unexpected Accident

Pay attention to log pusher movement; keep hands clear of moving parts.

Protect Your Hands

Keep hands clear of splits; do not remove jammed logs with hands.

Dont Force Tool

Do not split logs exceeding capacity or use for unintended purposes.

Never Leave Tool Running Unattended

Do not leave the tool running after stopping operation.

Disconnect Power

Unplug before adjustments, cleaning, or servicing.

Protect the Environment

Dispose of used oil properly; do not discharge into drains or water.

Maintain Your Log Splitter With Care

Keep the log splitter clean for best and safest performance.

Make the Workshop Childproof

Secure the area, disconnect switches, and store away from children.

Application Conditions

Electrical Requirements

Set Up and Preparation for Operation

Bleed Screw Operation

Loosen bleed screw for air flow before operation, tighten before moving.

Max Pressure Limiting Screw

Do not adjust max pressure limiting screw; factory setting ensures 5-ton capacity.

Wiring Diagram

Plumbing Diagram

Log Splitter Operation

ZHB Control System

Operated by both hands; splitter stops if either hand is removed.

Trigger Type Lock-Out Device

Draw trigger back with index finger before pushing control lever forward.

Splitting Hard Wood

Do not force for >5s; overheat may occur. Rotate 90° for difficult logs.

Freeing a Jammed Log

Procedure for Jammed Log

Release controls, insert wedge, use splitter to push wedge, repeat if needed.

Avoid Knocking

Do not knock jammed logs; this can damage the machine or cause accidents.

Replacing Hydraulic Oil

Oil Replacement Steps

Unplug, drain old oil, refill with correct type and amount, check level.

Recommended Hydraulic Oils

Lists recommended hydraulic oils for the transmission system.

Sharpening Wedge

Troubleshooting

Fails to Split Logs

Check log position, size/hardness, wedge sharpness, and oil leaks.

Log Pusher Moves Jerkily

Check hydraulic oil level, air in system, or bleed screw/drain bolt tightness.

Oil Leaks

Locate leaks, check drain bolt, or contact dealer for valve assembly issues.

Warranty

Parts Schematic

Parts List

RADLEY WS5T Specifications

General

Brand	RADLEY
Model	WS5T
Category	Log Splitter
Language	English
