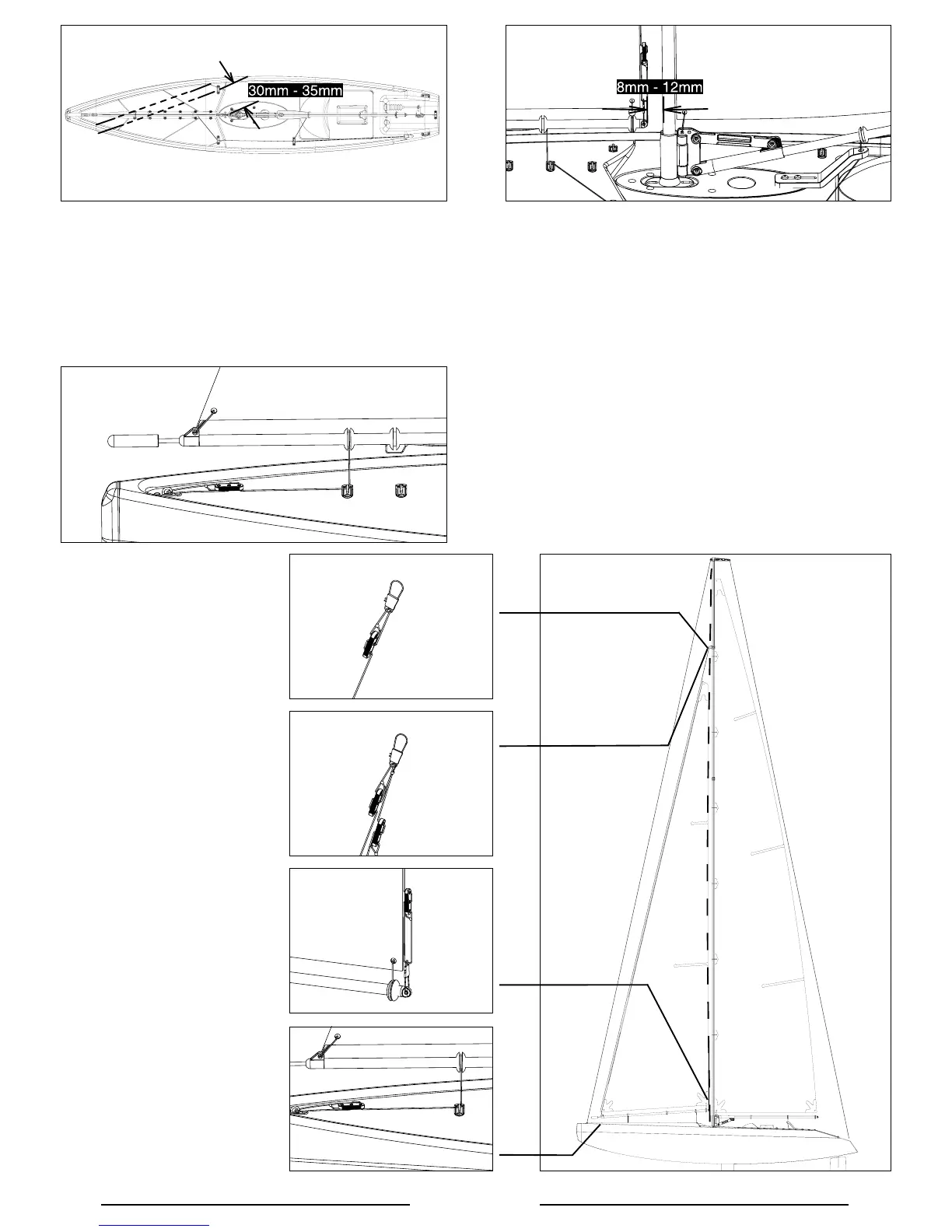

19. Move the bowsie as
shown to adjust the bend in
the mast. The mast should
be bent a little like a bow
indicated by the dotted line
in picture. Be sure that the
mast is not tilted forward or
backward.
20. Move the lower bowsie
to tighten or loosen the jib
sail.
21. Move the bowsie as
shown to tighten or loosen
the jib boom.
22. Move the bowsie as
shown to adjust the
distance between the jib
boom and the deck.
18.8. Rotate counterweight on the front of the jib
boom clockwise to adjust its position. The center
of gravity of the jib boom should be directly at
SR7.
18.6. Move SR6 to adjust the cord tied in step 15, if it is too tight (move toward SR5) or if too loose (move
toward SR7), to keep the jib boom within 30mm-35mm of the mast when the sail stick is at its lowest
position.
18.7. Move SR7 to adjust the distance between the jib boom and the mast, if they are too close (move
toward SR6) or if too far away (move toward the counterweight). Keep about 8mm-12mm between the rear
of the jib boom and the mast.
8/14
