when the machine starts to vibrate abnormally strong .
after coming into contact with a foreign body immediately check the machine for damage before using it, ensure their elimination;
1.30 . The operator or user is responsible for accidents, injuries to other persons or the environment and caused property damage.
1.31 . Electric hair grass is designed so that all moving parts and housing ensure safe conditions for use. For damage caused as
a result of attempts to change the structure of the electric hair grass manufacturer is not responsible .
1.32 . In order to ensure safety should only use original spare parts or parts recommended by the manufacturer .
1.33 . Failure to follow the instructions may result in electric shock, re and / or serious injury .
2 . Functional Description and purpose.
Electric trimmer is a handheld power tool with insulation second grade. It is powered by a single-phase commutator motor with
AC power and is designed for cutting grass at home. Not for use on electric grass trimmer for activities other than its intended use .
3 . Assembling the components of the electric grass trimmer and commissioning.
Some parts of the trimmer is dismantled to reduce the volume of the container during transportation
3.1. Mounting the protective cover

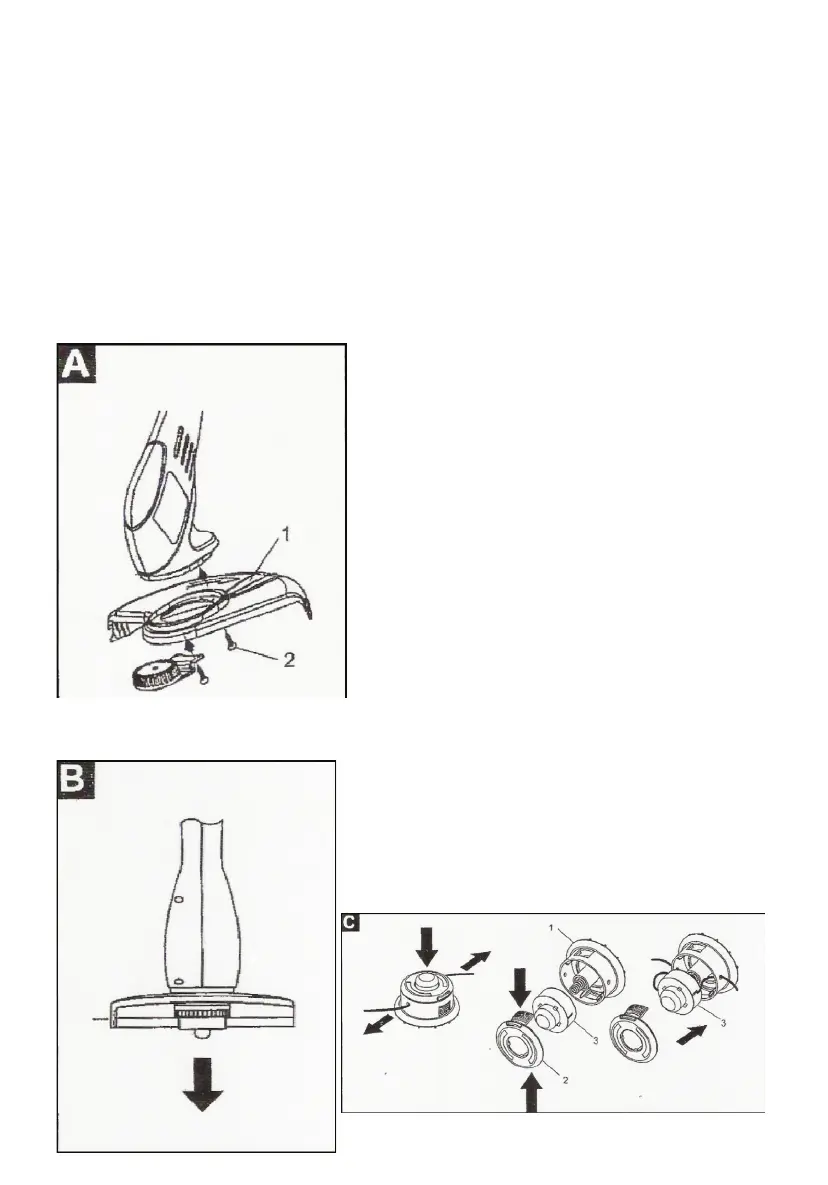

Attach the protective cover (7) on the basis of the trimmer, making use of set
screws and screwdriver, as it was shown in Figure A
Attention! Never use the trimmer without rst placing protective cover.
3.2. Start the trimmer
If the trimmer is used for the rst time, check that the string touches or passes
the cover.
The cord should be cut automatically at the position that is allocated a maximum
(outside the protective cover). To achieve the required length of the cord, hold the
button, as it was shown in Figure B, and C.
Long grass must be mowed in layers as shown in g. D
