Rail King Work Train - Transformer Compatibility and Wiring Chart

19
Diesel “Work Train“ Train Set Operating Manual
RAILKING
Transformer
Model
Center Rail Outside Rail
Min/Max.
Voltage
Power
Rating
Transformer
Type
Lionel 1032 U A 5-16v* 90-Watt Standard**
Lionel 1032M U A 5-16v* 90-Watt Standard**
Lionel 1033 U A 5-16v* 90-Watt Standard**
Lionel 1043 U A 5-16v* 90-Watt Standard**
Lionel 1043M U A 5-16v* 90-Watt Standard**
Lionel 1044 U A 5-16v* 90-Watt Standard**
Lionel 1053 U A 8-17v 60-Watt Standard**
Lionel 1063 U A 8-17v 60-Watt Standard**
All-Trol Left Terminal Right Terminal 0-24v 300-Watt Electronic^^
Cab-
1/Powermast er
A U 0-18v 135V.A. Electronic^
Dallee Hostler Left Terminal Right Terminal
Lionel LW A U 8-18v 75-Watt Standard**
Lionel KW A or B U 6-20v 190-Watt Standard**
MRC Tech II Left Terminal 2
nd
From Left 0-15v* 40V.A. Electronic
Lionel MW
Outside Track
Terminal
Inside Track
Terminal
5-16v* 50V.A. Electronic
R.O.W. Red Terminal Black Terminal 0-24v 384-Watt Standard**
Lionel RS-1 Red Terminal Black Terminal 0-18v 50V.A. Electronic
Lionel RW U A 9-19v 110-Watt Standard**
Lionel SW U A Unknown 130-Watt Standard**
Lionel TW U A 8-18v 175-Watt Standard**
Lionel ZW A,B,C or D U 8-20v 275-Watt Standard**
Lionel
Trainmaster
Red Terminal Black Terminal 0-18v 135-Watt Electronic
MTH Z-500 Red Terminal Black Terminal 0-18v 50-Watt Electronic
MTH Z-750 Red Terminal Black Terminal 0-21v 75-Watt Electronic
MTH Z-4000 Red Terminal Black Terminal 0-22v 400-Watt Electronic

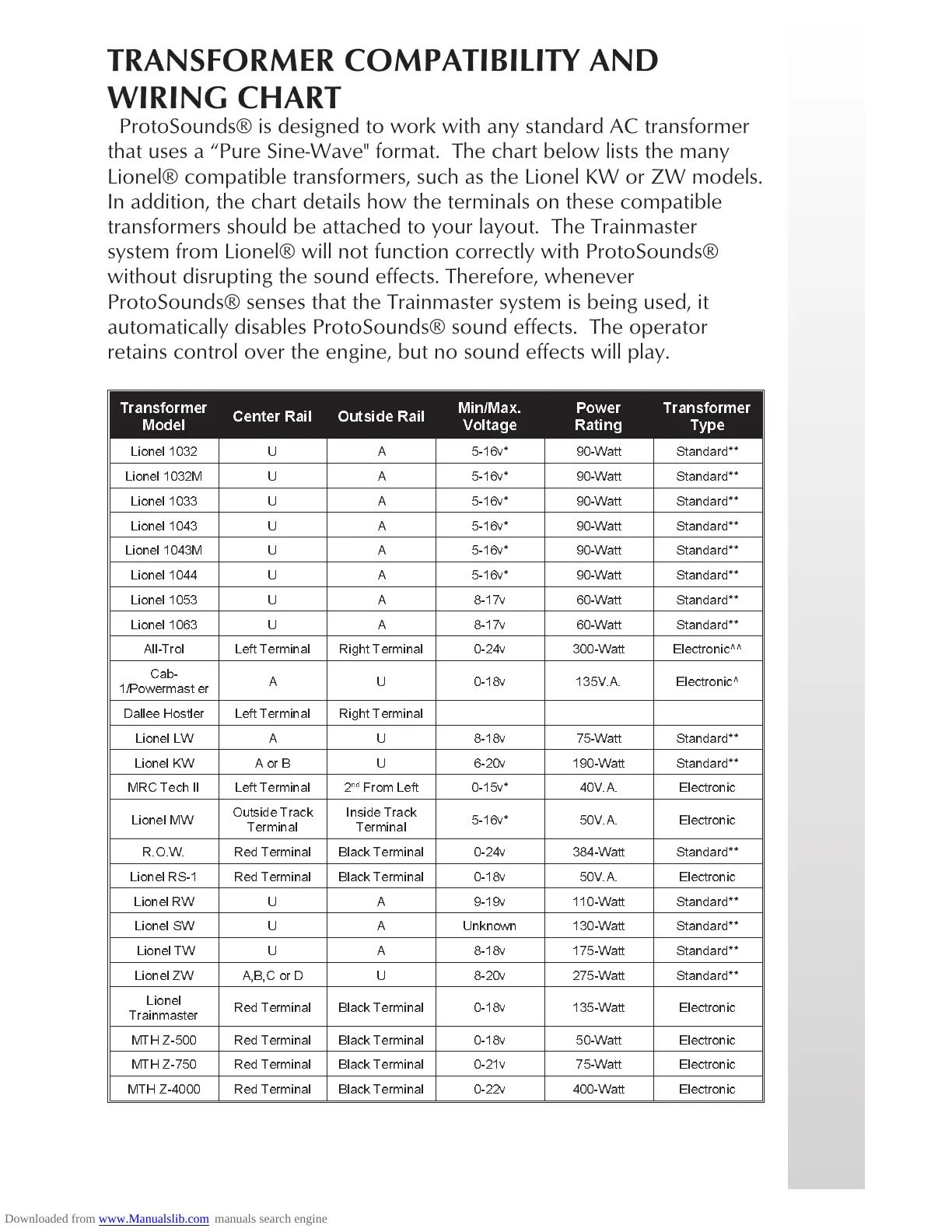

TRANSFORMER COMPATIBILITY AND
WIRING CHART
ProtoSounds® is designed to work with any standard AC transformer
that uses a “Pure Sine-Wave" format. The chart below lists the many
Lionel® compatible transformers, such as the Lionel KW or ZW models.
In addition, the chart details how the terminals on these compatible
transformers should be attached to your layout. The Trainmaster
system from Lionel® will not function correctly with ProtoSounds®
without disrupting the sound effects. Therefore, whenever
ProtoSounds® senses that the Trainmaster system is being used, it
automatically disables ProtoSounds® sound effects. The operator
retains control over the engine, but no sound effects will play.
