Rail King Work Train - Preparing the Locomotive & Cars for Operation; Lubrication

6
Diesel “Work Train“ Train Set Operating Manual
RAILKING
Preparing the Locomotive & Cars For
Operation
Before you run your locomotive, you must oil the locomotive.
Lubrication
Before you run the locomotive, use a light household or hobby oil to
lubricate the gears and pick up rollers. Apply a small drop of oil (a
pinpoint oiler will help
place the right amount of
oil where you need it) to
each of the points
indicated by in the diagram
in figures 8. You may also
want to use either a
locomotive repair cradle or
an old towel folded over to
provide a protective bed
for the locomotive shell
while you’re working on it.
-750
DIRECTION
BELL
HORN
WHISTLE
POWER
RK
AIL ING
By MT H ElectricTrains
®
T R AN S F OR ME R CON T R OL L E R
OFF
FU LL
POWER
Also functions as a binding post.
Red Harness
Wire/Plug
Red Harness
Wire/Plug
Black Harness
Wire/Plug
Black Harness
Wire/Plug

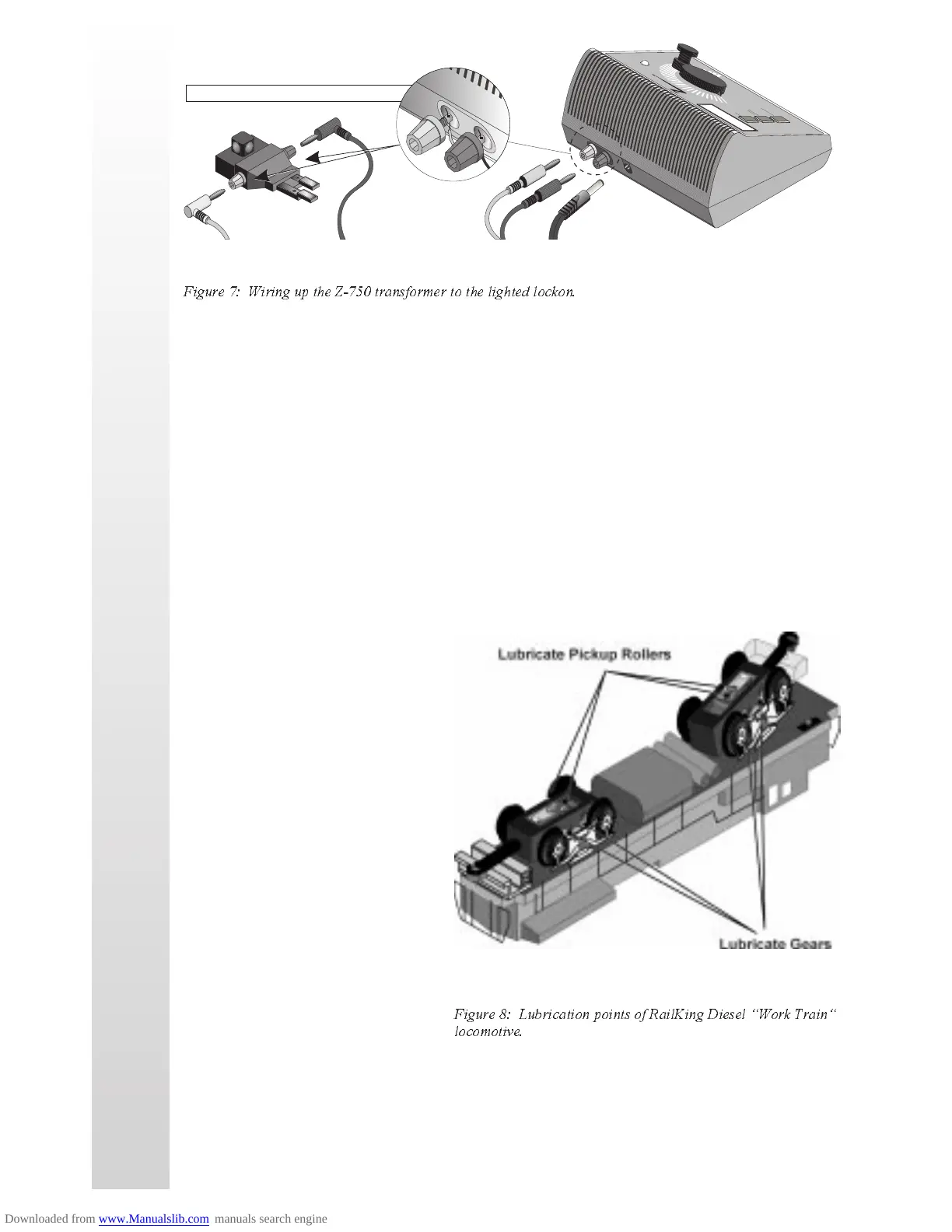

Figure 7: Wiring up the Z-750 transformer to the lighted lockon.
Figure 8: Lubrication points of RailKing Diesel Work Train
locomotive.
