Rain Evo 1 User Manual

R
AIN EVO
1
Battery Controller
Centralina a Batteria
Programmateur à piles
Programador a pila
ISTRUCTIONS
Technical Features
1 Completely waterproof
2 Battery powered
3 Manual and programmable working
4 Two daily irrigations
5 Weekly Calendar
6 User friendly programming
7 Function "Low Battery"
8 Freeze program function (Off/Rain)
9 Function “Count Down”
10 Sensor Connection
11 Rubber protection cover
6
Use 9 volt alkaline batteries only
6
Connect battery poles one by one
6
Check the current battery level at the beginning of the season
6
Be sure that controller is completely screwed in order to grant gasket sealing
6
Wait for 30 seconds between manual opening and closing in order to let
recharge the condenser
6
Static or working pressure minimum 0.4 bar - maximum 10 bar
6
A properly working is granted only if the controller is installed on Rain electric
valves
6
Effect the usual periodical maintenance of the electric valves
6
It is suggested to remove the controller during winter season
6
During programming session, after 20 seconds without pushing any button the
controller will come back to the first screen and will be saved only the
confirmed information
6
Water sprinkling devices must be installed in the open and in places supplied
with exhaust
Rain Evo represents the third generation of battery controller introduced by Rain S.p.A. in
the irrigation market.
The development of this new product is relative to the quality and easy-to-use; high qua-
lity of material and the attention given to the realization of the software make this product
to be in the van of the battery controllers market.
Easy and intuitive, the programming is particularly flexible thanks to the possibility of
manage the irrigation through a weekly calendar.
The battery controller Rain Evo
1
can be connected to the rain sensor, this device has to be
of mechanical type with two wires and has to be connected to the two red wires of the
controller; without the rain sensor the connection wires have to be kept connected, a pos-
sible disconnection could cause a situation of OFF RAIN what is the same of cancelled irri-
gation.
The Rain Evo
1
is powered by two 9 volt batteries. Put them in the apposite accommoda-
tion after having connected the controller to the electric valve, this allows the controller to
reset and put it in close position the valve.

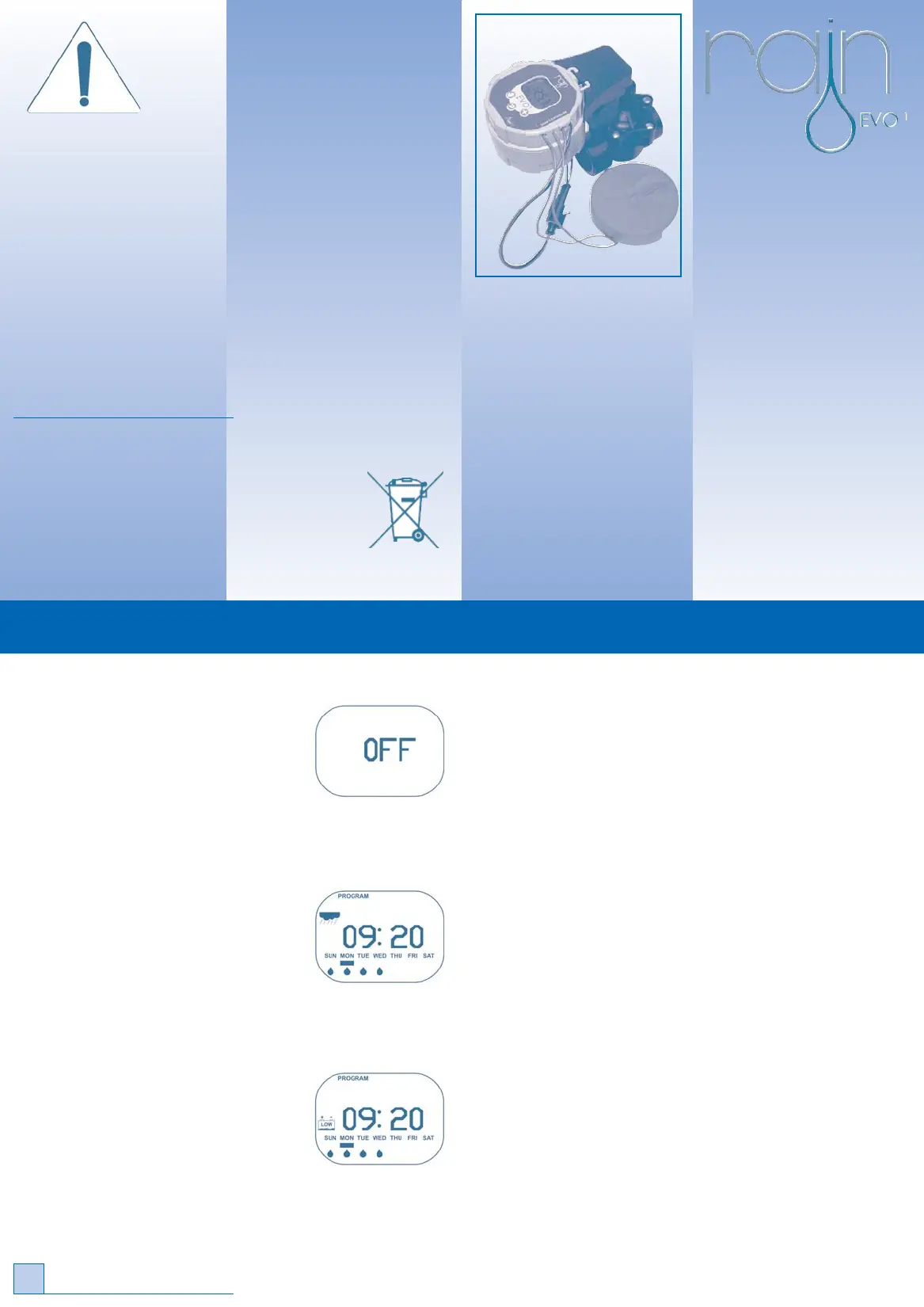

DESCRIPTION
“Low Battery” function
When batteries are discharged, an icon as the figure will appear on the
display and the valve will remain stopped.
Change the batteries and set the controller again.
Connecting a rain sensor
To connect a two wires sensor cut the red wire of Rain Evo .
When weather condition dictates, the controller stops watering and on the
display will appear an icon as the figure.
Leave unchanged the wire if you don't connect rain sensor.
Freeze program function (Off/Rain)
With this function is possible to stop watering and freeze the program without
change the setting.
6 Press the + button to active and inactive the setting, the display will
appear as the figure.
5
RAIN S.p.A. -
20023 CERRO MAGGIORE (Mi) Italy - Via Kennedy, 38/40
http://www.rain.it - E-mail: info.rain@rain.it
WARNING
Do not disperse in the environment, do not swallow as urban refusal and make sepa-
rate collection.
Require information to the supplier for the recovery and draining upon the purcha-
se of a new devise.
Do not use in a wrong manner a device or some of its parts since it could have
demaging and dangerous effects for the health and for the environment.
