Installing and Attaching the Tweeter
Installation Location: Door Installation (front/rear), rear installation, side view mirror area installation,
dashboard installation, and rear windshield deck installation
Surface installation: Fig. 3
• Place the ground plate (U) on the installation place. Scribe the holes for mounting 2 x Ø 3,5 mm
and for the cable Ø 5 mm and drill them.
• Fix the ground plate (U) with the enclosed screws (R) and sheet metal nuts (B).
• Pull the cables through the relevant holes and place tweeter (J) into the ground plate (U).
• Put the surface installation ring (O) over the tweeter (J) and fix it on the ground plate by twisting.
• The tweeter can be moved in all directions now.
• Connect the tweeter-cable with the crossover. The cable with the red marking is “+”

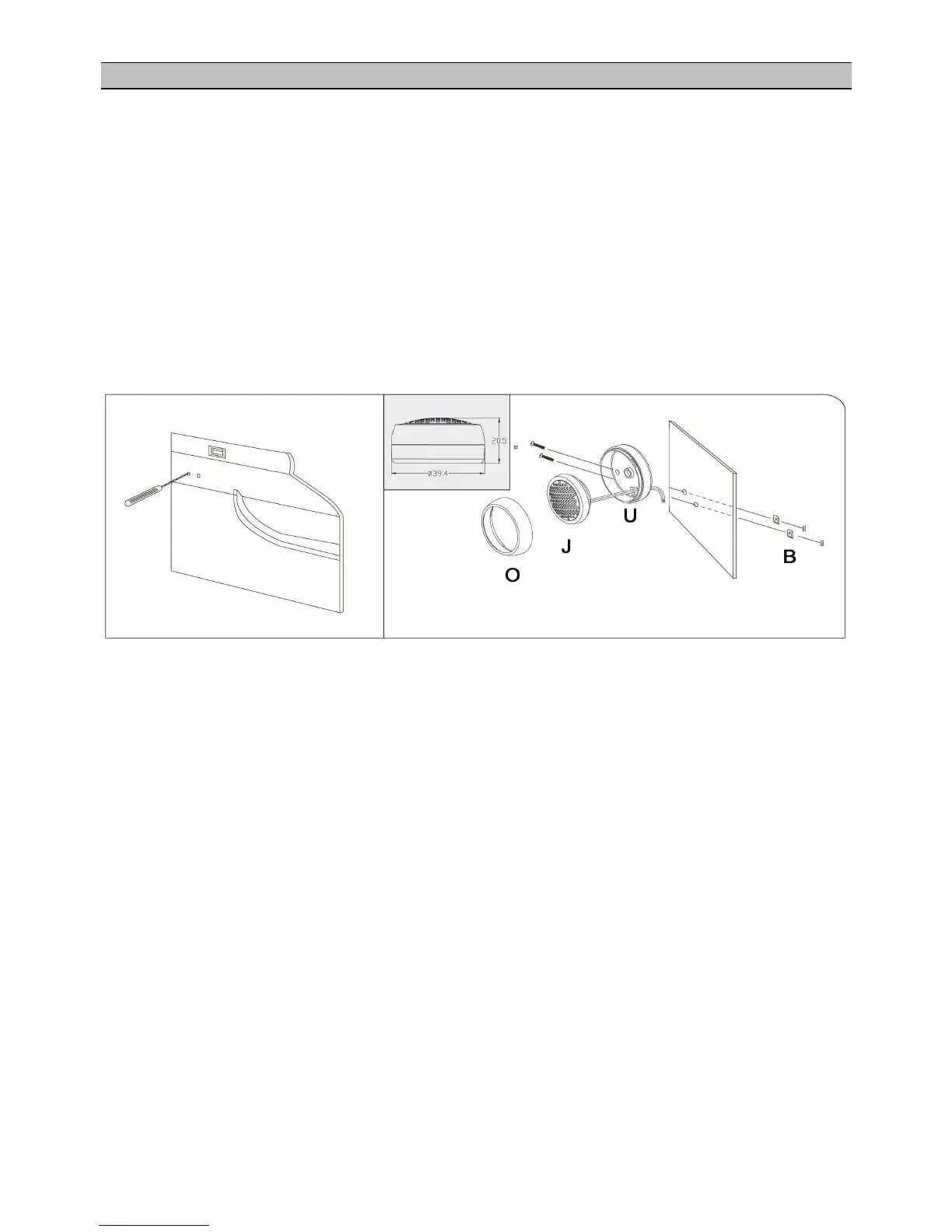

Fig. 3: Surface installation
