J
G
INSET A
13
H152
H152
34
14
50
N9
H164
H164
D
A B
C
D
ROCK WALL INSET

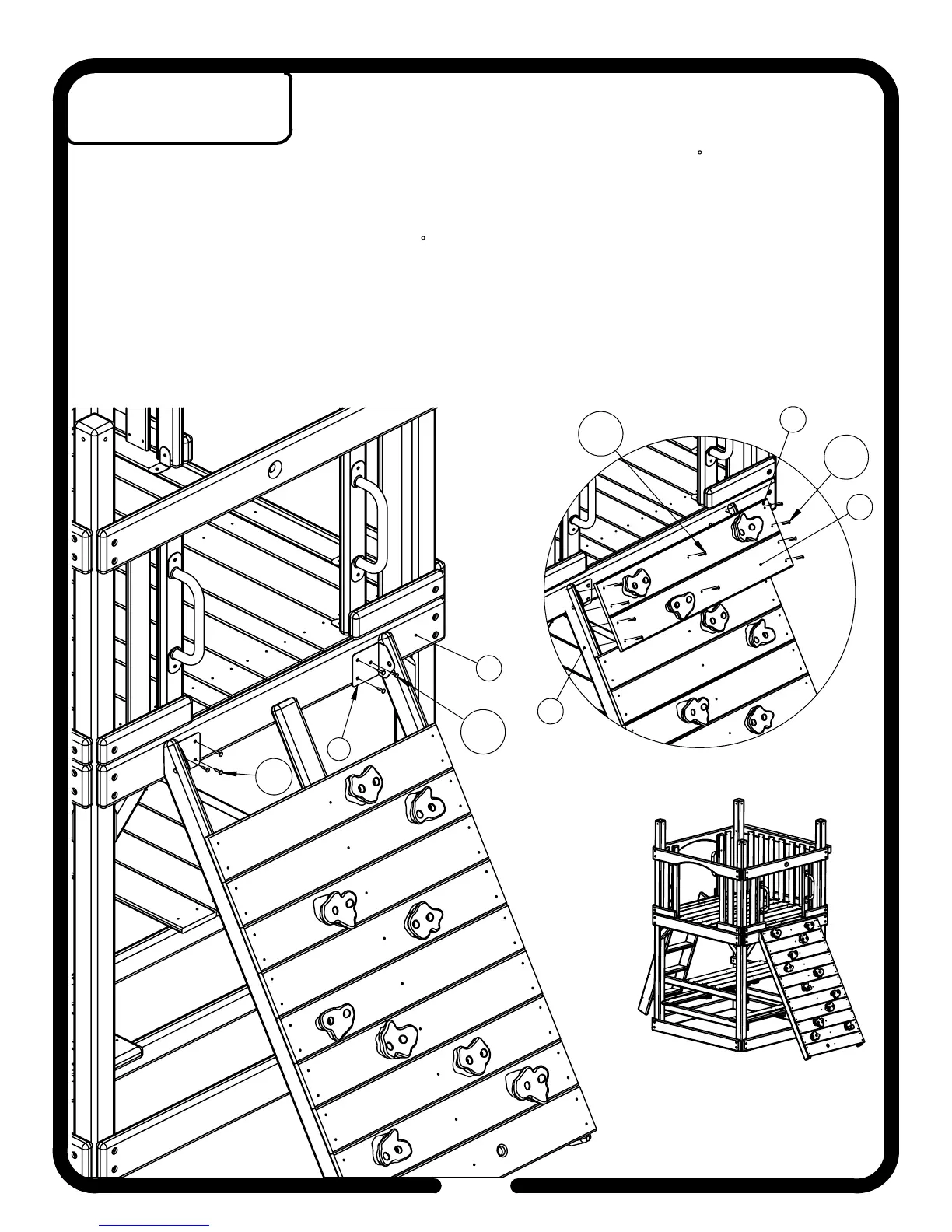

1. Center assembled Rockwall against 4 Hole Facia
(50)
. The bottom edge of 90
Ladder Brackets
(N9)
should be approximately flush with the bottom edge of the 4 Hole Facia
(50)
.
*NOTE: Pre-drill holes for #14 Hardware (H164) with a 1/8" drill bit.
2. Attach Rockwall to the set by attaching 90
Degree Brackets
(N9)
to the 4 Hole Facia
(50)
using #14
Hardware
(H164)
.
*NOTE: Tighten all Hardware from Step 13 at this time.
3. Attach the top two Rock Wall Boards
(13) (14)
to the Rock Wall Legs
(34)
using #8 Hardware
(H152)
(as shown in Inset A).
*NOTE: If installing Double Wall Wave Slide opposite of the swing beam (B), install Rock Wall
on side C (as shown in ROCK WALL INSET).
32
Step 14
Rockwall Assembly
