B
1 3/4"
1 1/4"
DETAIL A
50
75
81"
52"
52
77
H56
H4
H17
H11
H3
76
50
H108
H1
75
H108
H1
50
51
76
75
76
C
1 3/4"
DETAIL B
52
75
*NOTE: Pre-drill all holes for Lag Bolts with the appropriate drill bit.
*NOTE: Do not tighten hardware in #1 at this time.

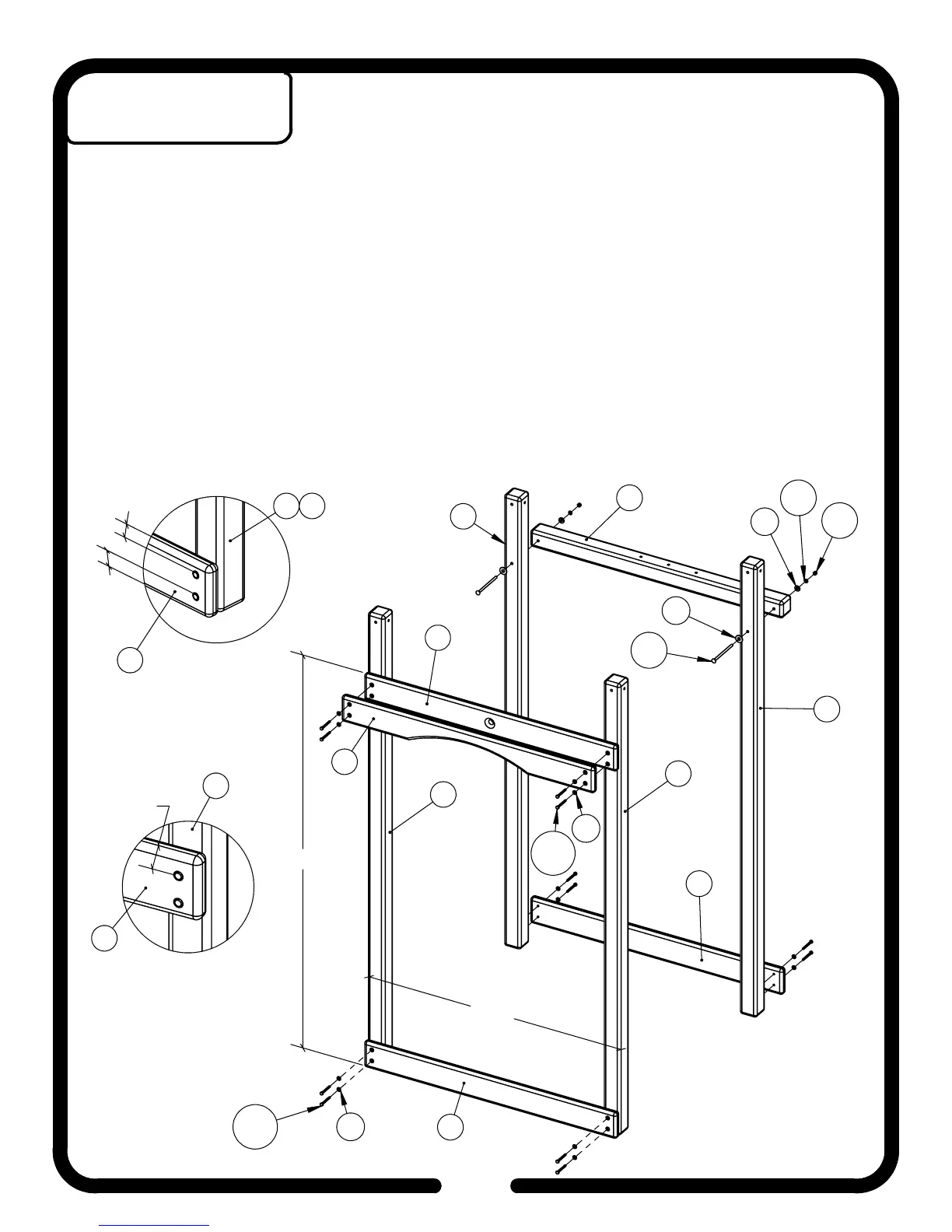

1. Lay Corner Uprights
(76)
on the ground. Attach Top Joist with Swing Holes
(77)
to Corner Uprights
(76)
using 3/8" Hardware
(H3) (H11) (H17) (H56)
and 1/2" Hardware
(H4)
.
*NOTE: 4 Hole Facias (50) must be flush with the bottoms and sides of Corner Uprights (75)
(76), and they must be oriented as shown in Detail A.
*SUGGESTION: When installing Facias, put bottom lag bolts in first and check that
measurements are correct and assembly is square before inserting top lag bolts.
2. Attach 4 Hole Facia
(50)
to Corner Uprights
(76)
using 5/16" Hardware
(H108)
and 1/4" Hardware
(H1)
.
3. Lay Corner Uprights
(75)
on the ground and attach 4 Hole Facia
(50)
to Corner Uprights
(75)
using
5/16" Hardware
(H108)
and 1/4" Hardware
(H1)
. The Facia
(50)
must be flush with the bottom of
the Uprights
(75)
.
4. Attach 4 Hole Facia with Rope Hole
(52)
to Corner Uprights
(75)
using 5/16" Hardware
(H108)
and
1/4" Hardware
(H1)
. The Facia
(52)
must be
81"
up from the bottom of the Uprights and oriented
as shown in Detail B..
*NOTE: If installing Double Wall Wave Slide opposite the swing beam side (B), install
Arched Facia (51) in place of 4 Hole Facia w/Rope Hole (52).
B
18
Step 1
Upright Assembly
To Next Page
