B
52"
52"
H28
H28
76
50
75
50
50
H1
H108
H108
H1
50
76
1 1/4"
1 3/4"
DETAIL A
*NOTE: Pre-drill all holes for Lag Bolts with the appropriate drill bit.
*NOTE: Holes in 4 Hole Facias (50) must be offset (as shown in Detail A).

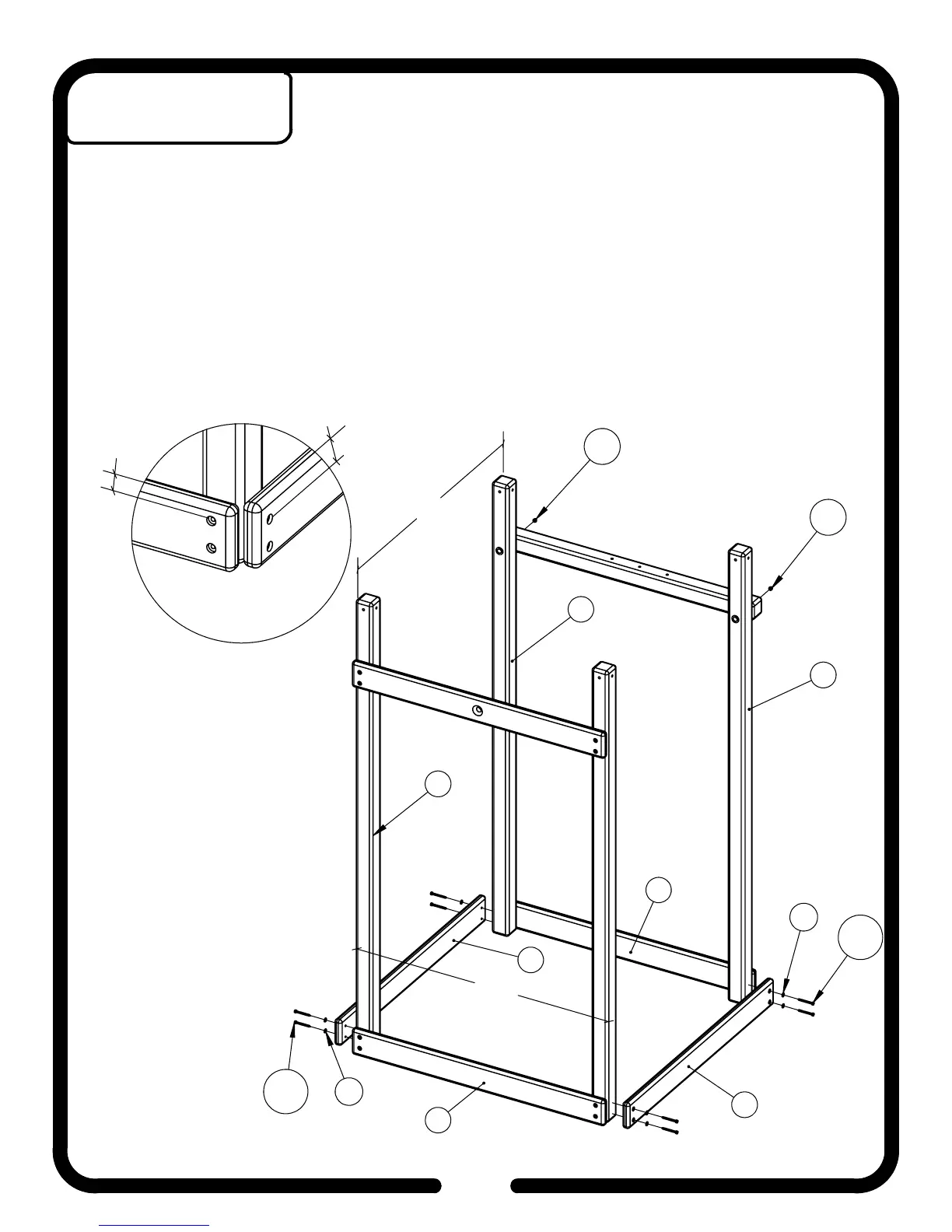

1. Stand up assemblies from Step 1 and attach 4 Hole Facias
(50)
to Corner Uprights
(75) (76)
using
5/16" Hardware
(H108)
and 1/4" Hardware
(H1)
.
2. Ensure assemblies are level and square, then finish tightening hardware from Step 1.
3. Add 3/8" Acorn Nut
(H28)
to hardware from #1 in Step 1 and tighten.
19
Step 2
Upright Assembly
To Next Page
