FOUND IN
SHIP'S WHEEL
BAG
FOUND IN
TELESCOPE
BAG
*NOTE: Pre-drill all holes for Lag Bolts with appropriate drill bit.

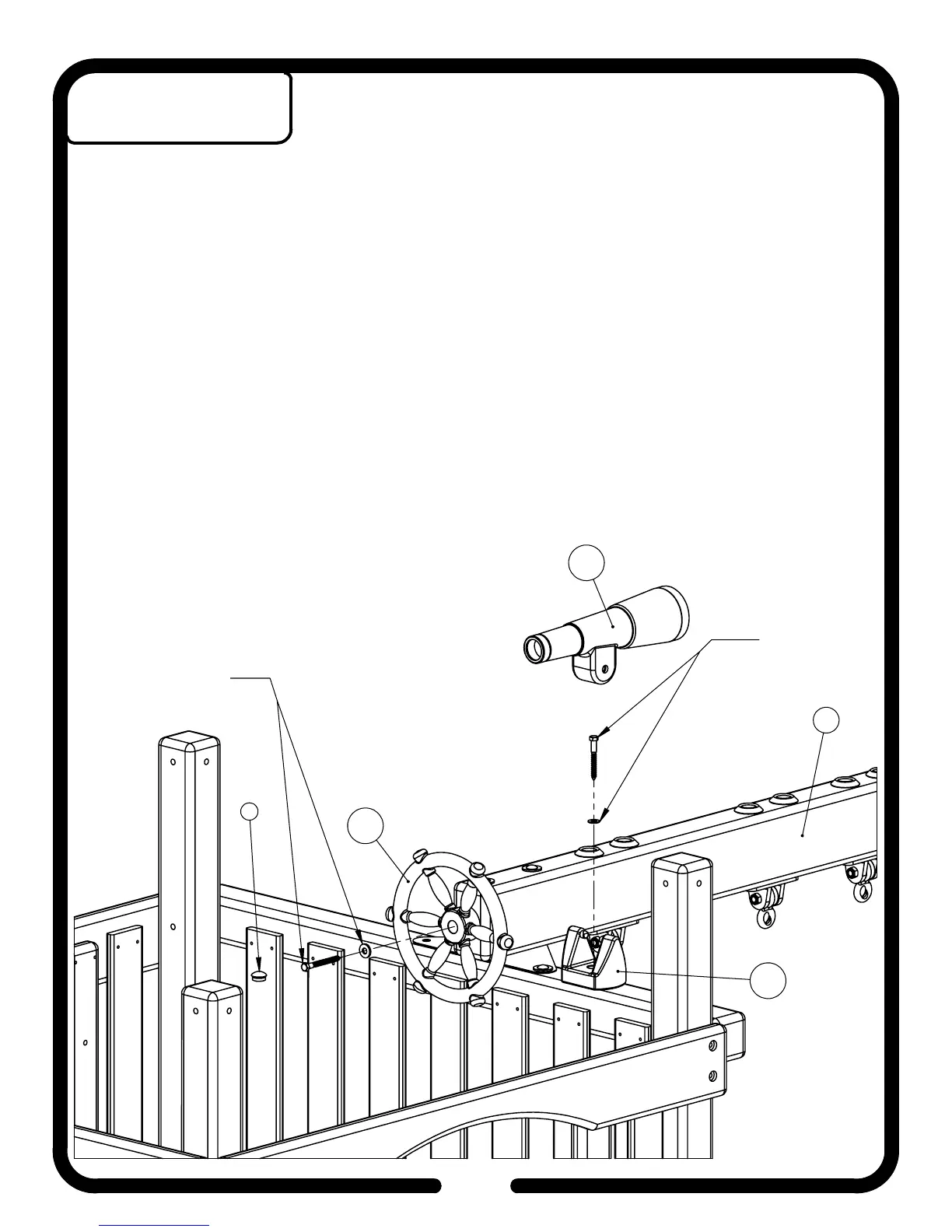

1. Attach Ship's Wheel
(N20)
to Swing Beam
(81)
using Hardware found in Ship's Wheel bag. Snap
Ship's Wheel Cover
(N20)
into the center of Ship's Wheel.
*NOTE: Do not over-tighten Ship's Wheel, or it will not rotate freely.
2. Attach Telescope Base
(N19)
to Top Joist with Swing Holes
(77)
using Hardware found in
Telescope Bag.
*NOTE: Do not over-tighten Telescope Base. Base should swivel.
3. Snap Telescope
(N19)
into Telescope Base.
39
Step 21
Ship's Wheel &
Telescope Installation
