Rainbow Super Funhouse - H194

9
12
14
10
13
15
2 @ 2 x 4 x 30" LEFT PICNIC TABLE LEG
(3-03-0078)
6 @ 1 x 4 x 36" TABLE BOARD (3-01-0165)
2 @ 2 x 4 x 30" RIGHT PICNIC TABLE LEG
(3-03-0079)
2 @ 2 x 4 x 39" SEAT SUPPORT (3-03-0081)
4 @ 5/4 x 4 x 36" SEAT BOARD
(3-09-0097)
1 @ 2 x 4 x 19" TABLE RUNNER
(3-03-0077)
2 @ 2 x 4 x 18 3/4" TABLE BRACE
(3-03-0080)
2 @ 2 x 4 x 19" TABLE SUPPORT
(3-03-0082)
11
16
1165
3078
3079
3081
3082
3080
3077
9097
797
798
2 @ 4 x 4 x 24" GLIDER BLOCK
(1-06-0882)
4 @ 4 x 4 x 5" LOWER GLIDER BLOCK
(1-06-0883)
6882
6883
*NOTE: Hardware to attach Glider Seat to the Glider Handle comes in the glider box.

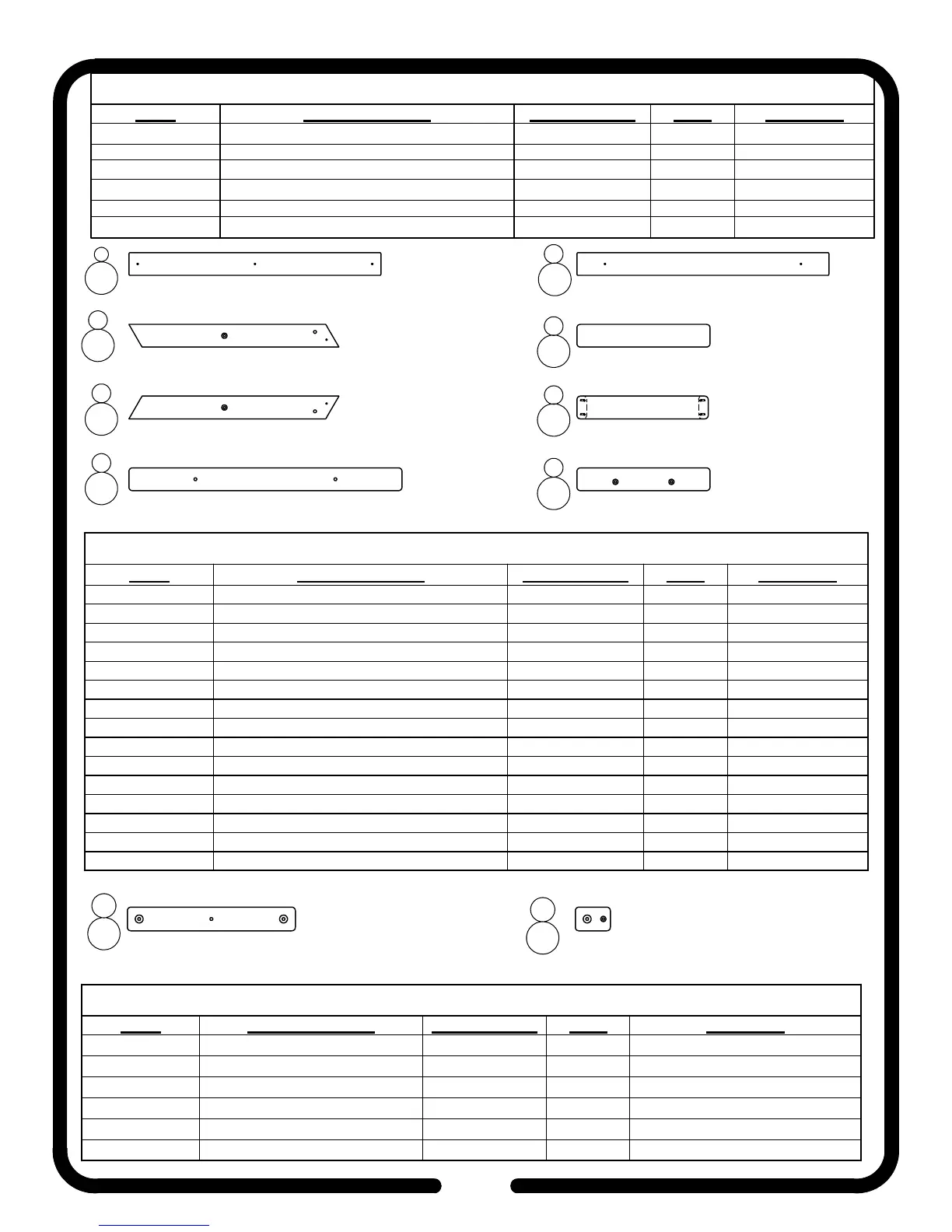

Box Kit Picnic Table Parts List
F/N# DESCRIPTION DIMENSION QTY Found In
H146 Hex Head Bolt 1/4" x 2 1/2" 8 5-46-0769
H154 Phillips Wood Screw #8 x 2" 16 5-46-0769
H152 Phillips Wood Screw #8 x 1 1/2" 22 5-46-0769
H1 Flat Washer 1/4" 8 5-46-0769
H9 Lock Washer 1/4" 8 5-46-0769
H32 4 Prong T-Nut 1/4" 8 5-46-0769
Box Kit Glider Parts List
F/N# DESCRIPTION DIMENSION QTY Found In
H57 Carriage Bolt 3/8" x 7" 4 5-46-0754
H140 Hex Head Bolt 3/8" x 10" 2 5-46-0754
H139 Hex Head Bolt 3/8" x 9" 2 5-46-0754
H100 Lag Bolt 1/4" x 4 1/2" 4 5-46-0754
H4 Flat Washer 1/2" 4 5-46-0754
H3 Flat Washer 3/8" 10 5-46-0754
H1 Flat Washer 1/4" 4 5-46-0754
H11 Lock Washer 3/8" 10 5-46-0754
H17 Standard Nut 3/8" 4 5-46-0754
H24 Nylock Nut 3/8" 2 5-46-0754
H28 Acorn Nut 3/8" 6 5-46-0754
G1 Fiesta Glider Seat 1 5-21-0859
N29 3/8" Bolt Cup 2 5-21-0859
N208 3" Nylon Swing Hanger 4 5-21-0859
G2 Fiesta Glider Handle 2 5-21-0859
Box 4-Chain Tire Parts List
F/N# DESCRIPTION DIMENSION QTY Found In
H196 Tire Swing Eyebolt 3/8" x 3" 3/1 5-46-0263/5-46-0589
H14 Tire Swing Washer 3/8" 6/2 5-46-0263/2-46-0589
N30 Wide Jaw C-Link 1/4" or 6mm 3/1/1 5-46-0263/5-46-0589/5-21-0859
H24 Nylock Nut 3/8 3/1 5-46-0263/5-46-0589
N323 Short Chain 6 5-21-0859
N169 4-Chain Tire Swing 1 5-21-0859
