Rainbow Super Funhouse - H196

A
INSET A
N323
N30
N323
N30
H196
N169
N30
BB
SECTION
B-B
C
DETAIL A
H196
H14
H14
H24
N169

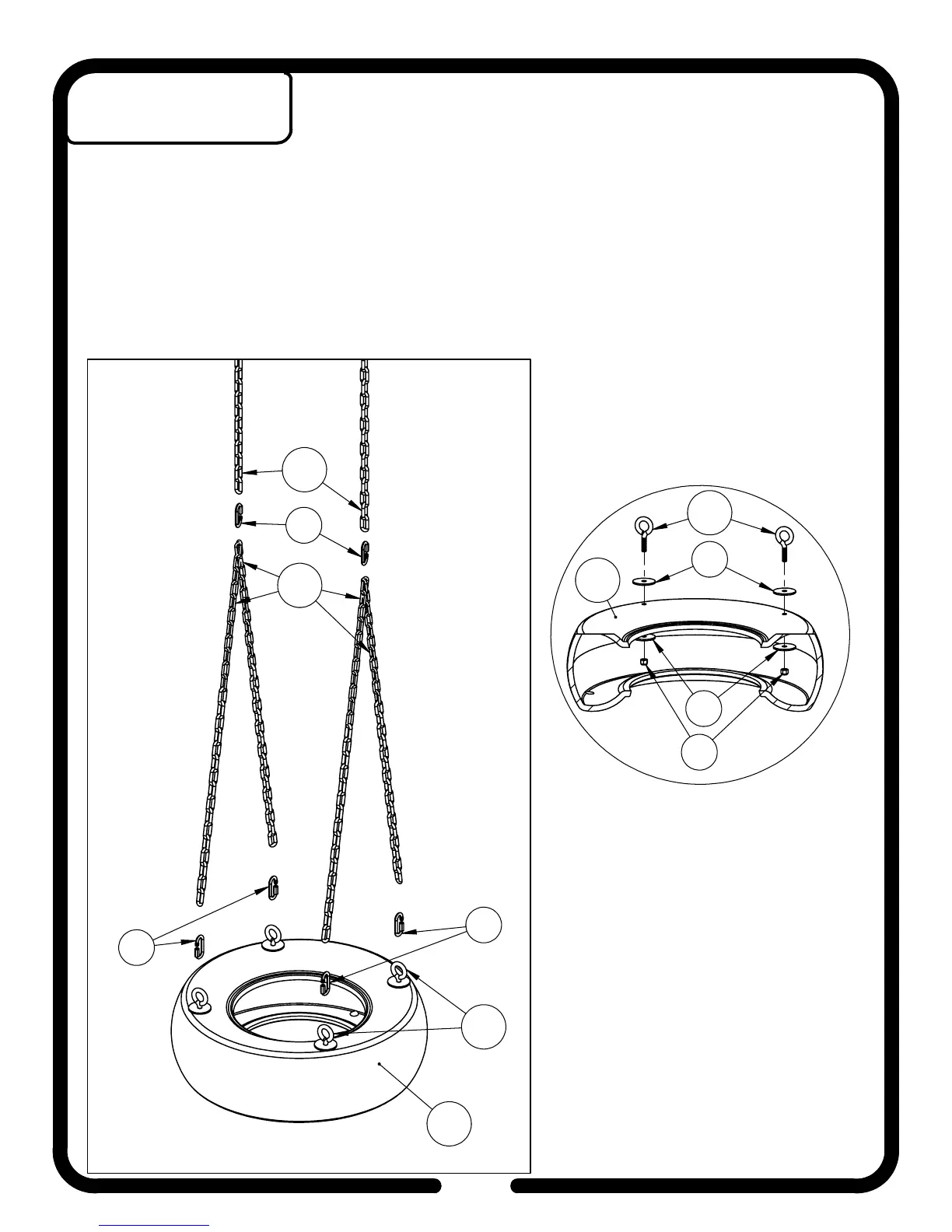

1. Attach Eye Bolts (H196) to Tire (N169) using 3/8" Hardware (H14) (H24) (as shown in Detail A).
2. Open C-Links (N30) . Divide the six Chains (N323) into groups of three chains. Connect each
group of Chains (N323) together using C-Links (N30) (as shown in Inset A).
3. Attach Chains (N323) to Eye Bolts (H196) using C-Links (N30) (as shown in Inset A).
4. Securely close all C-Links (N30) by tightening with a crescent wrench.
46
Step 27
4-Chain Tire Swing
Assembly
