A
N20
H166
H7
N20
N19
H7
H166
N19
1169
9132
9133

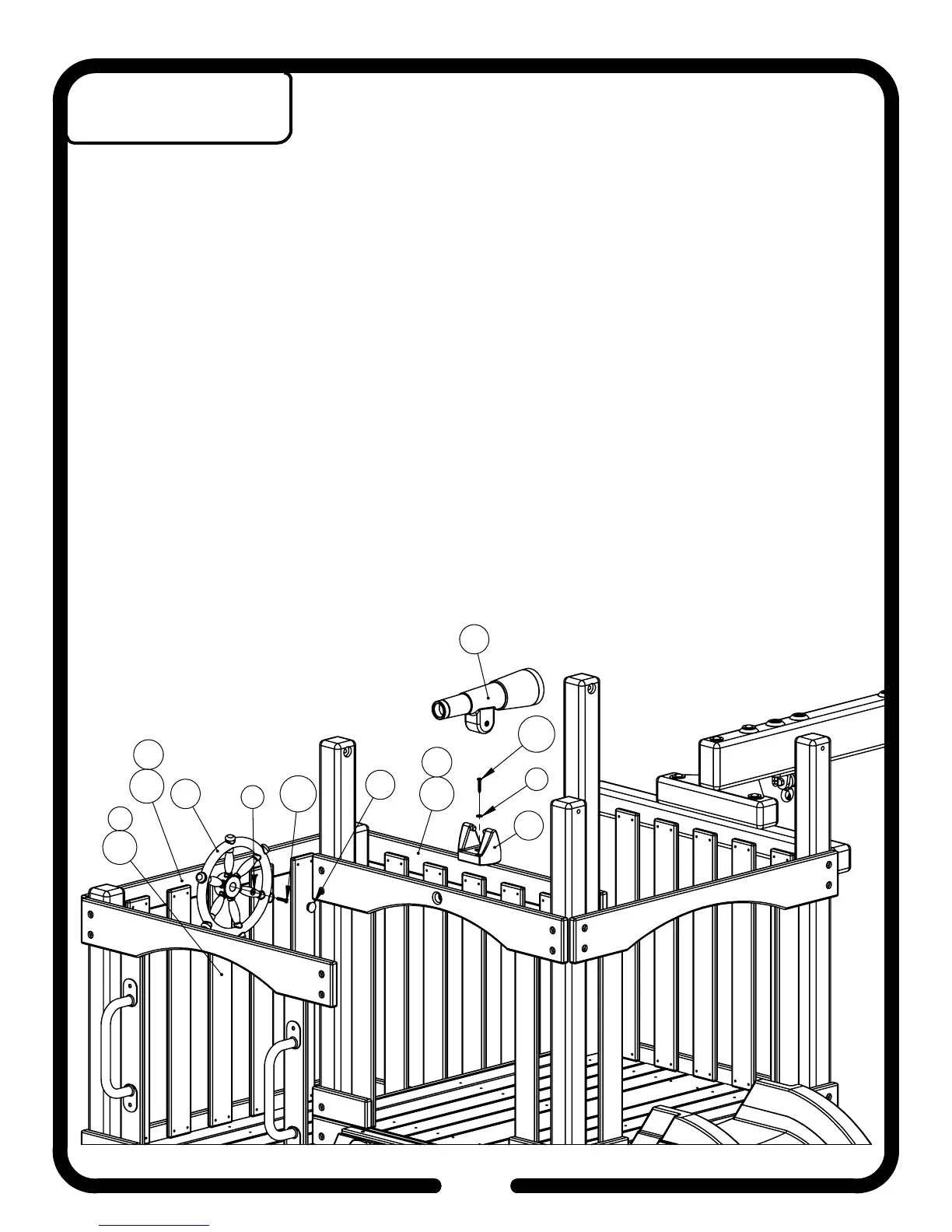

WOOD ROOF REMOVED
FOR CLARITY OF VIEW.
235
234
23
*NOTE: Pre-drill 1/4" holes for #14 Hardware (H166).
*NOTE: Do not fully tighten hardware. Ship's Wheel and Telescope should rotate freely.
1. Position Ship's Wheel
(N20)
against Rail Upright
(23) (1169)
and attach using 1/4" Hardware
(H7)
and #14 Hardware
(H166)
. Be sure that #14 Hardware
(H166)
goes through Rail Upright
(23)
(1169)
and into Facia
(234) (9132)
. Snap cap into place.
2. Center Base of Telescope
(N19)
on Facia
(235) (9133)
and attach using 1/4" Hardware
(H7)
and
#14 Hardware
(H164)
. Snap Telescope
(N19)
into base.
47
Step 28
Telescope and Ship's
Wheel Installation
