Rainbow Super Funhouse - Page 30

3103
H155
N8
H9
H192
H32
9138
3104
H155
224
240
225

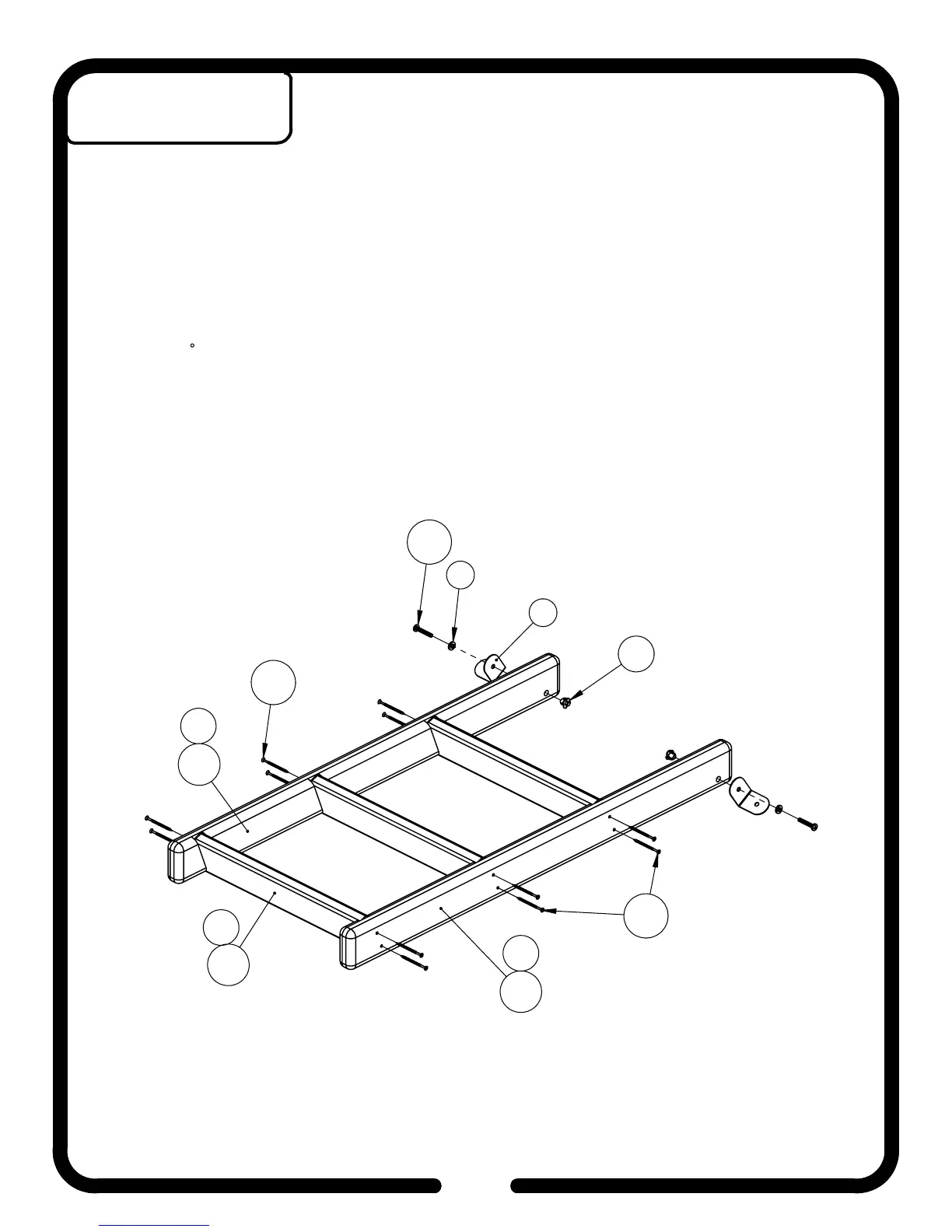

*NOTE: To ease assembly, assemble Ladder on a flat surface.
1. Use a small hammer or mallet to pound 1/4" T-Nuts (H32) into Ladder Legs (224) (3103) (225)
(3104) on the sides with the notches cut out.
2. Flush surfaces of Left Step Ladder Leg (224) (3103) and Right Step Ladder Leg (225) (3104) .
3. Center Steps (240) (9138) on Ladder Legs (224) (3103) (225) (3104) and attach using #8
Hardware (H155).
4. Attach 90
Brackets (N8) to Ladder Legs (224) (3103) (225) (3104) using 1/4" Hardware (H9)
(H32) (H192) .
29
Step 11
Ladder Assembly
