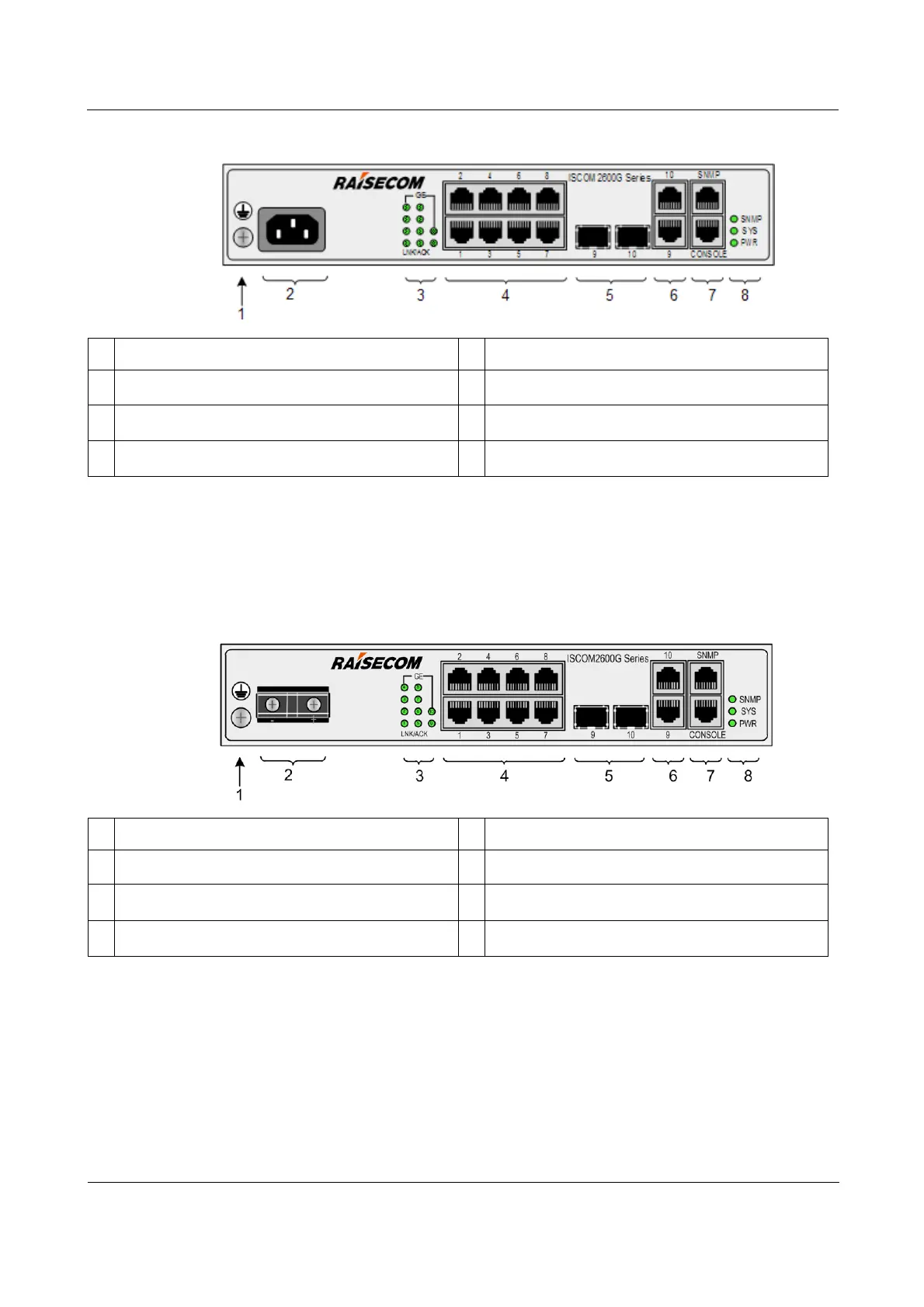

Figure 3-1 Front panel of ISCOM2608G-2GE-AC
1
Ground terminal
2
Power interface
3
Service interfaces (1–8) LEDs
4
Service downlink interfaces (1–8)
5
Service uplink SFP optical interfaces (9–10)
6
Service uplink GE interfaces (9–10)
7
SNMP interface and Console interface
8
PWR, SYS, and SNMP LEDs
ISCOM2608G-2GE-DC
Figure 3-2 shows the front panel of the ISCOM2608G-2GE-DC.
Figure 3-2 Front panel of ISCOM2608G-2GE-DC
1
Ground terminal
2
Power connector
3
Service interfaces (1–8) LEDs
4
Service downlink interfaces (1–8)
5
Service uplink SFP optical interfaces (9–10)
6
Service uplink GE interfaces (9–10)
7
SNMP interface and Console interface
8
PWR, SYS, and SNMP LEDs
ISCOM2608G-2GE-PWR-AC
Figure 3-3 shows the front panel of the ISCOM2608G-2GE-PWR-AC.
