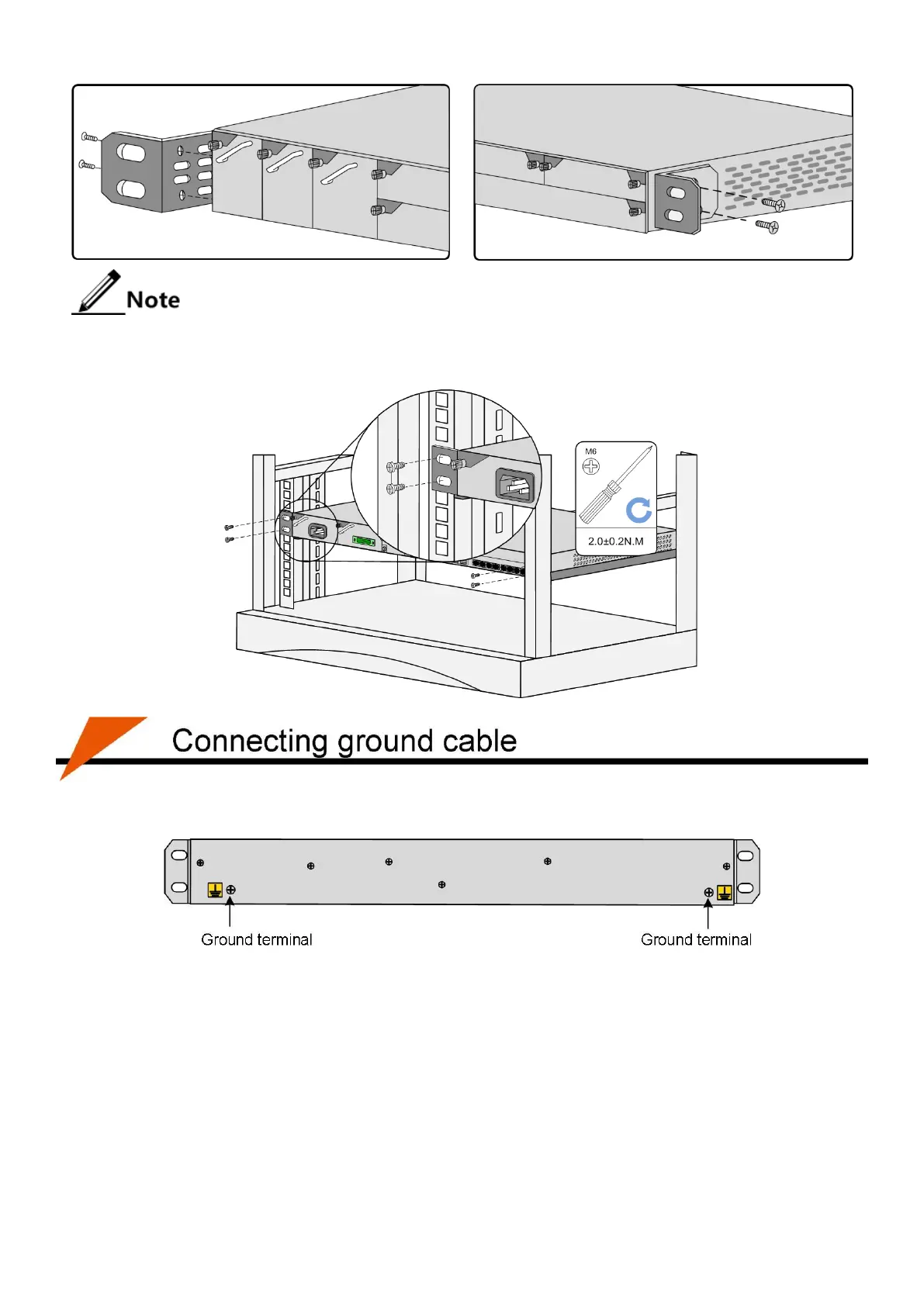

4. Install brackets. Install brackets on both sides of the device.
When installing the ISCOM5508-GP in a 21-inch cabinet, purchase brackets that are fit for the 21-inch cabinet.
5. Install the device in a cabinet. Put the ISCOM5508-GP on the guide rail and slide it inward until that the brackets
fit snugly to the mounting brackets. Fix the brackets to the mounting brackets with screws.
1. There are 2 ground terminals on the back of the ISCOM5508-GP as shown in the figure below. Choose one as required.
2. Unscrew the screw counterclockwise. Put the components in sequence as shown below and then tighten the screw
clockwise.
