Raisecom ISCOM6820-GP Quick Installation Guide

4
GE4B
Slot 2 and Slot 3
4 GE subcards
Power module
RPA1101-SI-220S12
Slot 4 and Slot5
110/220 VAC power module
RPD1101-48S12
Slot 4 and Slot 5
-48 VDC power module
Fan module
FANS306
Slot 6
Fan module

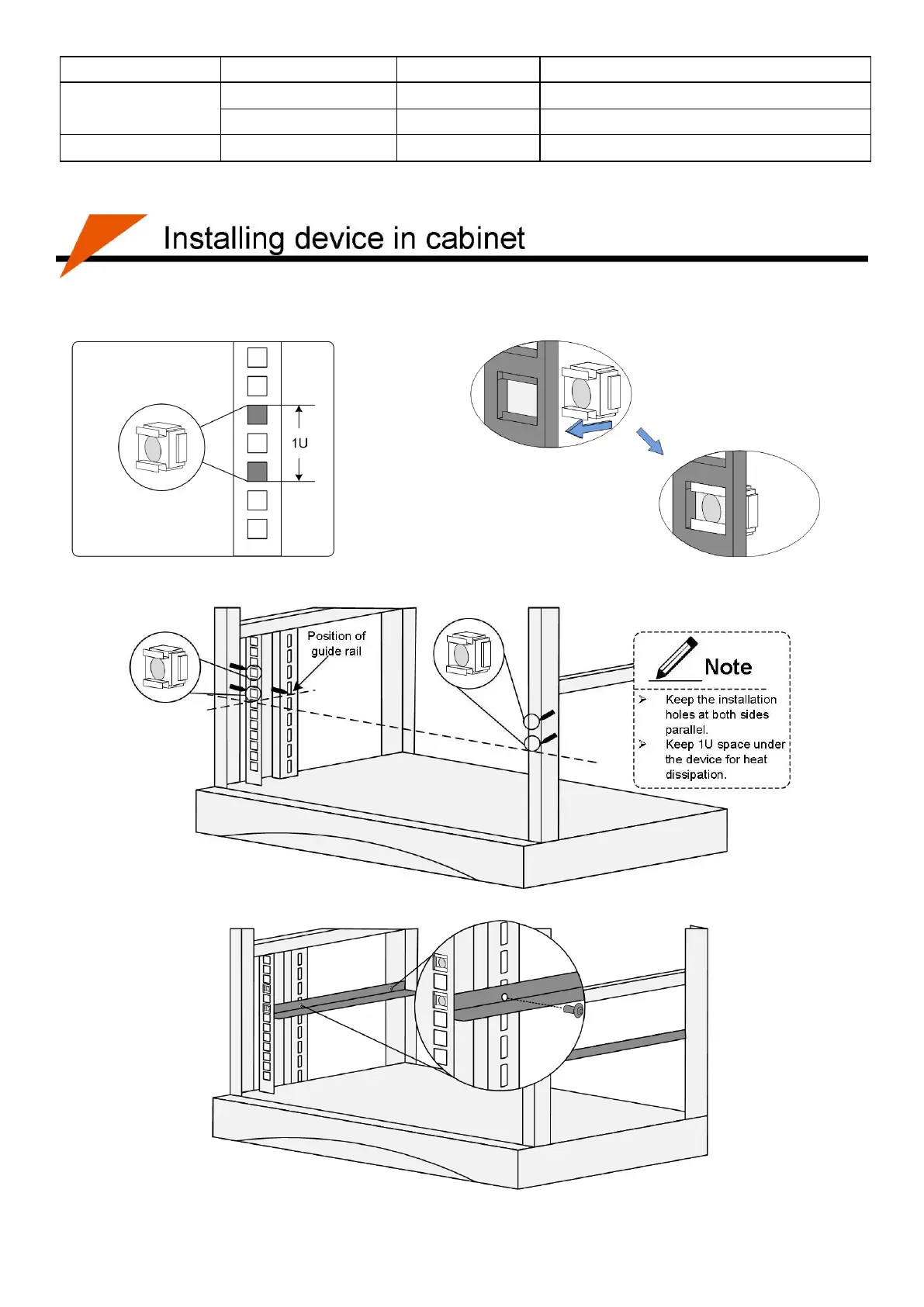

1. Install floating nuts. The ISCOM5508-GP is 1U high. The fixed holes in the bracket correspond to the installation
holes between the two distant holes in the mounting bracket of the cabinet.
2. Mark the position of the guide rail. Install guide rails before installing the ISCOM5508-GP in the cabinet. Pinpoint
the location of the guide rails according to the bottom edges of the installation holes and mark the position.
3. Install guide rails. Install guide rails according to the mark made in step 2.
