Rajant BreadCrumb DX2 Series - Enclosure Features

3|PAGE
RAJANTBREADCRUMB®DX2 QUICKSTARTGUIDE
Enclosure Features
_______________________________________
The external features of the DX2 enclosure are shown in the following images.

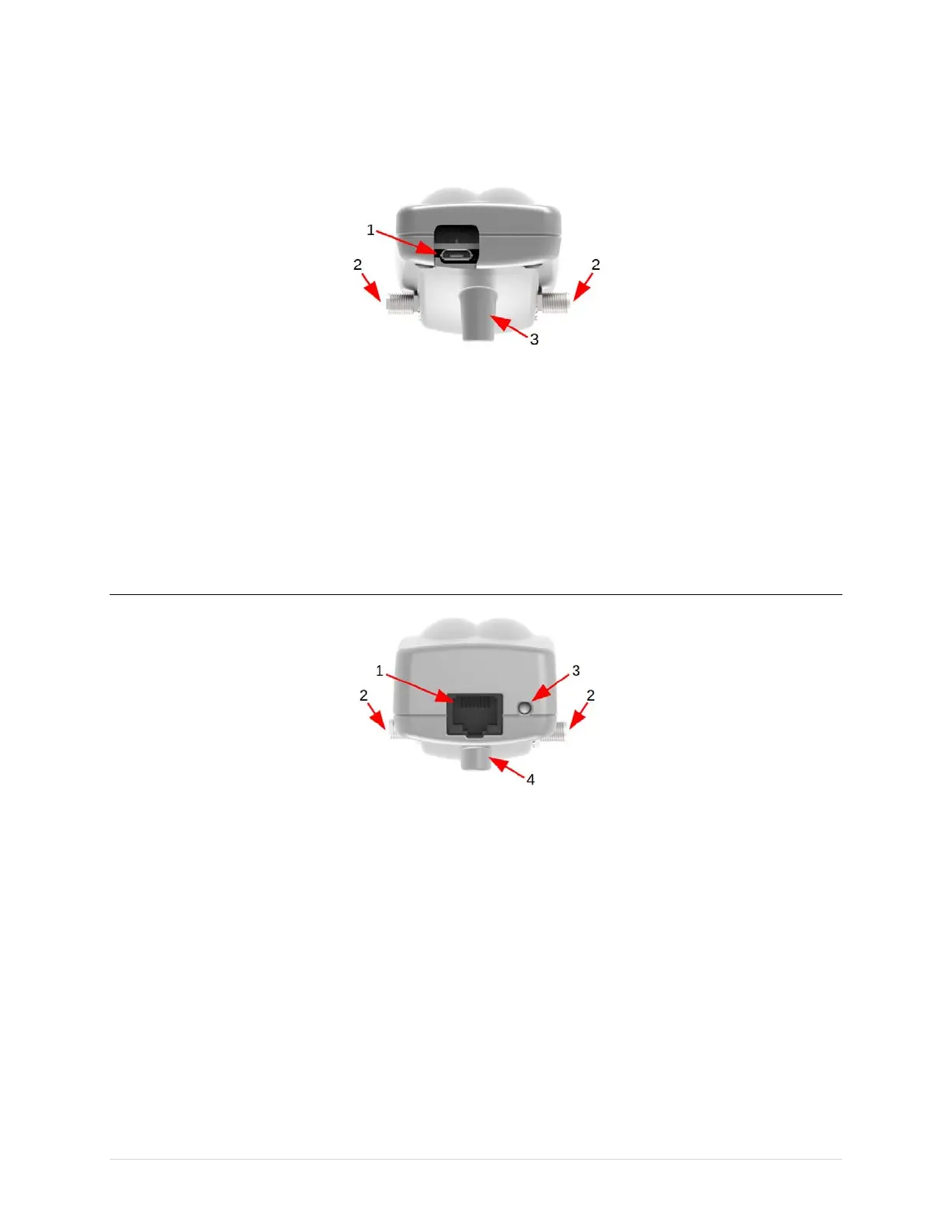

Figure 1: BreadCrumb DX2 Enclosure Features (Front)
(1) Micro-B female USB connector (shown without soft protective cover or soft cable boot)
(2) SMA female antenna connectors (left “A”, right “B”)
(3) One of two standoffs for mounting
Figure 2: BreadCrumb DX2 Enclosure Features (Back)
(1) RJ45 female connector for Ethernet and PoE (Power over Ethernet)
(2) SMA female antenna connectors
(3) Status LED
(4) One of two standoffs for mounting
