RAK2245 User Manual V1.2
 Supports SPI interface.
 Integrated the Ublox MAX-7Q GPS Module.
2
LoRa Concentrator RAK2245 Stamp
Module
2.1 Overview

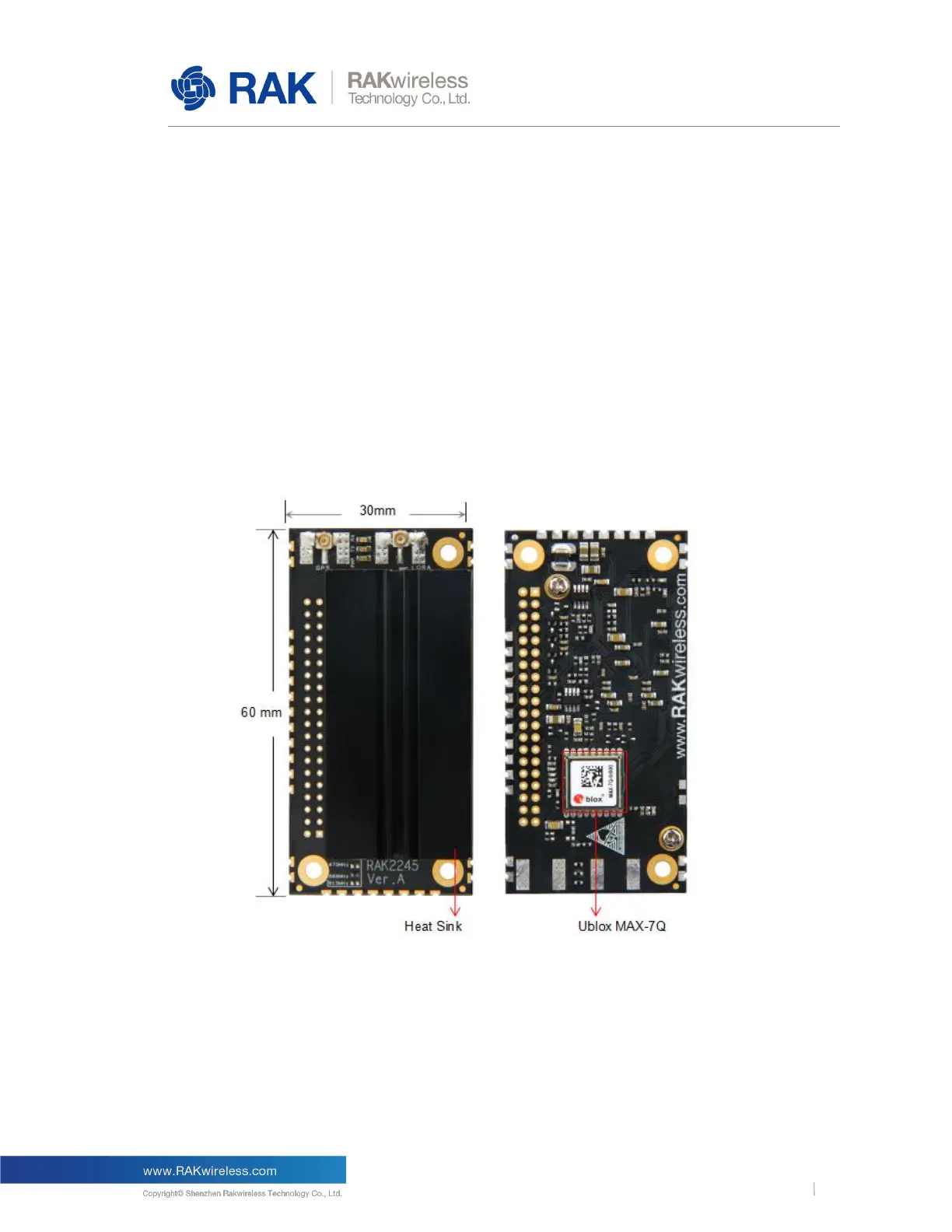

The module which is the stamp edition as shown below. The outer dimension of the
RAK2245 is 30.0 x 60.0 x 14.9mm (nominal value). And the 14.9mm includes the
9.5mm heat sink.
Figure 1 | Module Overview
2.2 Block Diagram
The block diagram of RAK2245 shown as below.
