318 SERVICING AND MAINTENANCE
Replacing Exterior Bulbs
Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park
And Turn — If Equipped
See below steps to replace.
1. Open the hood.
2. Disconnect and isolate the negative battery
cable.
3. Remove the six plastic push-in fasteners
that secure the upper radiator seal to the
grille support and both fender ledges.
4. Remove the two plastic push-in rivets that
secure the upper radiator seal to the
radiator.
5. Remove the upper radiator seal from the
vehicle.
6. Remove the two headlamp assembly
attachment screws.

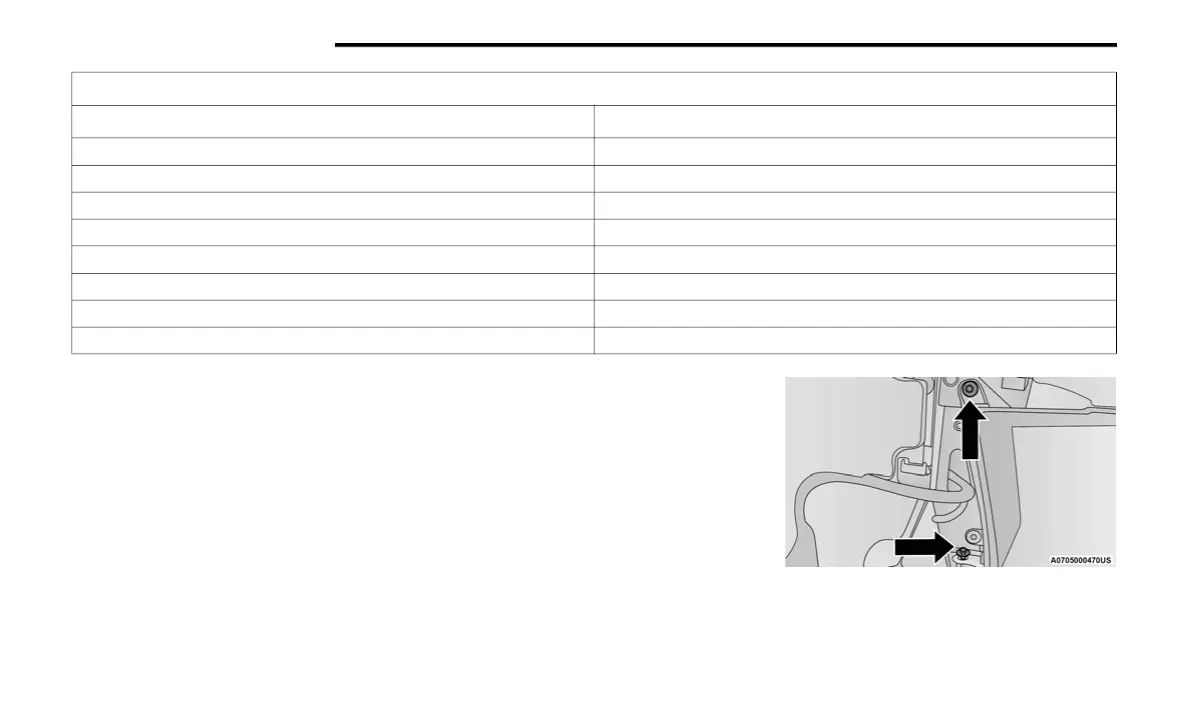

Headlamp Assembly Attachment Screw Locations
Center High Mounted Stop Lamp (CHMSL) 921K
Rear Cargo Lamp 921
LED Center High Mounted Stop Lamp (CHMSL)/Cargo Lamp LED (Serviced at an authorized dealer)
Base Rear Tail/Turn and Stop Lamp 3157K
Premium Rear Tail/Turn and Stop Lamp LED (Serviced at an authorized dealer)
Premium Backup Lamp 7440/W21W
Backup Lamp 921
Rear License Plate Lamp 194
Exterior Bulbs
Bulb Name Bulb Number
