GETTING TO KNOW YOUR VEHICLE 91

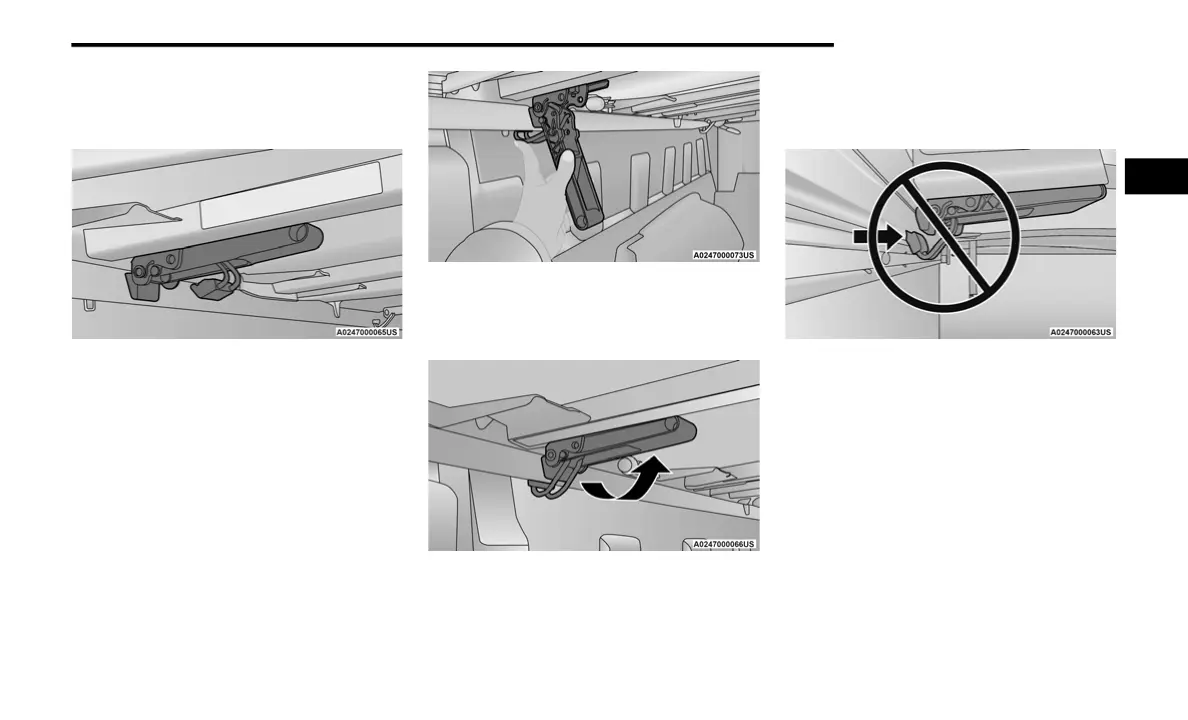

2. Pull down on the first set of clamp handles
to release the clamps from the stowed
position.
Stowed Position
3. Push clamp wires up and under the flange
of the box (or flange of the Ram Box rail, if
equipped) to the semi clamped position.
Semi Clamped Position
4. Push clamp handles upward to the clamped
position to properly engage the clamps.
Clamped Position
NOTE:
Once clamped, be sure the clamps are not
improperly attached to the truck bed flange.
Improper Clamp Position
5. Disengage the stowage straps.
6. Unfold the center and rear panels to the
intermediate position.
2
