Remove the jack and tools by turning the wing bolt
counterclockwise, remove the wing bolt and then slide the
assembly out from under the seat.
Remove the jack and tools from the bracket assembly. Turn
the jack-turn-screw counterclockwise to release jack from
bracket assembly.

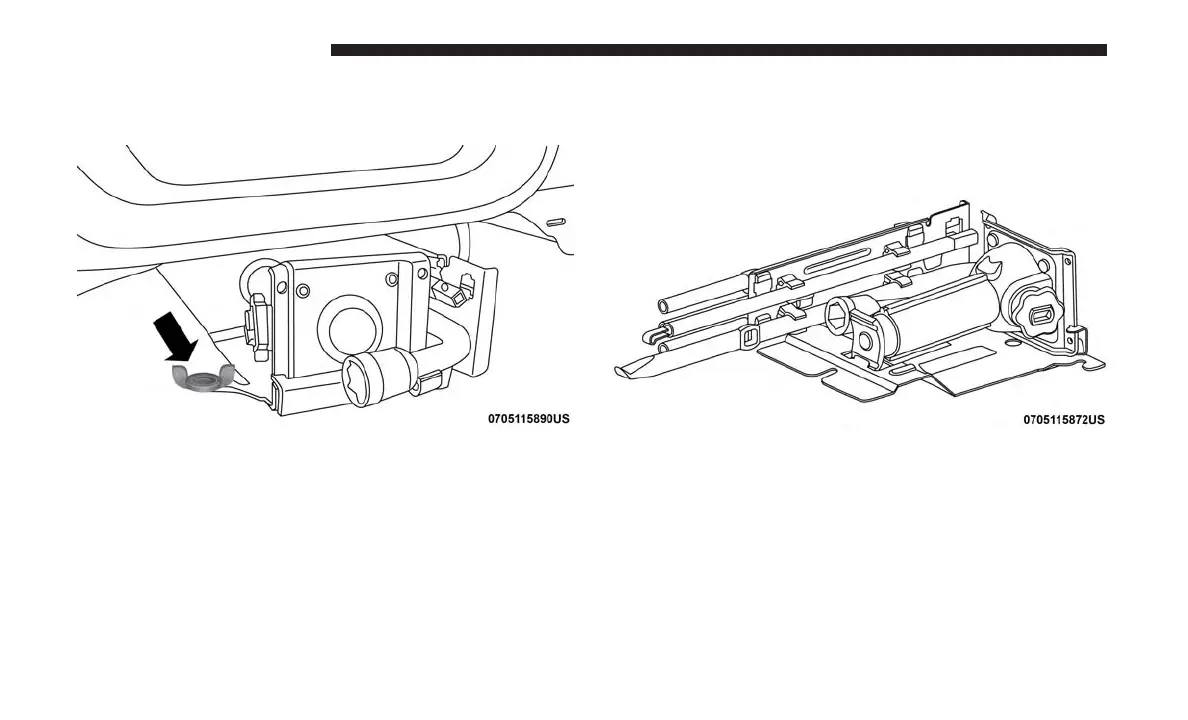

Wing Bolt/Jack And Tools (2500/3500 Series) Jack And Tools Bracket Assembly
486 IN CASE OF EMERGENCY
