There are two ways to assemble the tools:

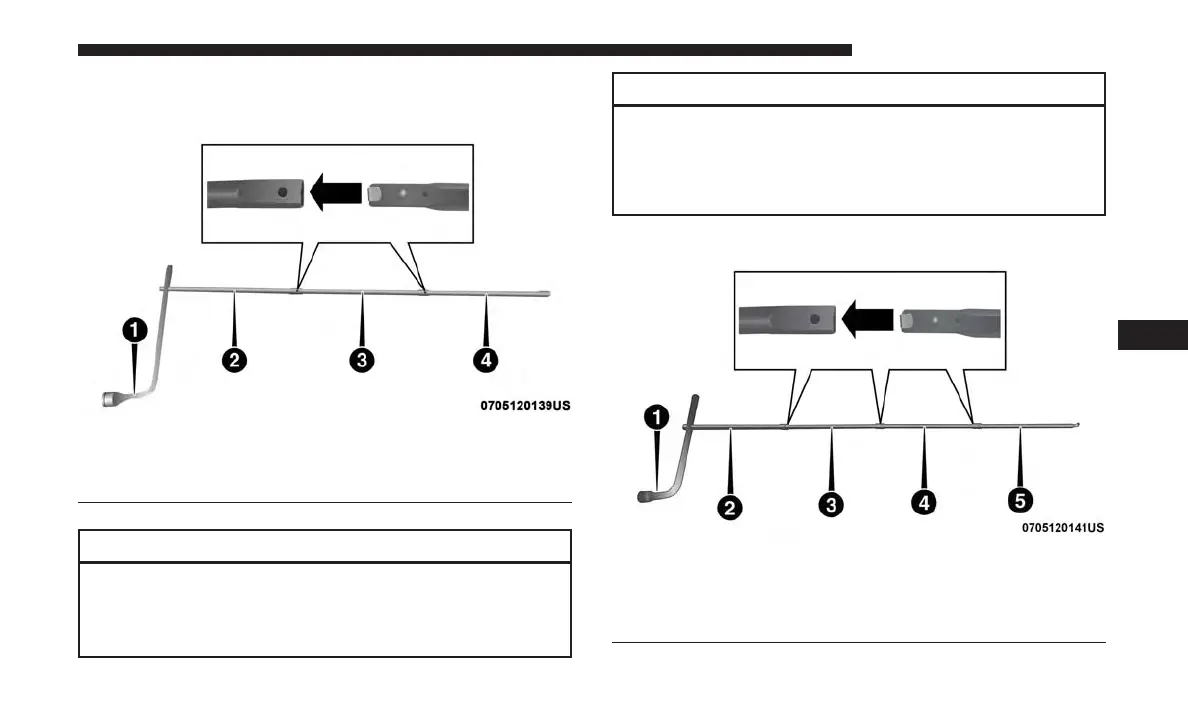

Assembled For Spare Tire Lowering/Raising
CAUTION!
• The lug wrench can only be attached to extension 2.
• When attaching the tool to the winch mechanism be
sure the large flared end opening on extension 4 is
(Continued)
CAUTION! (Continued)
positioned correctly over the winch mechanism ad-
justing nut.
• Damage to the lug wrench, extensions and winch
mechanism may occur from improper tool assembly.
Assembled For Jack Operation
Assembled For Spare Tire Lowering/Raising
1 — Lug Wrench 3 — Extension 3
2 — Extension 2 4 — Extension 4
Assembled For Jack Operation
1 — Lug Wrench 4 — Extension 4
2 — Extension 2 5 — Jack Driver
3 — Extension 3
7
IN CASE OF EMERGENCY 487
