SERVICING AND MAINTENANCE 87
Dune Guard Removal
Removal of the dune guard under the front of the
vehicle is required to remove the oil filter and drain
the oil cooler.
To remove the dune guard:
1. Loosen the front two bolts, but do not remove.

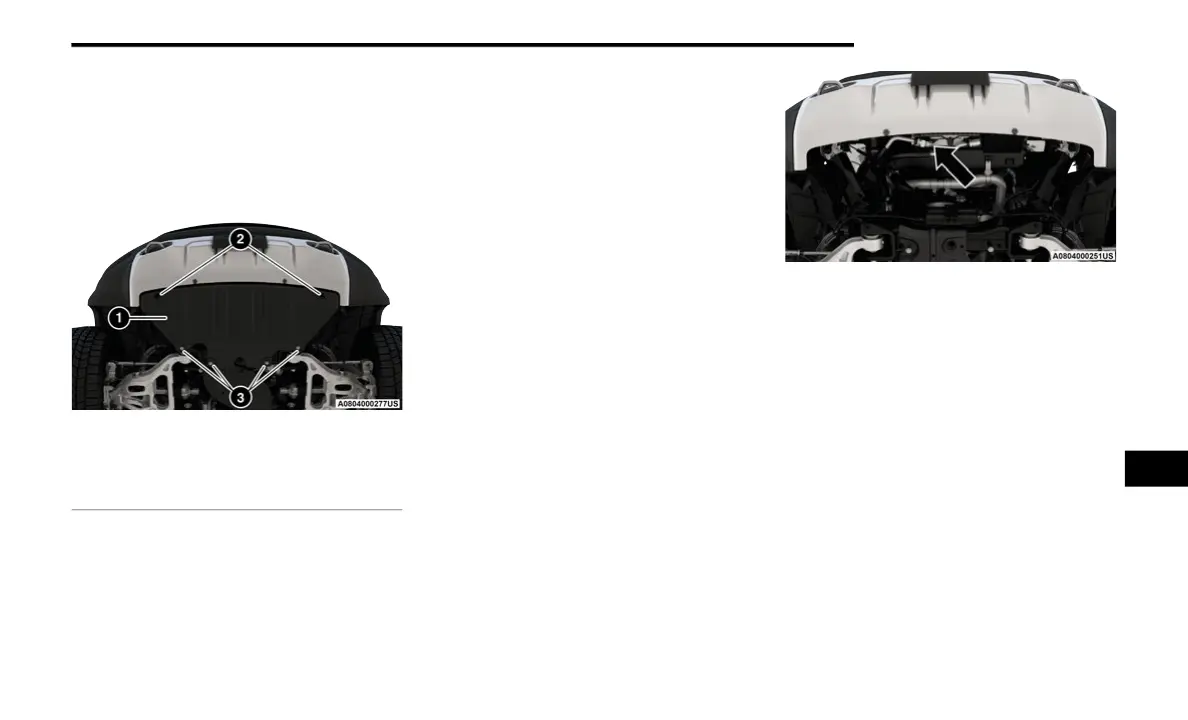

Front Underbody
2. Remove the rear four bolts completely.
3. Slide the dune guard towards the rear of the
vehicle.
NOTE:
The dune guard is heavy. Make sure to remove
with the help of a partner.
Once the dune guard is removed there is access
to the oil cooler drain which is behind the
fascia/bumper.
NOTE:
Engine oil is drained from two locations; the engine
oil pan drain bolt and the engine oil cooler
drain bolt.
Engine Oil Cooler Drain
To reinstall the dune guard:
1. Slide the dune guard back over the two
loosened fasteners at the front.
2. Hand start the rear four fasteners.
3. Once all have been started, tighten the rear
four first, then the front two.
1 — Dune Guard
2 — Front Bolts
3 — Rear Bolts
