BATTERY AND HYDRAULIC OIL FILTER MAINTENANCE
NOTE: Check the battery hold down bracket for tightness. Do not over tighten. Remove any
acid corrosion from the battery terminals and cables with a baking soda and water solution.
Terminals may be coated with a high temperature grease.

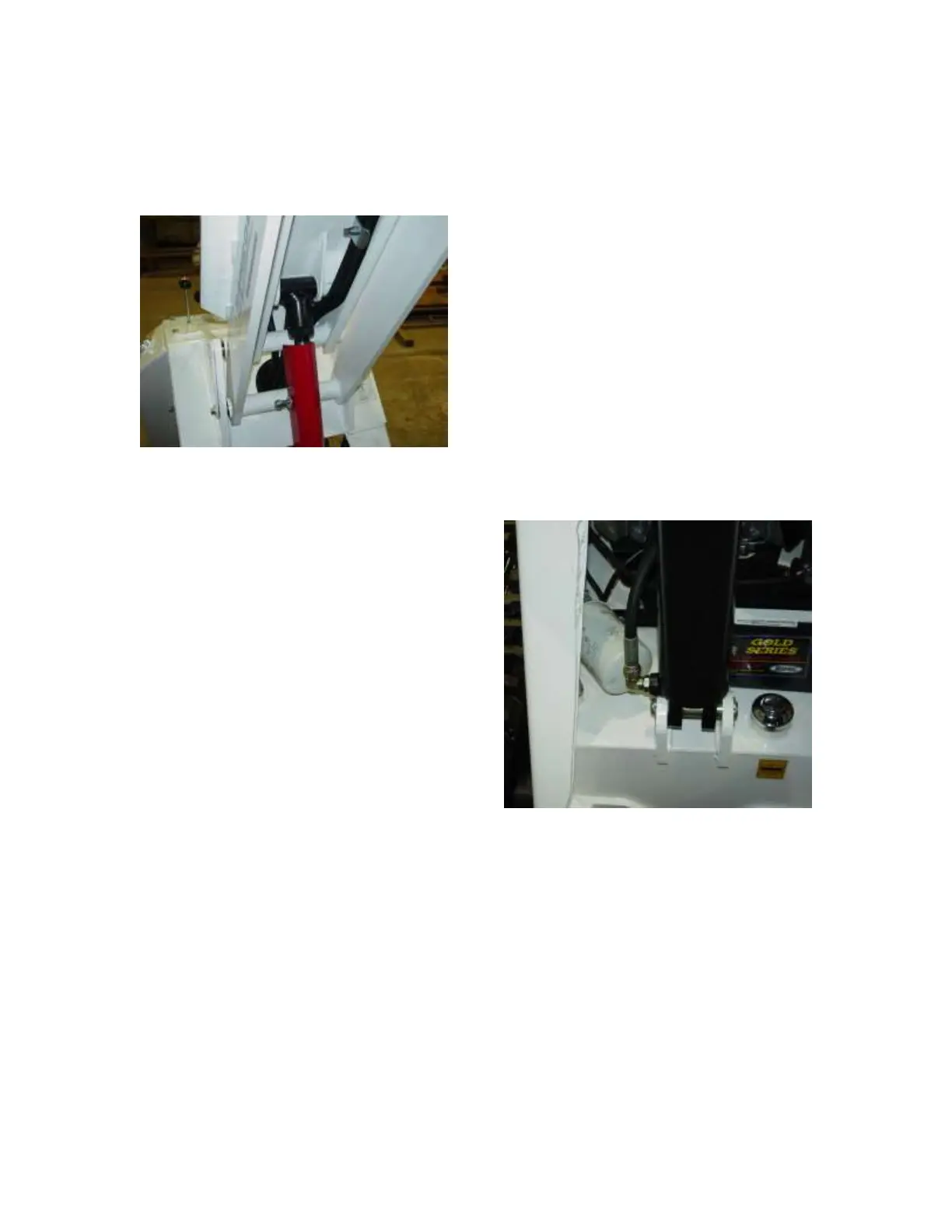

Figure 26: Lift Cylinder Lock
To access the battery, raise the liftarm
and install the lift cylinder lock.
The battery is located behind the oil fill
cap.
The hydraulic oil filter is located across
from the battery.
Figure 27: Hydraulic Filter and Battery
