PERIODIC GREASING DETAILS
Greasing is an important factor in extending the service life of many items on your Mini-
Skid including cylinders and pivot pins.
GREASING PIVOT POINTS
The pivot points may be greased with a general purpose or bearing grease. The pivot
points include: both cylinder cross tubes (the lift and tilt cylinders), all quick attach pivot
points, and the lift and leveling arm pivot points.
The lift cylinder, leveling arm and lift arm pivot points can be reached by raising the
machine lift arms to their highest extent. The machine should be shutoff and the cylinder
lock installed prior to greasing. The cylinder lock is located under the left side of the
leveling arms.
Greasing is recommended on a weekly basis.

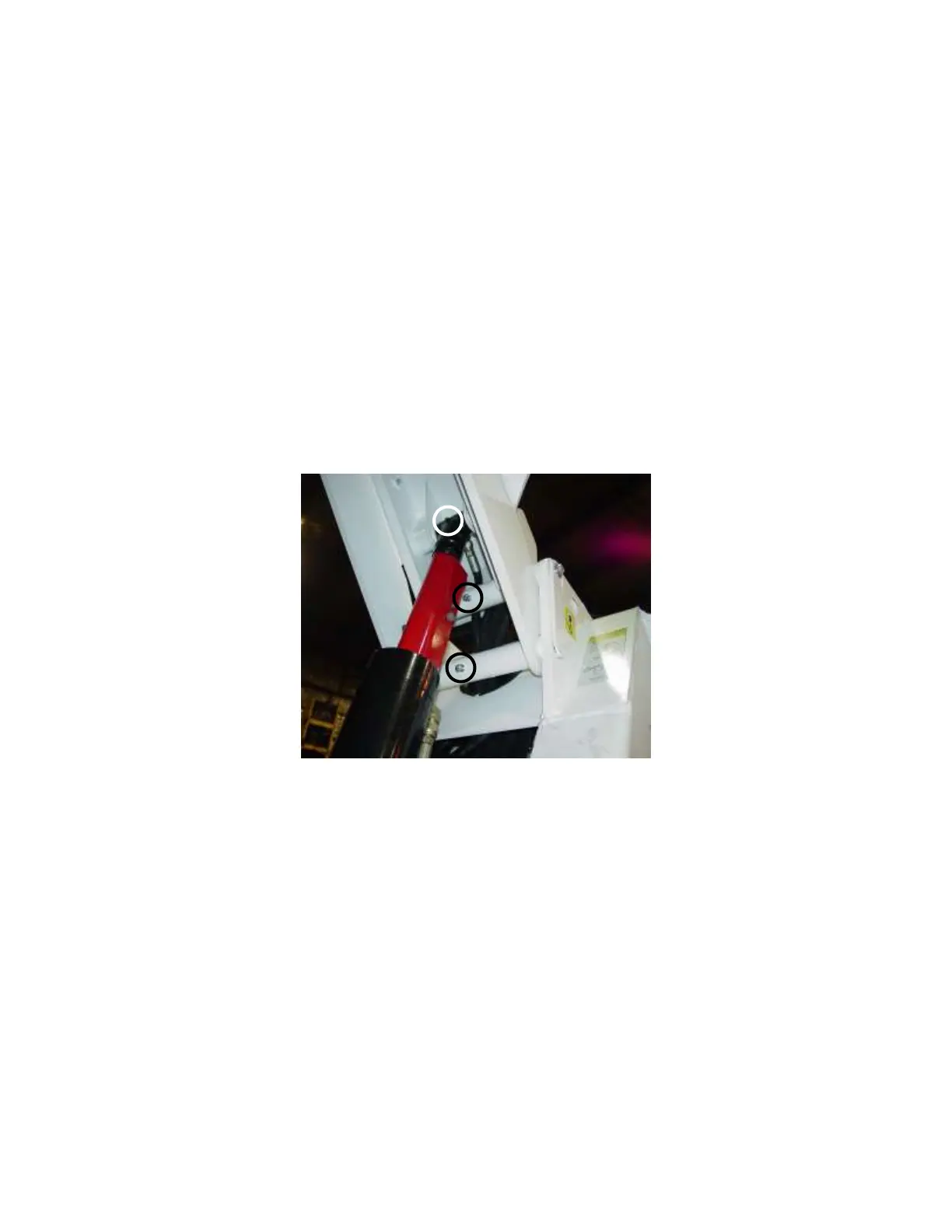

Figure 34: The 3 Grease Points Under the Lift Arms
