IV. MAINTENANCE
HYDRAULIC SYSTEM MAINTENANCE
HYDRAULIC OIL LEVEL CHECK
1. Ensure that the Mini-Skid is standing
level, the lift arms are down and the
tilt cylinder is closed.
2. Remove the oil cap, and check the
level. If oil is apparent, the level is
satisfactory.
3. If necessary add the proper type and
grade of oil.
NOTE: These units are equipped with a low
hydraulic warning indicator. Do not operate if
this indicator is lit.
CHANGING HYDRAULIC OIL
1. The hydraulic oil drain is located on
the front of the machine as seen in
Figure 22.
2. Remove drain plug to drain oil.
3. Replace drain plug and refill reservoir
with clean oil.
4. Start the engine and check for leaks.
CHANGING OIL FILTER
1. To access filter, remove the right side
panel as seen in Figure 23.
2. Remove oil filter housing.
3. Remove and replace old filter.
4. Reassemble oil filter and close the
panel.
NOTE: when changing filter, it is recommended
that a container be placed under the filter to
collect any spilled oil.

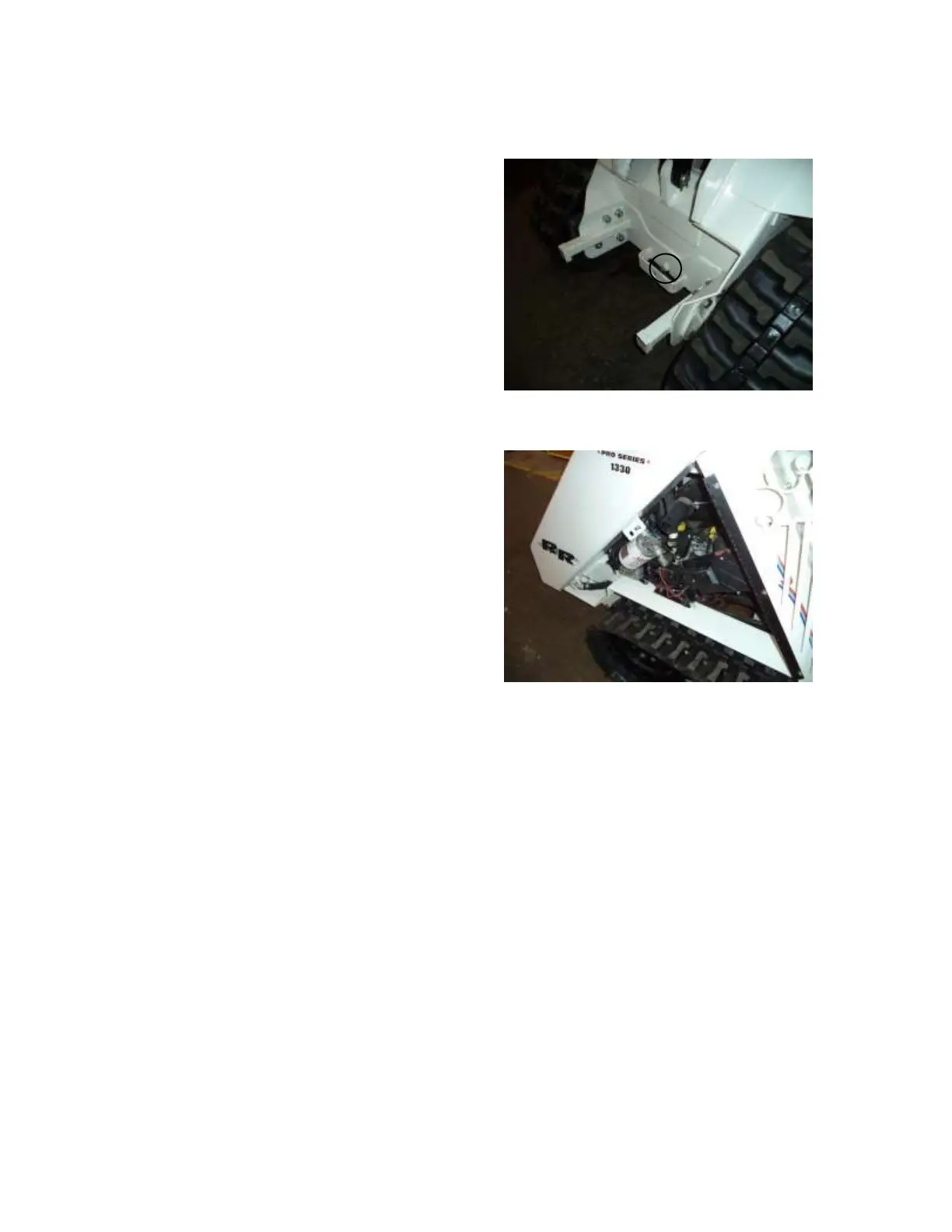

Figure 22: Hydraulic Oil Drain Plug
Figure 23: Hydraulic Oil Filter
