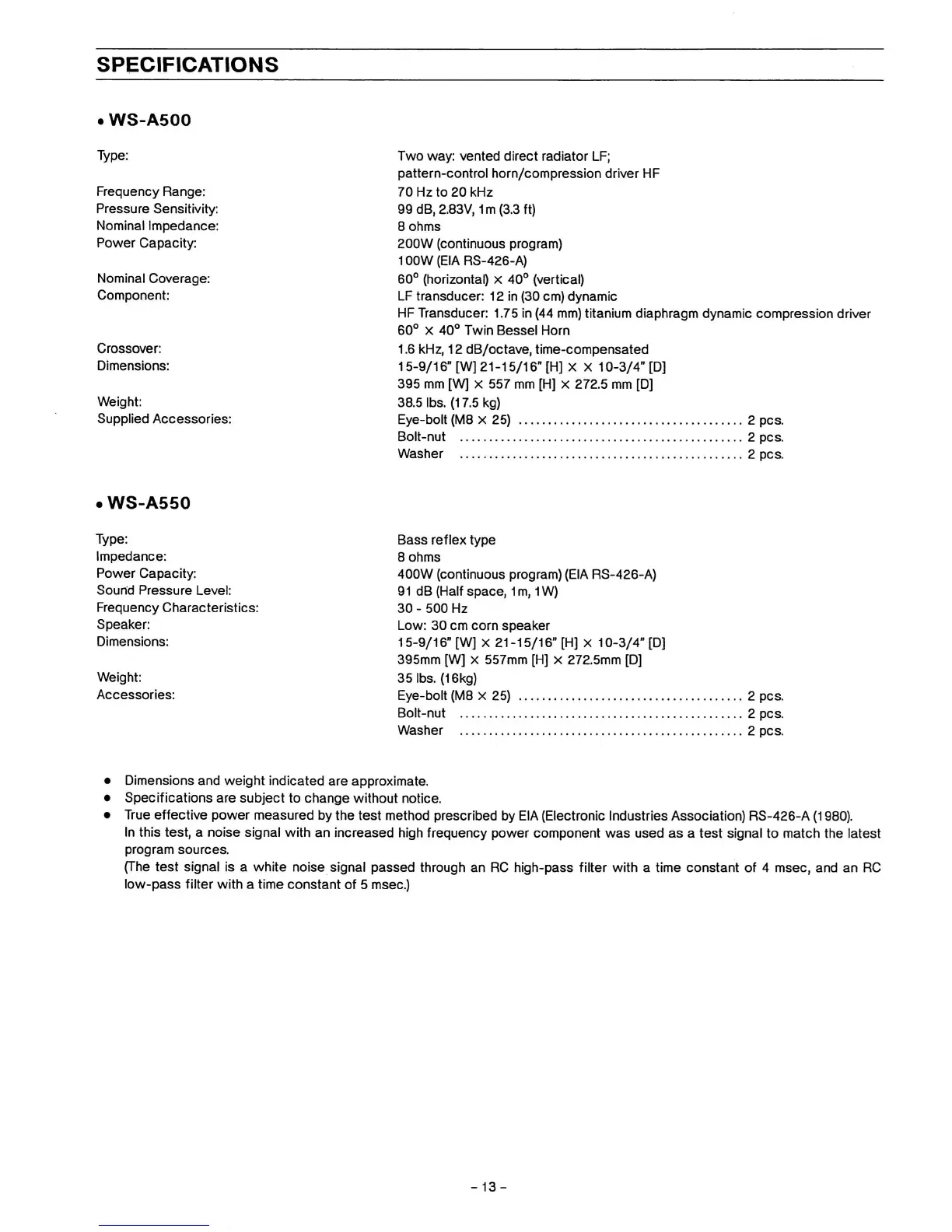

SPECIFICATIONS
• WS-A500
Type:
Frequency Range:
Pressure Sensitivity:
Nominal Impedance:
Power Capacity:
Nominal Coverage:
Component:
Crossover:
Dimensions:
Weight:
Supplied Accessories:
Two way: vented direct radiator LF;
pattern-control horn/compression driver HF
70 Hz to 20 kHz
99
dB,
2.83V,
1m (3.3
ft)
8 ohms
200W (continuous program)
100W(EIARS-426-A)
60° (horizontal) x 40° (vertical)
LF transducer:
12
in (30 cm) dynamic
HF Transducer: 1.75 In (44
mm)
titanium diaphragm dynamic compression driver
60° x 40° Twin Bessel Horn
1.6
kHz,
12
dB/octave, time-compensated
15-9/16"
[W]
21-15/16"
[H] X X 10-3/4" [D]
395 mm [W] X 557 mm [H] X 272.5 mm
[D]
38.5 lbs.
(17.5
kg)
Eye-bolt (M8 X 25) 2
pes.
Bolt-nut 2
pes.
Washer 2
pes.
• WS-A550
Type:
Impedance:
Power Capacity:
Sound Pressure Level:
Frequency Characteristics:
Speaker:
Dimensions:
Weight:
Accessories:
Bass
reflex
type
8 ohms
400W (continuous program) (EIA RS-426-A)
91 dB (Half space, 1m, 1W)
30 - 500 Hz
Low: 30 cm corn speaker
15-9/16"
[W] X
21-15/16"
[H] X 10-3/4" [D]
395mm [W] X 557mm [H] X 272.5mm [D]
35
lbs. (16kg)
Eye-bolt (M8 X 25) 2
pes.
Bolt-nut 2
pes.
Washer 2 pes.
Dimensions and weight indicated are approximate.
Specifications are subject to change without notice.
True effective power measured by the test method prescribed by EIA (Electronic Industries Association) RS-426-A
(1980).
In
this test, a noise signal with an increased high frequency power component was used as a test signal to match the latest
program sources.
(The test signal is a white noise signal passed through an RC high-pass filter with a time constant of 4 msec, and an RC
low-pass filter with a time constant of 5 msec.)
-13-
